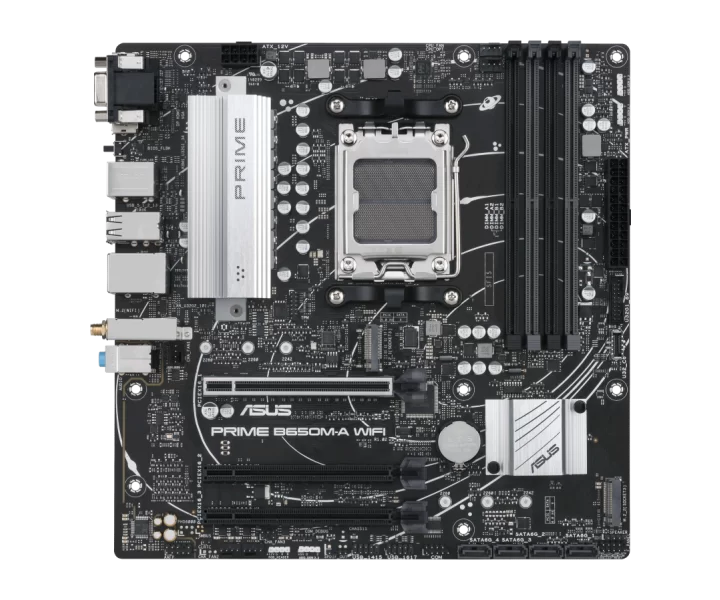

PRIME B650M-A WIFI özellikleri ve fiyatları

PRIME B650M-A WIFI teknik özellikleri

Model kodu

PRIME B650M-A WIFI

İşlemci soketi

AM5

Anakart yonga seti

AMD B650 Chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; Supports up to AMD 170W CPU; * Refer to www.asus.com for CPU support list.; AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO ); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

RAM yuvası sayısı

4

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode); * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode); * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD B650 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

RAID desteği

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet

Wi-Fi

Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMI port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button; 1 x PS/2 Keyboard/Mouse combo port

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x VGA port; 1 x HDMI port***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - Safeslot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x I/O Shield; 1 x Screw Package for M.2 SSD; Documentation; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B650M-A WIFI, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 170W CPU * Refer to www.asus.com for CPU support list. AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD B650 Chipset, Memory: 4 x DIMM, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO ) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x VGA port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). ** Specifications vary by CPU types., Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10., Ethernet: 1 x Realtek 2.5Gb Ethernet, Wireless & Bluetooth: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2, USB: Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Screw Package for M.2 SSD Documentation 1 x User guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
