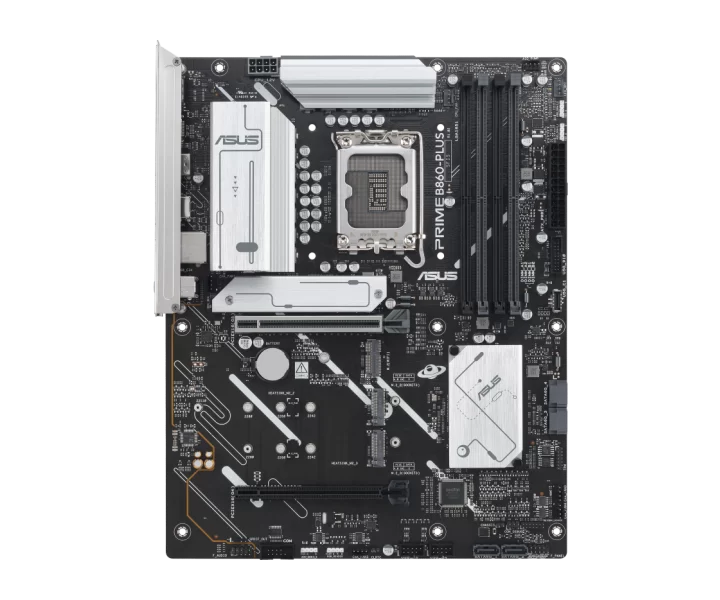

PRIME B860-PLUS özellikleri ve fiyatları

PRIME B860-PLUS teknik özellikleri

Model kodu

PRIME B860-PLUS

İşlemci soketi

LGA1851

Anakart yonga seti

Intel B860 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Support Intel Core Ultra Processors (Series 2) , LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Ultra Processors (Series 2)*; 1 x PCIe 5.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Ultra Processors (Series 2)*; 1 x PCIe 5.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel Core Ultra Processors (Series 2)*; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

RAID desteği

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 6 ports); 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 2 x USB 10Gbps ports (2 x Type-A); 1 x USB 5Gbps port (1 x Type-A); 2x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (1 x USB Type-C); 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

M.2 slot only (Key E, CNVi & PCIe)*; * Wi-Fi module is sold separately.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 2 x USB 10Gbps ports (2 x Type-A); 1 x USB 5Gbps port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 header support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin Front System Panel header; 1 x Thunderbolt (USB4) header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output****; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.; **** Supports max. 4K@120Hz as specified in DisplayPort 1.4.; ***** VGA resolution support depends on processors' or graphic cards' resolution.; ****** While installing the operating system, please ensure that your monitor is; connected to the HDMI port on the back I/O panel or to a discrete graphics card.

BIOS özellikleri

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; -DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; - Pre-mounted I/O shield; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x M.2 rubber package; 2 x Screw packages for M.2 SSD; 1 x Screw package for M.2 Key E; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B860-PLUS, News & Updates: Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates., CPU: Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B860 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port*** 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card., Expansion Slots: Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10., Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately., USB: Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (1 x USB Type-C) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header, Special Features: ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x Quick start guide, Operating System: Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later), Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
