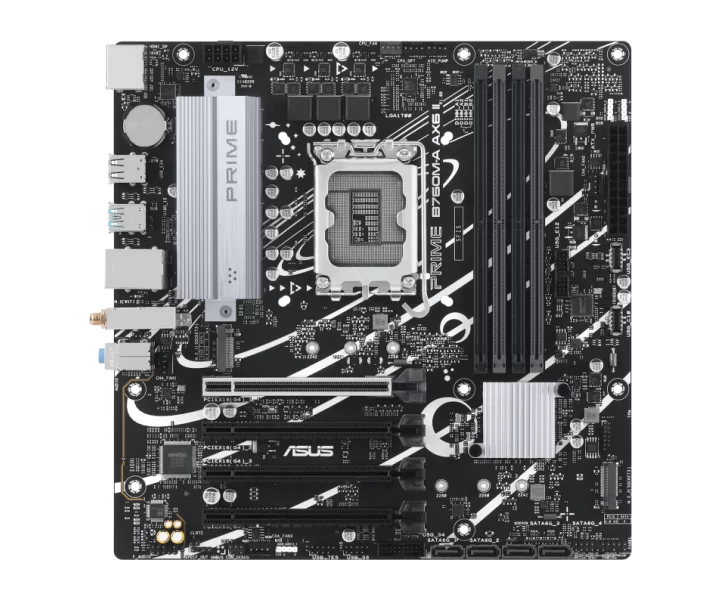

PRIME B760M-A AX6 II özellikleri ve fiyatları

PRIME B760M-A AX6 II teknik özellikleri

Model kodu

PRIME B760M-A AX6 II

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B760 Chipset

Anakart biçimi

Micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14 th & 13 th & 12 th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x16 slot (support x1 mode); Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14 th & 13 th & 12 th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x16 slot (support x1 mode); Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel Core Processors (14 th & 13 th & 12 th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

RAID desteği

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 10 ports); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 5Gbps port (support USB Type-C ); 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Realtek 1Gb Ethernet

Wi-Fi

Wi-Fi 6; Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3; *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI TM port; 1 x Wi-Fi Module; 1 x Realtek 1Gb Ethernet; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 5Gbps port (support USB Type-C ); 2 x USB 2.0 header support 4 additional USB 2.0 ports; Miscellaneous; 3 x Aura Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI TM port***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS EZ DIY; - ProCool; AURA Sync; - Addressable Gen 2 headers

Boyutlar

mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antenna; 1 x I/O Shield; 2 x Screw package for M.2 SSD

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B760M-A AX6 II, News & Updates:, CPU: Intel Socket LGA1700 for Intel Core14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B760 Chipset, Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list., Graphics: 1 x DisplayPort** 1 x HDMI TM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel Core Processors (14 th & 13 th & 12 th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14 th & 13 th & 12 th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10., Ethernet: 1 x Realtek 1Gb Ethernet, Wireless & Bluetooth: Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C ) 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI TM port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C ) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool AURA Sync - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 2 x Screw package for M.2 SSD, Operating System: Windows 11, Windows 10 64-bit, Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
