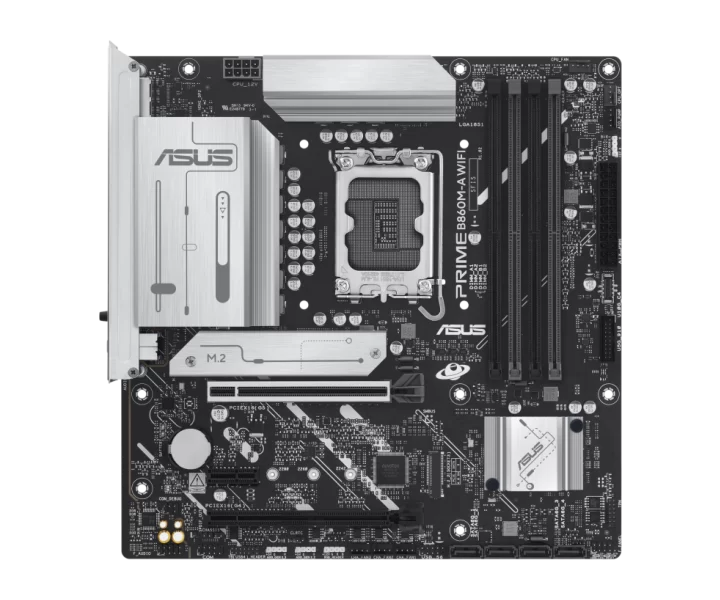

PRIME B860M-A WIFI özellikleri ve fiyatları

PRIME B860M-A WIFI teknik özellikleri

Model kodu

PRIME B860M-A WIFI

İşlemci soketi

LGA1851

Anakart yonga seti

Intel B860 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

Support Intel Core Ultra Processors (Series 2) , LGA1851*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0; *Refer to https://www.asus.com/support/download-center/ for CPU support list.; **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII); *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ .; * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Ultra Processors(series 2); 1 x PCIe 5.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Ultra Processors(series 2); 1 x PCIe 5.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors (Series 2) *; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

RAID desteği

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 1 x USB 10Gbps port (1 x Type-A ); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A)**; Front USB (Total 5 ports); 1 x USB 10Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; *USB Type-C power delivery output: max. 5V/3A; **USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.3**; * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later; ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A ); 2 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front System Panel header; 1 x Thunderbolt (USB4 ) header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

2 x DisplayPort**; 1 x HDMI port***; 1 x USB 20Gbps port (USB Type-C ) supports DisplayPort video output**; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.; **** Supports max. 4K@120Hz as specified in DisplayPort 1.4.; ***** VGA resolution support depends on processors' or graphic cards' resolution.; ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

BIOS özellikleri

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; - Pre-mounted I/O shield; Aura Sync; - Aura RGB header; - Addressable Gen2 headers

Boyutlar

micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 1 x M.2 rubber package; 1 x Screw package for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME B860M-A WIFI, News & Updates: Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check anddownload the latest updates., CPU: Support Intel Core Ultra Processors (Series 2) , LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *Refer to https://www.asus.com/support/download-center/ for CPU support list. **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B860 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 2 x DisplayPort** 1 x HDMI port*** 1 x USB 20Gbps port (USB Type-C ) supports DisplayPort video output** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card., Expansion Slots: Intel Core Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Multi-GPU Support:, Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10., Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports *USB Type-C power delivery output: max. 5V/3A **USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth., Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4 ) header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later), Form Factor: micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
