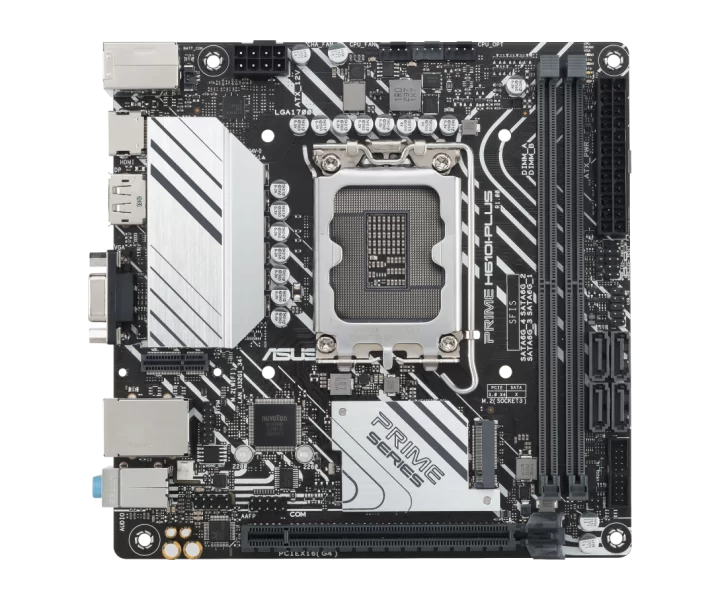

PRIME H610I-PLUS özellikleri ve fiyatları

PRIME H610I-PLUS teknik özellikleri

Model kodu

PRIME H610I-PLUS

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H610 Chipset

Anakart biçimi

Mini ITX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14th &; 13th & 12th Gen) 1 x PCIe 4.0 x16 slot

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14th &; 13th & 12th Gen) 1 x PCIe 4.0 x16 slot

M.2 uyumluluğu ve şerit paylaşımı

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports

Depolama için M.2 yuvası sayısı

1

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 4 ports); 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 4 ports); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 1Gb Ethernet; ASUS LANGuard

Wi-Fi

M.2 slot only (Key E, CNVi & PCIe)*; *Wi-Fi module is sold separately.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMI port; 1 x V-M.2 slot (Key E); 1 x Intel 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x Mono-out header(with Amp IC); 1 x SMBUS header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin Chassis Fan header

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x VGA port; 1 x HDMI port***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design

Boyutlar

Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )

Kutu içeriği

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD 1 x Vertical M.2 Key E bracket set Documentation 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME H610I-PLUS, News & Updates:, CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel H610 Chipset, Memory: 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x VGA port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot, Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports, Ethernet: 1 x Intel 1Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately., USB: Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design, Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD 1 x Vertical M.2 Key E bracket set Documentation 1 x User guide, Operating System: Windows 11 64-bit, Windows 10 64-bit, Form Factor: Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
