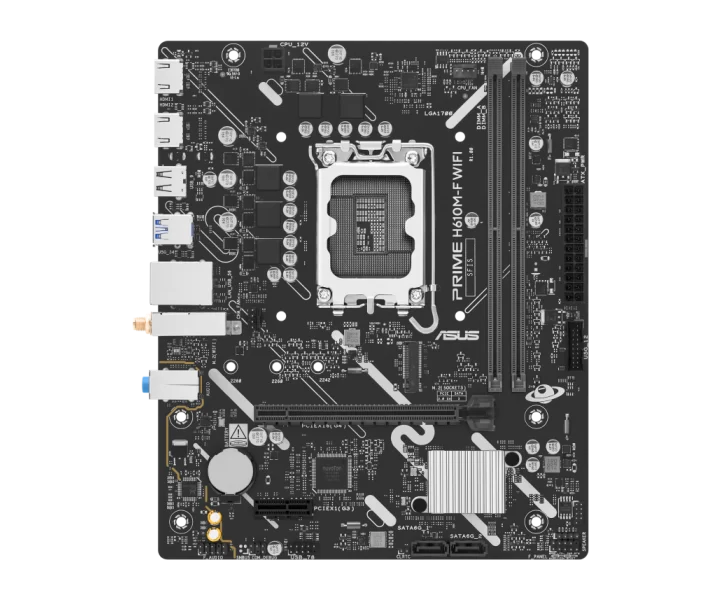

PRIME H610M-F WIFI özellikleri ve fiyatları

PRIME H610M-F WIFI teknik özellikleri

Model kodu

PRIME H610M-F WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel H610 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14 th & 13 th GenProcessors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors*; Supports up to Intel 65W CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.; ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14 th & 13 th & 12 th Gen); 1 x PCIe 4.0 x16 slot; Intel H610 Chipset; 1 x PCIe 3.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14 th & 13 th & 12 th Gen); 1 x PCIe 4.0 x16 slot; Intel H610 Chipset; 1 x PCIe 3.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports; Intel H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); 2 x SATA 6Gb/s ports

USB bağlantısı

Rear USB (Total 5 ports); 2 x USB 5Gbps ports (2 x Type-A); 3 x USB 2.0 ports (3 x Type-A); Front USB (Total 4 ports); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Realtek 1Gb Ethernet

Wi-Fi

Wi-Fi 6; Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3*; *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 5Gbps ports (2 x Type-A); 3 x USB 2.0 ports (3 x Type-A); 2 x HDMI TM port; 1 x Wi-Fi module; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power Related; 1 x 24-pin Main Power connector; 1 x 4-pin +12V CPU Power connector; Storage Related; 1 x M.2 slot (Key M); 2 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x Front Panel Audio header (F_AUDIO); 1 x Speaker header; 1 x 10-1 pin Front Panel System header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 4-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

2 x HDMI TM port**; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports 4K@30Hz as specified in HDMI 1.4.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core; - Stainless-steel back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; - Q-LED Core; ASUS Thermal Solution; - Aluminum heatsink design

Boyutlar

micro-ATX Form Factor; 8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antenna; 1 x I/O shield; 1 x M.2 anchor; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME H610M-F WIFI, News & Updates: Please visit our GLOBAL website to checkand download the latest updates., CPU: Intel Socket LGA1700 for Intel Core 14 th & 13 th GenProcessors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel H610 Chipset, Memory: 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 2 x HDMI TM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@30Hz as specified in HDMI 1.4., Expansion Slots: Intel Core Processors (14 th & 13 th & 12 th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports, Ethernet: 1 x Realtek 1Gb Ethernet, Wireless & Bluetooth: Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 5 ports) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 2 x HDMI TM port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V CPU Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin Front Panel System header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design, Software Features: ASUS Exclusive Software Armoury Crate ASUS DriverHub - ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x M.2 anchor Documentation 1 x Quick start guide, Operating System: Windows 11 , Windows 10 64-bit, Form Factor: micro-ATX Form Factor 8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )
