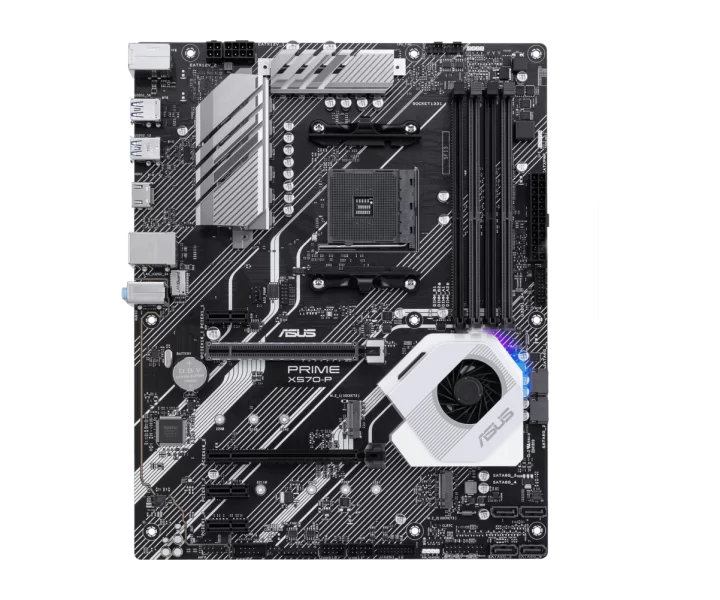

PRIME X570-P özellikleri ve fiyatları

PRIME X570-P teknik özellikleri

Model kodu

PRIME X570-P

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

* Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors,* Due to CPU limitation, CPU cores supported varies by processors.

Desteklenen bellek yapılandırmaları

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory capacity supported vary depending on the CPU you installed.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors , AMD Ryzen TM 3000 G-Series / 2000 G-Series Processors ,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), AMD X570 chipset ,1 x PCIe 4.0 x16 (max at x4 mode),3 x PCIe 4.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors , AMD Ryzen TM 3000 G-Series / 2000 G-Series Processors ,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), AMD X570 chipset ,1 x PCIe 4.0 x16 (max at x4 mode),3 x PCIe 4.0 x1

M.2 uyumluluğu ve şerit paylaşımı

AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : ,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD X570 chipset : ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,6 x SATA 6Gb/s port(s),Support Raid 0, 1, 10

RAID desteği

AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : ,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD X570 chipset : ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,6 x SATA 6Gb/s port(s),Support Raid 0, 1, 10

Ses çıkışı

Realtek S1200A8-Channel High Definition Audio CODEC *,- Premium Japanese-made audio capacitors,- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Front panel audio connector (AAFP), Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Ses yongası

Realtek S1200A8-Channel High Definition Audio CODEC *,- Premium Japanese-made audio capacitors,- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Front panel audio connector (AAFP), Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Ses kanalı yapılandırması

8 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Diğer anakart özellikleri

ASUS 5X Protection III :; - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM - Digital power design with Dr. MOS,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS SafeSlot - Protect your graphics card Investment, ASUS OptiMem： ,- Improved DDR4 Stability, ASUS EPU : ,- EPU, AURA : ,- Aura RGB Strip Headers,- Aura Control,- Addressable Gen 2 Header, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Armoury Crate, ASUS Quiet Thermal Solution :,- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink,- ASUS Fan Xpert 4, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM

Boyutlar

ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD,1 x Extension cable for Addressable LED

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME X570-P, CPU: * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors,* Due to CPU limitation, CPU cores supported varies by processors., Chipset: AMD X570, Memory: * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory capacity supported vary depending on the CPU you installed., Graphic: Integrated Graphics in AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors,VGA output support : HDMI port,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz, Multi-GPU Support: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors ,Supports AMD 2-Way CrossFireX Technology, Expansion Slots: AMD Ryzen 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors , AMD Ryzen TM 3000 G-Series / 2000 G-Series Processors ,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), AMD X570 chipset ,1 x PCIe 4.0 x16 (max at x4 mode),3 x PCIe 4.0 x1, Storage: AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : ,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD X570 chipset : ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,6 x SATA 6Gb/s port(s),Support Raid 0, 1, 10, LAN: Realtek RTL8111H,ASUS LAN Guard, Audio: Realtek S1200A8-Channel High Definition Audio CODEC *,- Premium Japanese-made audio capacitors,- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Front panel audio connector (AAFP), Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output., USB Ports: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : ,* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen 5000 Series/ 3000 Series Desktop Processors.,2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *),2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A),2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A),4 x USB 3.2 Gen 1 port(s) (4 at mid-board), AMD X570 chipset : ,5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board), Special Features: ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM - Digital power design with Dr. MOS,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection, ASUS SafeSlot - Protect your graphics card Investment, ASUS OptiMem： ,- Improved DDR4 Stability, ASUS EPU : ,- EPU, AURA : ,- Aura RGB Strip Headers,- Aura Control,- Addressable Gen 2 Header, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Armoury Crate, ASUS Quiet Thermal Solution :,- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink,- ASUS Fan Xpert 4, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM, Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s),2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A,4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A), Internal I/O Ports: 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports,2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s),2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),1 x SPI TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),3 x Chassis Fan connector(s) (3 x 4-pin),1 x PCH_FAN (1 x 4-pin),1 x AIO_PUMP connector (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s), Accessories: 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD,1 x Extension cable for Addressable LED, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information, Manageability: WOL by PME, PXE,WOL by PME, PXE, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
