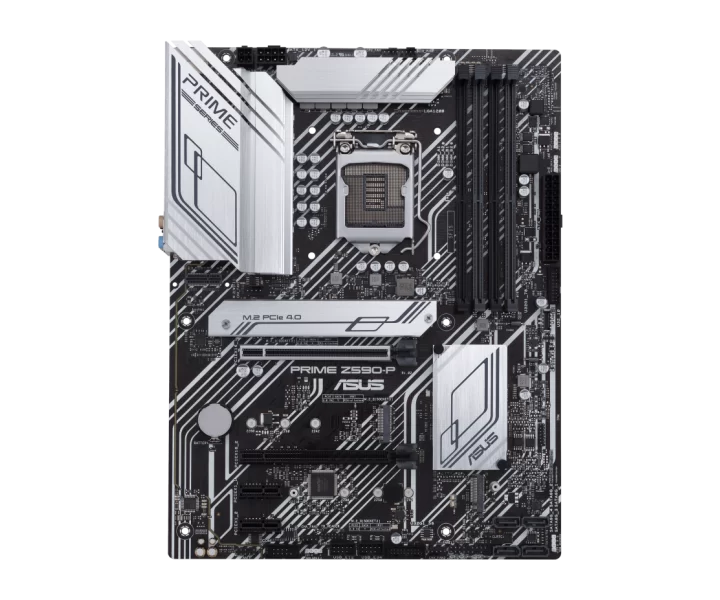

PRIME Z590-P özellikleri ve fiyatları

PRIME Z590-P teknik özellikleri

Model kodu

PRIME Z590-P

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z590 Chipset

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.; Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors*; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.; 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function.; Intel 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes; - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes; Intel Z590 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots; * Supports PCIe bandwidth bifurcation for RAID on CPU function.

PCIe şerit paylaşımı ve işlemci koşulları

Intel 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function.; Intel 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes; - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes; Intel Z590 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots; * Supports PCIe bandwidth bifurcation for RAID on CPU function.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used., Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports, Intel 11th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110, - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs, Intel Z590 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*, M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots., To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology., * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.

RAID desteği

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.; Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.; Rear USB (Total 6 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 9 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports*; * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet

Wi-Fi

V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.; V-M.2 slot only (Key E, CNVi & PCIe)*; * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.

Ses çıkışı

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers; Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium Japanese audio capacitors; - Dedicated audio PCB layers

Ses yongası

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x V-M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x PS/2 Keyboard/Mouse combo port

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 2 x AURA Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-5pin System Panel header; 1 x Thunderbolt header

Fan ve pompa bağlantıları

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort 1.4** 1 x HDMI 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.; 1 x DisplayPort 1.4**; 1 x HDMI 1.4 / 2.0***; * Graphics specifications may vary between CPU types.; ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.; *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

BIOS özellikleri

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers; ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; AURA Sync; - AURA RGB headers; - Addressable Gen 2 RGB headers

Boyutlar

ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ); ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

Kutu içeriği

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User manual; Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x I/O Shield; 1 x M.2 Rubber Package; 2 x M.2 SSD screw packages; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME Z590-P, CPU: Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel Z590 Chipset, Memory: 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Graphics: 1 x DisplayPort 1.4** 1 x HDMI 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. 1 x DisplayPort 1.4** 1 x HDMI 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates., Expansion Slots: Intel 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. Intel 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both, CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used., Ethernet: 1 x Realtek 2.5Gb Ethernet, Wireless & Bluetooth: V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately., USB: Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth., Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers, Software Features: ASUS Exclusive Software Armoury Crate - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Exclusive Software Armoury Crate - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User manual Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
