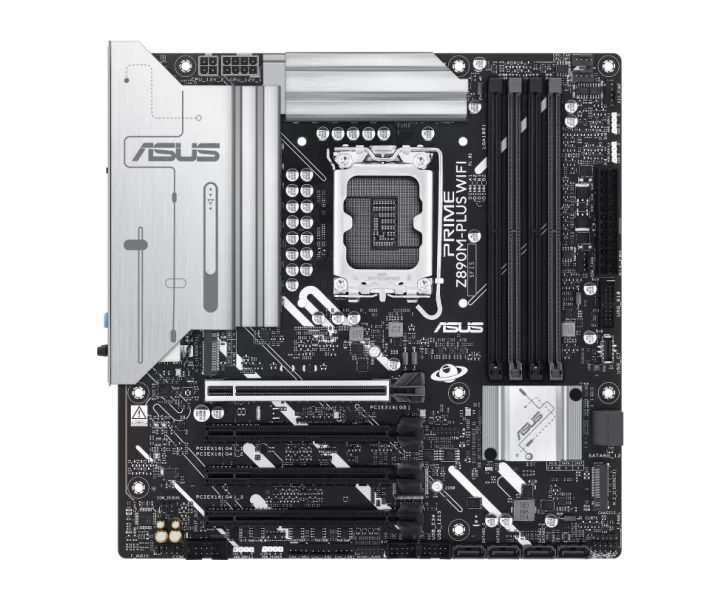

PRIME Z890M-PLUS WIFI özellikleri ve fiyatları

PRIME Z890M-PLUS WIFI teknik özellikleri

Model kodu

PRIME Z890M-PLUS WIFI

İşlemci soketi

LGA1851

Anakart yonga seti

Intel Z890 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Supports Intel Core Ultra Processors(Series 2), LGA1851*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile III(AEMPIII); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.; ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Ultra Processors (Series 2)*; 1 x PCIe 5.0 x16 slot; Intel Z890 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x16 slots (support x1 mode); * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Ultra Processors (Series 2)*; 1 x PCIe 5.0 x16 slot; Intel Z890 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x16 slots (support x1 mode); * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*; Intel Core Ultra Processors (Series 2)*; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); Intel Z890 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 6 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

RAID desteği

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 1x USB 10Gbps port (1 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A) **; Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports**; * USB Type-C power delivery output: max. 5V/3A; ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth v5.4***; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.; For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 1x USB 10Gbps port (1 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet; 3 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; 1 x 4-pin +12V CPU Power connector; Storage related; 3 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin Front Panel System header; 1 x Thunderbolt (USB4 ) header

Fan ve pompa bağlantıları

Fan and cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; 1 x 4-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; 1 x USB 20Gbps port (USB Type-C ) supports DisplayPort video output****; *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; **Supports max. 4K@60Hz as specified in DisplayPort 1.4.; ***Supports 4K@60Hz as specified in HDMI 2.1.; ****Supports max. 4K@120Hz as specified in DisplayPort 1.4.; ***** VGA resolution support depends on processors' or graphic cards' resolution.; ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

BIOS özellikleri

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 3 x Screw packages for M.2 SSD; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: PRIME Z890M-PLUS WIFI, News & Updates: Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates., CPU: Supports Intel Core Ultra Processors(Series 2), LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel Z890 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port*** 1 x USB 20Gbps port (USB Type-C ) supports DisplayPort video output**** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card., Expansion Slots: Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slots (support x1 mode) * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5., Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) ** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth., Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt (USB4 ) header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost (Intel K-series Processors only), BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 3 x Screw packages for M.2 SSD Documentation 1 x Quick start guide, Operating System: Windows 11 (22H2 & later), Form Factor: mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
