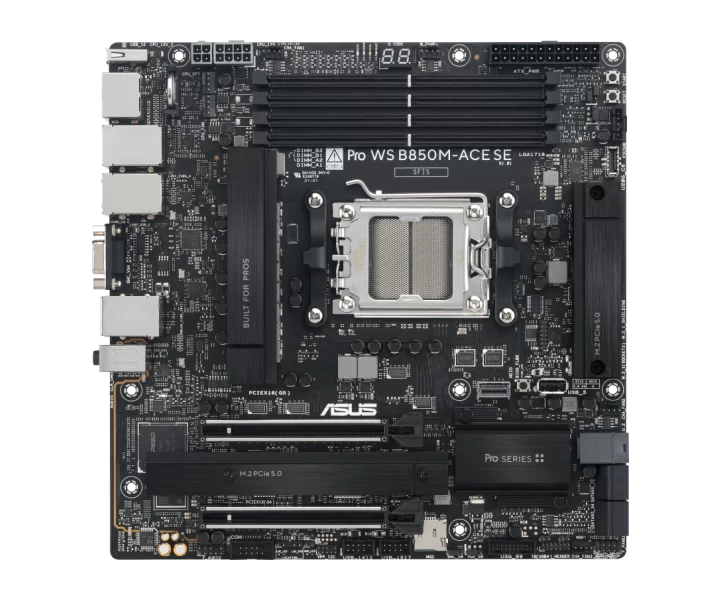

Pro WS B850M-ACE SE özellikleri ve fiyatları

Pro WS B850M-ACE SE teknik özellikleri

Model kodu

Pro WS B850M-ACE SE

İşlemci soketi

AM5

Anakart yonga seti

AMD B850 Chipset

Anakart biçimi

micro-ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Supports up to 5600MT/s with AMD EPYC 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory; configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based; on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports; On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to; https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to; https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots, 1 x MCIO connector, 1 x U.2 connector and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); MCIO connector (supports PCIe 5.0 x4 mode)**; AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode); MCIO connector (supports PCIe 4.0 x4/x2 mode)**; AMD B850 Chipset; U.2_1 connector supports PCIe 3.0 x4 mode via an SFF-8643 adapter cable. The cable is purchased separately.; 4 x SATA 6Gb/s ports***; * Specifications vary by CPU types.; ** MCIO connector shares bandwidth with M.2_2 slot. When MCIO connector is operating, M.2_2 slot will be disabled.; *** U.2 shares bandwidth with SATA ports; Enable U.2 in BIOS menu to support a NVMe storage device, and SATA ports will be disabled.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 7 ports); 5 x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C); 2 x USB 2.0 port(s) (2 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps (supports USB Type-C); 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports; 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A Onboard USB port(s); 1 x USB 2.0 port (1 x Type-A) for BIOS FlashBack

Kablolu ağ bağlantısı

1 x Realtek 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; 1 x Realtek 1Gb Ethernet*; ASUS LANGuard; * This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.; ** The audio codec will be suspended once an AMD EPYC 4005 Series Processor is installed.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

3 x USB 10Gbps port(s) (3 x Type-A); 1 x USB 10Gbps port(s) (USB Type-C); 1 x USB 10Gbps port(s) (USB Type-C) supports DisplayPort video output; 2 x USB 2.0 port(s) (2 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMI port; 1 x Realtek 10Gb Ethernet port; 1 x Intel 2.5Gb Ethernet ports; 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600); 2 x Audio jacks; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 3 x 4-pin Chassis Fan header(s); 1 x W_PUMP+ header(s); Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; 1 x 4-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x U.2 connector; 1 x MCIO connector; USB; 1 x USB 20Gbps connector (support(s) USB Type-C ); 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports; 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports; 1 x USB 2.0 port (1 x Type-A); Miscellaneous; 1 x BIOS FlashBack button; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Reset button; 1 x Front Panel Audio header (F_AUDIO); 1 x SPI TPM header (14-1 pin); 1 x Start button; 1 x 10-1 pin Front Panel System header; 1 x RTC Battery header; 1 x Thermal Sensor header; 1 x Thunderbolt (USB4) header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 3 x 4-pin Chassis Fan header(s); 1 x W_PUMP+ header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; 1 x 4-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x VGA port from AST2600; 1 x HDMI port***; 1 x USB 10Gbps port (USB Type-C) supports; DisplayPort video output**; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

512 Mb Flash ROM, UEFI AMI BIOS(text-based)

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Code; - Q-Connector; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - Aluminum heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Clear CMOS button; - Dual DIMM clips; - ProCool II; - SafeSlot; - SafeDIMM; Bespoke Motherboard Design & Business Focused Features; - 24/7 reliability; - Overcurrent protection

Boyutlar

micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x I/O shield; 1 x Q-connector; 1 x M.2 rubber package(s); Documentation; 1 x ACC Express activation key card; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: Pro WS B850M-ACE SE, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list., Chipset: AMD B850 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Supports up to 5600MT/s with AMD EPYC 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x VGA port from AST2600 1 x HDMI port*** 1 x USB 10Gbps port (USB Type-C) supports DisplayPort video output** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 2 x M.2 slots, 1 x MCIO connector, 1 x U.2 connector and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) MCIO connector (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) MCIO connector (supports PCIe 4.0 x4/x2 mode)** AMD B850 Chipset U.2_1 connector supports PCIe 3.0 x4 mode via an SFF-8643 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports*** * Specifications vary by CPU types. ** MCIO connector shares bandwidth with M.2_2 slot. When MCIO connector is operating, M.2_2 slot will be disabled. *** U.2 shares bandwidth with SATA ports; Enable U.2 in BIOS menu to support a NVMe storage device, and SATA ports will be disabled., RAID Support: AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types., Ethernet: 1 x Realtek 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet* ASUS LANGuard * This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported., USB: Rear USB (Total 7 ports) 5 x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A Onboard USB port(s) 1 x USB 2.0 port (1 x Type-A) for BIOS FlashBack, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** The audio codec will be suspended once an AMD EPYC 4005 Series Processor is installed., Back Panel I/O Ports: 3 x USB 10Gbps port(s) (3 x Type-A) 1 x USB 10Gbps port(s) (USB Type-C) 1 x USB 10Gbps port(s) (USB Type-C) supports DisplayPort video output 2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Realtek 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet ports 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 2 x Audio jacks 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 3 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x U.2 connector 1 x MCIO connector USB 1 x USB 20Gbps connector (support(s) USB Type-C ) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports 1 x USB 2.0 port (1 x Type-A) Miscellaneous 1 x BIOS FlashBack button 1 x Chassis Intrusion header 1 x COM Port header 1 x Reset button 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x RTC Battery header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - Dual DIMM clips - ProCool II - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection, Software Features: ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS DriverHub - ASUS CPU-Z TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/., Remote Management Features: IT Management software supported - ASUS Control Center Express(ACCE) BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x Message LED header 1 x microSD card socket 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VPP_I2C header BMC LED Design - 1 x BMC LED - 1 x Message LED - 1 x Location LED, BIOS: 512 Mb Flash ROM, UEFI AMI BIOS(text-based), Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Q-connector 1 x M.2 rubber package(s) Documentation 1 x ACC Express activation key card 1 x Quick start guide, Operating System: Windows 11, Windows 10 64-bit (with AMD Ryzen Desktop Processors), Form Factor: micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
