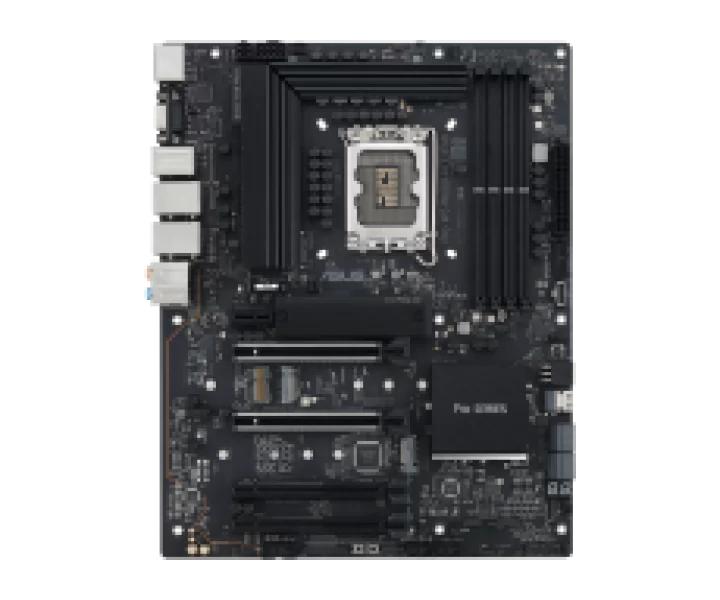

Pro WS W680-ACE IPMI özellikleri ve fiyatları

Pro WS W680-ACE IPMI teknik özellikleri

Model kodu

Pro WS W680-ACE IPMI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel W680 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 14 th 13 th & 12 th Gen Processors*; - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode); Intel W680 Chipset; - 2 x PCIe 3.0 x16 slots (supports x4 mode); - 1 x PCIe 3.0 x1 slot; * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).

PCIe şerit paylaşımı ve işlemci koşulları

Intel 14 th 13 th & 12 th Gen Processors*; - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode); Intel W680 Chipset; - 2 x PCIe 3.0 x16 slots (supports x4 mode); - 1 x PCIe 3.0 x1 slot; * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*; Intel 14 th 13 th & 12 th Gen Processors; - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel W680 Chipset**; - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); - 4 x SATA 6Gb/s ports; - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)***; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.; ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.; *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.

RAID desteği

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C ); - 4 x USB 3.2 Gen 1 ports (4 x Type-A); - 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ); - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; - 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

2 x Intel 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

M.2 slot only (Key E, CNVi & PCIe)*; *Wi-Fi module is sold separately.

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; - Unique de-pop circuit

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C ); -4 x USB 3.2 Gen 1 ports (4 x Type-A); -2 x USB 2.0 ports (2 x Type-A); -1 x DisplayPort; -1 x HDMI port; -1 x VGA port; -2 x Intel 2.5Gb Ethernet ports; -5 x Audio jacks; -1 x BIOS FlashbackTM button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin W_PUMP+ header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 1 x 6-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x SlimSAS port; USB; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 1 x LPT header; 1 x T-sensor; 1 x Clear CMOS header; 1 x COM Port header; 1 x BMC Header; 1 x Front Panel Audio header (AAFP); 1 x Start button; 1 x Flexkey button; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x M.2 slot (Key E); 1 x LPT_P80 Switch; 1 x Thunderbolt header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin W_PUMP+ header; 3 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 1 x 6-pin PCIe Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; 1 x VGA port; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; **Supports max. 8K@60Hz as specified in DisplayPort 1.4.; ***Supports 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-Code; - M.2 Q-Latch; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - CPU Socket lever protector; - SafeDIMM; - SafeSlot; - BIOS FlashBack button; - BIOS FlashBack LED; Bespoke Motherboard Design & Business Focused Feature s; - 24/7 Reliability

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x Q-connector; 1 x M.2 Rubber Packages; 2 x Screw package for M.2 SSD; 1 x Screw package for M.2 Key E; 1 x I/O Shield; IPMI Expansion Card and related accessories; 1 x IPMI expansion card; 1 x BMC cable; 1 x Power On/Off cable; 1 x Reset cable; 1 x USB 2.0 cable; 1 x IPMI Expansion Card user guide; Documentation; 1 x User guide; 1 x ACC Express Activation Key Card

Üreticinin ayrıntılı teknik bilgileri

Model: Pro WS W680-ACE IPMI, News & Updates:, CPU: Intel Socket LGA1700 for Intel Core 14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list., Chipset: Intel W680 Chipset, Memory: 4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x DisplayPort** 1 x HDMI port*** 1 x VGA port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel 14 th 13 th & 12 th Gen Processors* - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/)., Storage: Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 14 th 13 th & 12 th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*** * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately., Ethernet: 2 x Intel 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately., USB: Rear USB (Total 8 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C ) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit, Back Panel I/O Ports: -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C ) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -2 x USB 2.0 ports (2 x Type-A) -1 x DisplayPort -1 x HDMI port -1 x VGA port -2 x Intel 2.5Gb Ethernet ports -5 x Audio jacks -1 x BIOS FlashbackTM button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack button - BIOS FlashBack LED Bespoke Motherboard Design & Business Focused Feature s - 24/7 Reliability, Software Features: Intel vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey Intel vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E 1 x I/O Shield IPMI Expansion Card and related accessories 1 x IPMI expansion card 1 x BMC cable 1 x Power On/Off cable 1 x Reset cable 1 x USB 2.0 cable 1 x IPMI Expansion Card user guide Documentation 1 x User guide 1 x ACC Express Activation Key Card, Operating System: Windows 11, Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
