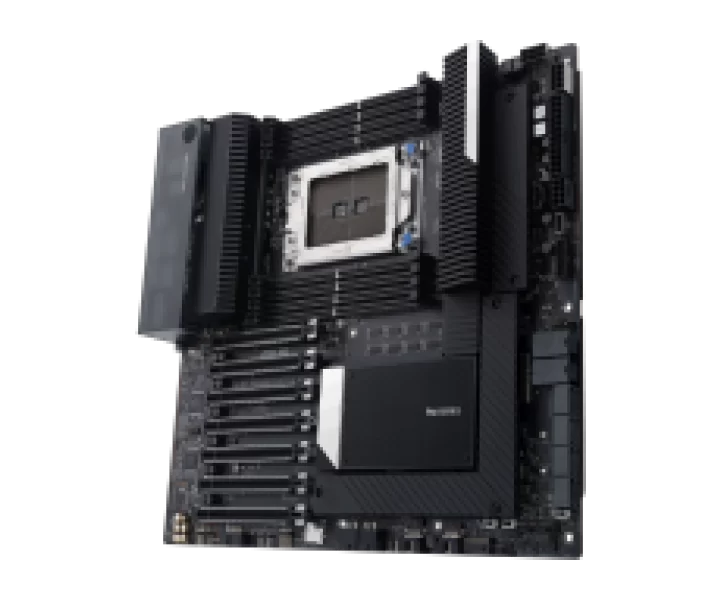

Pro WS WRX80E-SAGE SE WIFI II özellikleri ve fiyatları

Pro WS WRX80E-SAGE SE WIFI II teknik özellikleri

Model kodu

Pro WS WRX80E-SAGE SE WIFI II

İşlemci soketi

SWRX8

Anakart yonga seti

AMD WRX80 Chipset

Anakart biçimi

E-ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Socket sWRX8 for AMD Ryzen Threadripper PRO Series Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

8 x DDR4 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM*; 8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM*; 8 Channel Memory Architecture; * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

2048 GB

PCIe yuvaları

AMD Ryzen Threadripper PRO Series Processors; 7 x PCIe 4.0/3.0 x16 slot(s)*; * Support PCIe bandwidth bifurcation for RAID on CPU function.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen Threadripper PRO Series Processors; 7 x PCIe 4.0/3.0 x16 slot(s)*; * Support PCIe bandwidth bifurcation for RAID on CPU function.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports, AMD Ryzen Threadripper PRO Series Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*, AMD WRX80 Chipset, M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*, 4 x SATA 6Gb/s ports, ASMedia ASM1061 Controller, 4 x SATA 6Gb/s ports, Supports NVMe RAID configurations via M.2 storages, *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately., Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports, AMD Ryzen Threadripper PRO Series Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*, AMD WRX80 Chipset, M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*, 4 x SATA 6Gb/s ports, ASMedia ASM1061 Controller, 4 x SATA 6Gb/s ports, Supports NVMe RAID configurations via M.2 storages, *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately

RAID desteği

Supports NVMe RAID configurations via M.2 storages; Supports NVMe RAID configurations via M.2 storages

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

8

USB bağlantısı

Rear USB (Total 10 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ); 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C ); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (suppport USB Type-C ); 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel X550-AT2 dual 10Gb Ethernet

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.3**; * WiFi 6E 6GHz regulatory may vary between countries.; ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback

Ses yongası

Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C); 1 x Wi-Fi Module; 2 x Intel X550-AT2 dual 10Gb Ethernet ports; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 6 x 4-pin Chassis Fan header(s); 1 x VRM heatsink Fan header; 1 x Chipset Fan header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 2 x 6-pin PCIe Graphics Card connector; 1 x 8-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M); 8 x SATA 6Gb/s ports; 2 x U.2 slots; USB; 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports; BMC Related; 1 x BMC switch; 1 x IPMI switch; 1 x Messange LED header; 1 x Micro SD card socket; 2 x LAN LED header(s); 1 x Location LED header; 1 x Location button header; 1 x PSU_SMB header; 1 x SMART_PSU switch; 1 x VGA switch; 1 x VGA header; 1 x VPP_I2C header; Miscellaneous; 1 x COM Port header; 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x Start button; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x RTC Battery header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 6 x 4-pin Chassis Fan header(s); 1 x VRM heatsink Fan header; 1 x Chipset Fan header

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 1 x 8-pin PCIe Power connector

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS Q-Design; - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; Bespoke Motherboard Design & Business Focused Features; - Event Log in ASMB9-iKVM; - 24/7 Reliability; - Overcurrent Protection; ASMB9-iKVM for KVM-over-Internet

Boyutlar

EATX(EEB) Form Factor; 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )

Kutu içeriği

Cables; 6 x SATA 6Gb/s cables; 1 x VGA cable; Miscellaneous; 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas; 1 x Hyper M.2 X16 Gen 4 Card; 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card; 3 x Q Latch; 7 x M.2 Rubber Packages; 1 x Q-connector; Documentation; 1 x User manual; Cables; 6 x SATA 6Gb/s cables; 1 x VGA cable; Miscellaneous; 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas; 1 x Hyper M.2 X16 Gen 4 Card; 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card; 3 x Q Latch; 7 x M.2 Rubber Packages; 1 x Q-connector; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: Pro WS WRX80E-SAGE SE WIFI II, News & Updates: Socket sWRX8, CPU: AMD Socket sWRX8 for AMD Ryzen Threadripper PRO Series Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD WRX80 Chipset, Memory: 8 x DDR4 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM* 8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM* 8 Channel Memory Architecture * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list., Expansion Slots: AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)* * Support PCIe bandwidth bifurcation for RAID on CPU function., Multi-GPU Support: Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology, Storage: Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately. Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s, ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately, Ethernet: 1 x Intel X550-AT2 dual 10Gb Ethernet, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ) 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C ) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (suppport USB Type-C ) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C) 1 x Wi-Fi Module 2 x Intel X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header, Special Features: ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design & Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASMB9-iKVM for KVM-over-Internet, Software Features: ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card 3 x Q Latch 7 x M.2 Rubber Packages 1 x Q-connector Documentation 1 x User manual Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card 3 x Q Latch 7 x M.2 Rubber Packages 1 x Q-connector Documentation 1 x User manual, Operating System: Windows 11 Windows 10 64-bit, Form Factor: EATX(EEB) Form Factor 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
