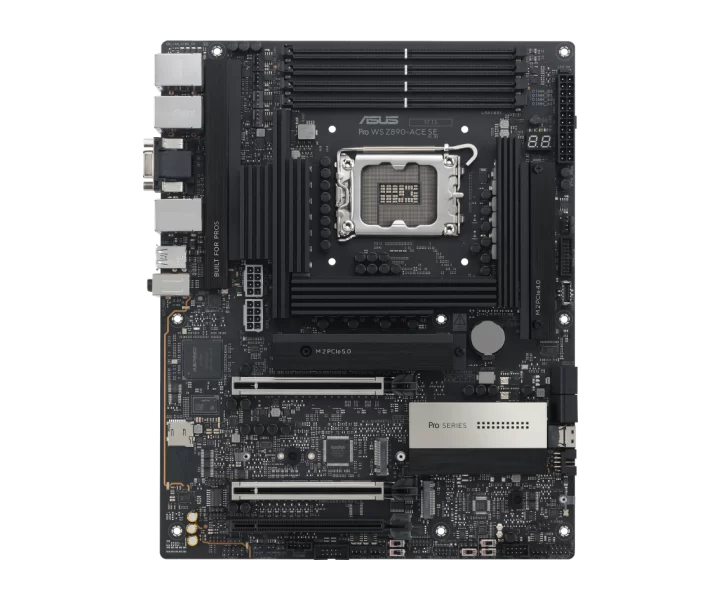

Pro WS Z890-ACE SE özellikleri ve fiyatları

Pro WS Z890-ACE SE teknik özellikleri

Model kodu

Pro WS Z890-ACE SE

İşlemci soketi

LGA1851

Anakart yonga seti

Intel Z890 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Supports Intel Core Ultra Processors (Series 2) , LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to https://www.asus.com/support/download-center/ for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; Supports DIMM Fit; Supports DIMM Flex; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.; * *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Expansion Slots Intel Core Ultra Processors (Series 2)*; 2 x PCIe 5.0 x16 slots*** (supports x16 or x8/x8 modes)**; Intel Z890 Chipset**; 1 x PCIe 4.0 x16 slot (supports x4 mode)***; * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Expansion Slots Intel Core Ultra Processors (Series 2)*; 2 x PCIe 5.0 x16 slots*** (supports x16 or x8/x8 modes)**; Intel Z890 Chipset**; 1 x PCIe 4.0 x16 slot (supports x4 mode)***; * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*; Intel Core Ultra Processors (Series 2); M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe4.0 x4 mode); Intel Z890 Chipset**; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); SlimSAS_1 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. **; 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.; **SlimSAS port connected to a U.2 device via a transfer cable does not support VMD/RST.

RAID desteği

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

8

USB bağlantısı

Rear USB (Total 8 ports); 1 x Thunderbolt 4 port (1 x USB Type-C ); 1 x USB 20Gbps port (1 x USB Type-C ); 6 x USB 10Gbps ports (6 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers supports 4 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; 1 x Realtek 1Gb Ethernet dedicated for AST2600

Ses çıkışı

Audio"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*"; Audio Features; - Audio Shielding; - Premium audio capacitors

Ses yongası

Audio"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

Back Panel I/O Ports 1 x Thunderbolt 4 USB Type-C port; 1 x USB 20Gbps port (1 x USB Type-C ); 6 x USB 10Gbps ports (6 x Type-A); 1 x HDMI port; 1 x Marvell AQtion 10Gb Ethernet port; 1 x Intel 2.5Gb Ethernet port; 1 x Realtek 1Gb Ethernet dedicated for AST2600; 2 x Audio jacks; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 5 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; Storage Related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x SlimSAS port; USB; 1 x USB 20Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 header supports 4 additional USB 2.0 ports; Miscellaneous; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x CPU Over voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt (USB4 ) header; 1 x SPI TPM header (14-1 pin); 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 5 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; Storage Related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x SlimSAS port; USB; 1 x USB 20Gbps connector (supports USB Type-C ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 header supports 4 additional USB 2.0 ports; Miscellaneous; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x CPU Over voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt (USB4 ) header; 1 x SPI TPM header (14-1 pin)

Fan ve pompa bağlantıları

1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 5 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 5 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**; 1 x Intel Thunderbolt 4 port (USB Type-C ) support DisplayPort and Thunderbolt video outputs***; 1 x VGA port from AST2600; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; **Supports 4K@60Hz as specified in HDMI 2.1.; ***In Thunderbolt TM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.; **** VGA resolution support depends on processors' or graphic cards' resolution.; ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

BIOS özellikleri

256 Mb Flash ROM UEFI AMI BIOS(text-based)

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Release Slim (with PCIe SafeSlot); - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - SafeSlot; - SafeDIMM; Bespoke Motherboard Design & Business Focused Features; - 24/7 reliability; - Overcurrent protection

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x AMI license sticker; 1 x I/O shield; 2 x M.2 Q-Latch packages; 2 x M.2 rubber packages; 1 x Q-connector; Documentation; 1 x ACC Express activation key card; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: Pro WS Z890-ACE SE, News & Updates: Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates., CPU: Supports Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel Z890 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports DIMM Fit Supports DIMM Flex Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x HDMI port** 1 x Intel Thunderbolt 4 port (USB Type-C ) support DisplayPort and Thunderbolt video outputs*** 1 x VGA port from AST2600 * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports 4K@60Hz as specified in HDMI 2.1. ***In Thunderbolt TM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. **** VGA resolution support depends on processors' or graphic cards' resolution. ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card., Expansion Slots: Expansion Slots Intel Core Ultra Processors (Series 2)* 2 x PCIe 5.0 x16 slots*** (supports x16 or x8/x8 modes)** Intel Z890 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode)*** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe4.0 x4 mode) Intel Z890 Chipset** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) SlimSAS_1 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. ** 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. **SlimSAS port connected to a U.2 device via a transfer cable does not support VMD/RST., Ethernet: 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet dedicated for AST2600, USB: Rear USB (Total 8 ports) 1 x Thunderbolt 4 port (1 x USB Type-C ) 1 x USB 20Gbps port (1 x USB Type-C ) 6 x USB 10Gbps ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers supports 4 additional USB 2.0 ports, Audio: Audio"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Audio Shielding - Premium audio capacitors, Back Panel I/O Ports: Back Panel I/O Ports 1 x Thunderbolt 4 USB Type-C port 1 x USB 20Gbps port (1 x USB Type-C ) 6 x USB 10Gbps ports (6 x Type-A) 1 x HDMI port 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 1 x Realtek 1Gb Ethernet dedicated for AST2600 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 4 additional USB 2.0 ports Miscellaneous 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4 ) header 1 x SPI TPM header (14-1 pin) 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 4 additional USB 2.0 ports Miscellaneous 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4 ) header 1 x SPI TPM header (14-1 pin), Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection, Software Features: ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS DriverHub TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey NPU Boost, Remote Management Features: IT Management software supported - ASUS Control Center Express(ACCE) BMC Related 1 x BMC switch 1 x BMC debug UART header 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VPP_I2C header BMC LED Design - 1 x BMC LED, BIOS: 256 Mb Flash ROM UEFI AMI BIOS(text-based), Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x AMI license sticker 1 x I/O shield 2 x M.2 Q-Latch packages 2 x M.2 rubber packages 1 x Q-connector Documentation 1 x ACC Express activation key card 1 x Quick start guide, Operating System: Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later), Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
