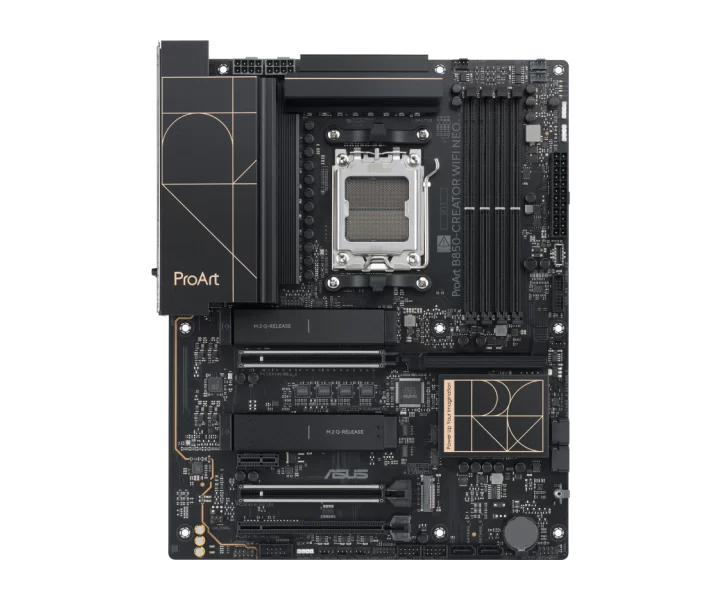

ProArt B850-CREATOR WIFI NEO özellikleri ve fiyatları

ProArt B850-CREATOR WIFI NEO teknik özellikleri

Model kodu

ProArt B850-CREATOR WIFI NEO

İşlemci soketi

AM5

Anakart yonga seti

AMD B850 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; Supports up to AMD 170W CPU; * Refer to https://www.asus.com/support/download-center/ for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Supports up to; 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors,; 9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors,; 8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors,; ECC and Non-ECC, Un-buffered DIMM*; Supports up to 5600MT/s with AMD EPYC 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO ); ASUS Enhanced Memory Profile (AEMP); * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.; * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.; * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***; AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)****; 1 x PCIe 4.0 x1 slots; * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; *** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.; **** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)***; AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)****; 1 x PCIe 4.0 x1 slots; * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).; ** Specifications vary by CPU types.; *** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each.; **** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 7000 & 9000 Series Desktop Processors and AMD EPYC 4005 Series Processors*; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode); AMD B850 Chipset; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*; 4 x SATA 6Gb/s ports; * The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); 2 x USB 10Gbps ports (1 x Type-C +1 x Type-C + Alt mode); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)**; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C output (USB Type-C Current): max. 5V/3A.; ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.

Kablolu ağ bağlantısı

2 x Realtek 5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 7 (Realtek RTL8922AE); 2x2 Wi-Fi 7* (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 160MHz bandwidth; Bluetooth (suppports LE Audio)***; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.; For Windows 10, only Wi-Fi 6 is supported.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - Premium audio capacitors; - Dedicated audio PCB layers; - Unique de-pop circuit; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.; ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.; *** Once an EPYC CPU is installed, the onboard audio function will be disabled.

Ses yongası

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB 10Gbps ports (1 x Type-C + 1 x Type-C with Alt mode); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 2 x Realtek 5Gb Ethernet ports; 3 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen2 headers; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front Panel System header; 1 x Thunderbolt (USB4 ) header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; 1 x USB 10Gbps port (USB Type-C ) supports DisplayPort video output**; * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.; ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

BIOS özellikleri

64MB (512Mb) Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - M.2 Q-Release; - M.2 Q-Slide; - PCIe Slot Q-Release (with PCIe SafeSlot); - Q-Antenna; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Addressable RGB Gen2 headers; Bespoke Motherboard Design & Business Focused Features; - 24/7 reliability; - Overcurrent protection; Front Panel USB 20Gbps with Quick Charge 4+ Support; - Support: up to 30W fast charging and USB Wattage Watcher; - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A; - Compatible with PD3.0

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 1 x Q-connector; 1 x M.2 Q-Slide package (2IN1); 1 x Rubber package for M.2 (2IN1); 1 x Screw for M.2 Q-Latch(1IN1); 1 x ProArt accessory bag; Documentation; 1 x ACC Express activation key card; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: ProArt B850-CREATOR WIFI NEO, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors* Supports up to AMD 170W CPU * Refer to https://www.asus.com/support/download-center/ for CPU support list., Chipset: AMD B850 Chipset, Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors, 9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors, 8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Supports up to 5600MT/s with AMD EPYC 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO ) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. * XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/ . Adjustments will be made based on the specifications of mass-produced memory products available on the market., Graphics: 1 x DisplayPort** 1 x HDMI port*** 1 x USB 10Gbps port (USB Type-C ) supports DisplayPort video output** * Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*** AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** 1 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ). ** Specifications vary by CPU types. *** When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each. **** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 & 9000 Series Desktop Processors and AMD EPYC 4005 Series Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs., RAID Support: AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10, Ethernet: 2 x Realtek 5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 7 (Realtek RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth (suppports LE Audio)*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-C +1 x Type-C + Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C output (USB Type-C Current): max. 5V/3A. ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A., Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. *** Once an EPYC CPU is installed, the onboard audio function will be disabled., Back Panel I/O Ports: 2 x USB 10Gbps ports (1 x Type-C + 1 x Type-C with Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 2 x Realtek 5Gb Ethernet ports 3 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt (USB4 ) header 1 x Thermal Sensor header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - ASUS CPU-Z -ASUS GlideX -ProArt Creator Hub -CreatonFirst -USB Wattage Watcher -TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/ ., Remote Management Features: IT Management software supported - ASUS Control Center Express(ACCE), BIOS: 64MB (512Mb) Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Slide package (2IN1) 1 x Rubber package for M.2 (2IN1) 1 x Screw for M.2 Q-Latch(1IN1) 1 x ProArt accessory bag Documentation 1 x ACC Express activation key card 1 x Quick start guide, Operating System: AMD EPYC 4005 Series: Windows Server* 2025/2022 AMD Ryzen Series: Windows 11 *Wi-Fi and Bluetooth have limited support under Windows Server OS., Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
