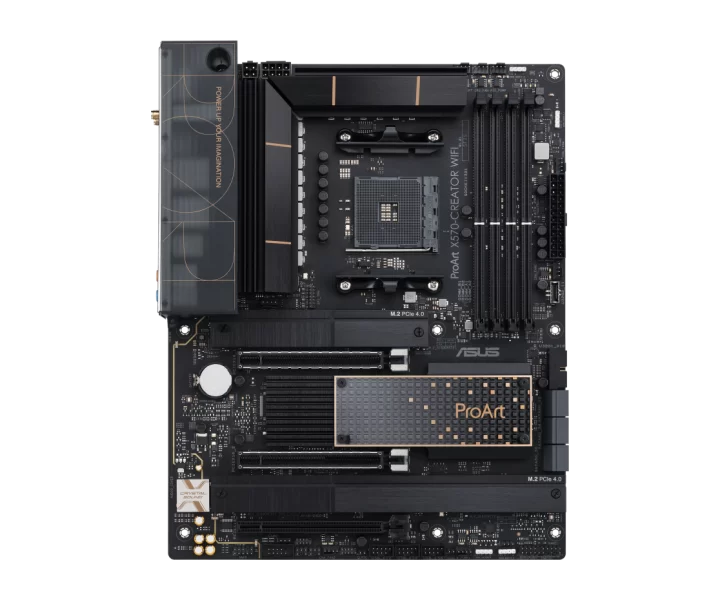

ProArt X570-CREATOR WIFI özellikleri ve fiyatları

ProArt X570-CREATOR WIFI teknik özellikleri

Model kodu

ProArt X570-CREATOR WIFI

İşlemci soketi

AM4

Anakart yonga seti

X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series Desktop Processors and AMD Athlon 3000 G-Series Desktop Processors, AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*; AMD Ryzen 5000 G-Series and 4000 G-Series Processors; 4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*; AMD Ryzen 2000 Series Desktop Processors; 4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*; AMD Ryzen 3000 G-Series and 2000-G Series Desktop Processors; 4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*; OptiMem II; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 Series and 3000 Series Desktop Processor s; 2 x PCIe 4.0 x16 (x16 or dual x8**)*; AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors; 2 x PCIe 3.0 x16 (x16 or dual x8**)*; AMD Ryzen 2000 G-Series and 3000 G-Series Processors; 1 x PCIe 3.0 x16 (x8 mode)*; AMD X570 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Support PCIe bandwidth bifurcation for RAID on CPU function.; ** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default.; When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 Series and 3000 Series Desktop Processor s; 2 x PCIe 4.0 x16 (x16 or dual x8**)*; AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors; 2 x PCIe 3.0 x16 (x16 or dual x8**)*; AMD Ryzen 2000 G-Series and 3000 G-Series Processors; 1 x PCIe 3.0 x16 (x8 mode)*; AMD X570 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Support PCIe bandwidth bifurcation for RAID on CPU function.; ** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default.; When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.

M.2 uyumluluğu ve şerit paylaşımı

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports, Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports; AMD Ryzen 5000 Series and 3000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)*; AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)*; AMD Ryzen 2000 G-Series and 3000 G-Series Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes); AMD X570 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); Supports RAID 0, 1, 10; 6 x SATA 6Gb/s ports * M.2_2 slot share bandwidth with PCIEX16_2. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.

RAID desteği

Supports RAID 0, 1, 10

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB:Total 10 ports, Rear USB (Total 10 ports); 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support; 4 x USB 3.2 Gen 2 port(s) (4 x Type-A); 4 x USB 3.2 Gen 1 port(s) (4 x Type-A); Front USB (Total 9 ports); 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; 1 x Marvell 10Gb Ethernet, 1 x Marvell AQtion AQC113CS 10Gb Ethernet; 1 x Intel I225-V 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.2; * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Ses çıkışı

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - Power pre-regulator reduces power input noise to ensure consistent performance; - Premium Japanese audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Ses yongası

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x Thunderbolt 4 USB Type-C port(s); 4 x USB 3.2 Gen 2 port(s) (4 x Type-A); 4 x USB 3.2 Gen 1 port(s) (4 x Type-A); 1 x DisplayPort (Input only); 1 x HDMI port; 1 x Intel I225-V 2.5Gb Ethernet port; 1 x Marvell AQtion AQC113CS 10Gb Ethernet port; 1 x ASUS Wi-Fi Module; 5 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x W_PUMP+ header(s); 4 x 4-pin Chassis Fan header(s); Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports; Miscellaneous; 3 x AURA Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x W_PUMP+ header(s); 4 x 4-pin Chassis Fan header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI 2.1(4K@60Hz); 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt video outputs *; * VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with Dr. MOS); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - M.2 Q-Latch; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 RGB header(s); Bespoke Motherboard Design & Business Focused Features; - 24/7 Reliability; - Overcurrent Protection

Boyutlar

ATX, 30.5cm x 24.5cm

Kutu içeriği

Cables; 4 x SATA 6Gb/s cables; 1 x DP to DP cable for Thunderbolt 4; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 2 x M.2 Rubber Package(s); 1 x M.2 SSD screw package(s); 1 x Q-connector; Installation Media; 1 x Support DVD; Documentation; 1 x ACC Express Activation Key Card; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ProArt X570-CREATOR WIFI, CPU: AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series Desktop Processors and AMD Athlon 3000 G-Series Desktop Processors, AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: X570, Memory: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* AMD Ryzen 5000 G-Series and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* AMD Ryzen 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* AMD Ryzen 3000 G-Series and 2000-G Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphics: 1 x HDMI 2.1(4K@60Hz) 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt video outputs * * VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual., Expansion Slots: AMD Ryzen 5000 Series and 3000 Series Desktop Processor s 2 x PCIe 4.0 x16 (x16 or dual x8**)* AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors 2 x PCIe 3.0 x16 (x16 or dual x8**)* AMD Ryzen 2000 G-Series and 3000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Support PCIe bandwidth bifurcation for RAID on CPU function. ** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings., Storage: Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports, Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series and 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)* AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)* AMD Ryzen 2000 G-Series and 3000 G-Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) Supports RAID 0, 1, 10 6 x SATA 6Gb/s ports * M.2_2 slot share bandwidth with PCIEX16_2. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings., Ethernet: 1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet, 1 x Marvell AQtion AQC113CS 10Gb Ethernet 1 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later., USB: Rear USB:Total 10 ports, Rear USB (Total 10 ports) 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports, Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio., Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Intel I225-V 2.5Gb Ethernet port 1 x Marvell AQtion AQC113CS 10Gb Ethernet port 1 x ASUS Wi-Fi Module 5 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x W_PUMP+ header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with Dr. MOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - M.2 Q-Latch - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection, Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 4 x SATA 6Gb/s cables 1 x DP to DP cable for Thunderbolt 4 Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual, Operating System: Windows 10 64-bit, Windows 11 Ready, Form Factor: ATX, 30.5cm x 24.5cm
