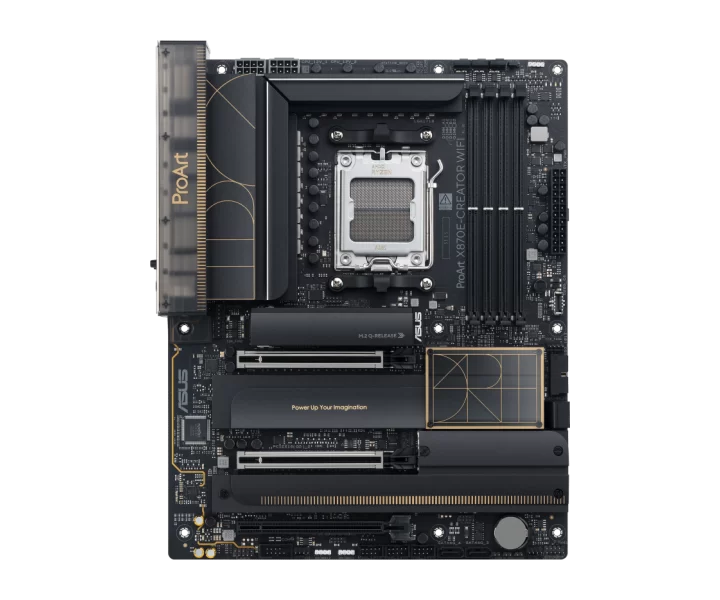

ProArt X870E-CREATOR WIFI özellikleri ve fiyatları

ProArt X870E-CREATOR WIFI teknik özellikleri

Model kodu

ProArt X870E-CREATOR WIFI

İşlemci soketi

AM5

Anakart yonga seti

AMD X870E

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 256GB, DDR5; Support up to; 8000+MT/s(OC) with Ryzen 9000 Series Processors,; 8000+MT/s(OC) with Ryzen 8000 Series Processors,; 8000+MT/s(OC) with Ryzen 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for; Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP); * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; ** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; *** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***); AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*; 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled); AMD Ryzen 8500 & 8300 Series Desktop Processors*; 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled); AMD X870E Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.; *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.; - To ensure compatibility of the device installed, please refer to; https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***); AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*; 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled); AMD Ryzen 8500 & 8300 Series Desktop Processors*; 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled); AMD X870E Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.; *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.; - To ensure compatibility of the device installed, please refer to; https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*; AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot is not supported; AMD X870E Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * PCIEX16(G5)_2 slot shares bandwidth with M.2_2.; AMD RAIDXpert2 Technology; Ryzen 7000 series processors: PCIe RAID 0/1/10; Ryzen 8000 series processors: PCIe RAID 0/1; Ryzen 9000 series processors: PCIe RAID 0/1/5/10; X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

RAID desteği

AMD RAIDXpert2 Technology; Ryzen 7000 series processors: PCIe RAID 0/1/10; Ryzen 8000 series processors: PCIe RAID 0/1; Ryzen 9000 series processors: PCIe RAID 0/1/5/10; X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 11 ports); 2 x USB4 (40Gbps) port(s) (2 x USB Type-C ); 1 x USB 20Gbps port(s) (1 x USB Type-C ); 7 x USB 10Gbps port(s) (7 x Type-A); 1 x USB 2.0 port (1 x Type-A); Front USB (Total 9 ports); 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)**; 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 6 additional USB 2.0 ports; "* USB Type-C power delivery output: max. 5V/3.0A"; ** USB Type-C power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

Kablolu ağ bağlantısı

1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)*; 2x2 Wi-Fi 7** (802.11be); Supports 2.4/5/6GHz frequency band***; Supports Wi-Fi 7 320MHz bandwidth; Bluetooth v5.4****; *The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details.; **Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.; For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.; *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; - Unique de-pop circuit; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.; ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x USB4 (40Gbps) port(s) (2 x USB Type-C ); 1 x USB 20Gbps port (1 x USB Type-C ); 7 x USB 10Gbps ports (7 x Type-A); 1 x USB 2.0 port (1 x Type-A); 1 x DisplayPort (Input only); 1 x HDMITM port; 1 x Wi-Fi Module; 1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; 3 x Audio jacks; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; Storage related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+); 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 6 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**; 2 x USB4 (40Gbps) ports support USB Type-C display outputs***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1.; *** Supports max. 8K@60Hz as specified in DisplayPort 1.4.; **** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - LANGuard; - Overvoltage Protection; - Safeslot; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - M.2 Q-Release; - M.2 Q-Slide; - PCIe Slot Q-Release Slim (with PCIe SafeSlot); - Q-Antenna; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; AURA Sync; - Addressable Gen 2 headers; Bespoke Motherboard Design & Business Focused Features; - 24/7 Reliability; - Overcurrent Protection; Front Panel USB 20Gbps with Quick Charge 4+ Support; - Support: up to 30W fast charging and USB Wattage Watcher; - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A; - Compatible with PD3.0

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 1 x DisplayPort cable; 4 x SATA 6Gb/s cables; Additional Cooling Kit; 1 x Thermal pad for M.2 22110; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 1 x Q-connector; 1 x M.2 Q-Latch package; 1 x M.2 Q-Latch Q-Slide package for M.2 backplate; 2 x Rubber Packages for M.2; 1 x ProArt Gift Item; Documentation; 1 x Quick start guide; 1 x ACC Express Activation Key Card

Üreticinin ayrıntılı teknik bilgileri

Model: ProArt X870E-CREATOR WIFI, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD X870E, Memory: 4 x DIMM slots, max. 256GB, DDR5 Support up to 8000+MT/s(OC) with Ryzen 9000 Series Processors, 8000+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. *** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function., Graphics: 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. **** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * PCIEX16(G5)_2 slot shares bandwidth with M.2_2. AMD RAIDXpert2 Technology Ryzen 7000 series processors: PCIe RAID 0/1/10 Ryzen 8000 series processors: PCIe RAID 0/1 Ryzen 9000 series processors: PCIe RAID 0/1/5/10 X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10, Ethernet: 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)* 2x2 Wi-Fi 7** (802.11be) Supports 2.4/5/6GHz frequency band*** Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4**** *The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details. **Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 11 ports) 2 x USB4 (40Gbps) port(s) (2 x USB Type-C ) 1 x USB 20Gbps port(s) (1 x USB Type-C ) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)** 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports "* USB Type-C power delivery output: max. 5V/3.0A" ** USB Type-C power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A, Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 2 x USB4 (40Gbps) port(s) (2 x USB Type-C ) 1 x USB 20Gbps port (1 x USB Type-C ) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header, Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0, Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z ProArt Creator Hub CreationFirst Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey, Remote Management Features: IT Management software supported - ASUS Control Center Express(ACCE), BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt Gift Item Documentation 1 x Quick start guide 1 x ACC Express Activation Key Card, Operating System: Windows 11, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
