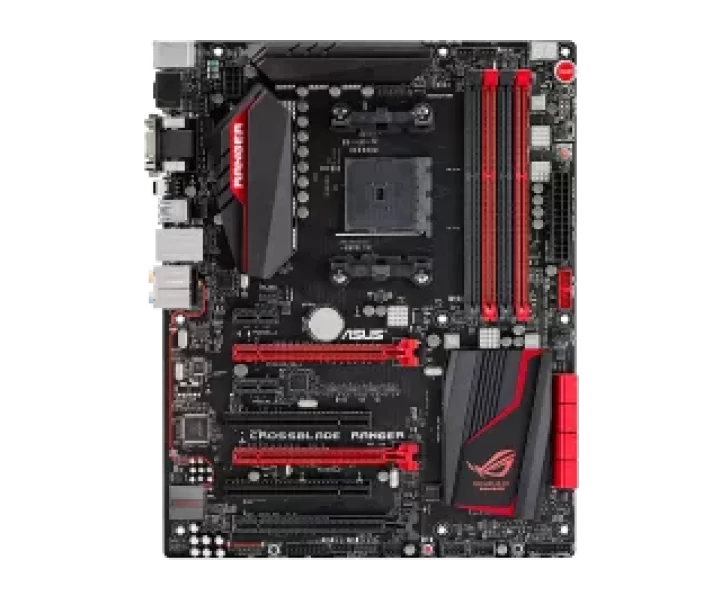

ROG CROSSBLADE RANGER özellikleri ve fiyatları

ROG CROSSBLADE RANGER teknik özellikleri

Model kodu

ROG CROSSBLADE RANGER

İşlemci soketi

FM2+

Anakart yonga seti

AMD A88X (Bolton D4)

Anakart biçimi

ATX

RAM türü

DDR3

Uyumlu işlemciler

AMD Socket FM2+ Athlon/A- Series Processors; Supports CPU up to 4 cores; Supports AMD Turbo Core 3.0 Technology; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 64GB, DDR3 2666(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory *; Support AMD Memory Profile (AMP) memory; * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.; Dual Channel Memory Architecture; * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8, red) *2; 1 x PCIe 2.0 x16 (max at x4 mode, black); 2 x PCI; 2 x PCIe 2.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8, red) *2; 1 x PCIe 2.0 x16 (max at x4 mode, black); 2 x PCI; 2 x PCIe 2.0 x1

M.2 uyumluluğu ve şerit paylaşımı

8 x SATA 6Gb/s port(s), , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode); AMD A88X FCH(Bolton D4) chipset :; Support Raid 0, 1, 5, 10, JBOD

RAID desteği

Support Raid 0, 1, 5, 10, JBOD

Ses çıkışı

- ELNA premium audio capacitors; - Sonic SoundStage; - Sonic Studio; - Sonic SenseAmp; - Sonic Radar II; - DTS Connect; ROG SupremeFX8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - SupremeFX Shielding Technology; Audio Feature :; - Optical S/PDIF out port(s) at back panel

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC

BIOS özellikleri

64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS

Diğer anakart özellikleri

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration; - USB Charger+; Remote Entertainment; - Media Streamer; - ASUS Fan Xpert 3; - USB 3.0 Boost; - ASUS EZ Flash 2; - Push Notice; - Disk Unlocker; - Ai Charger+; - MemOK!; ASUS Exclusive Features :; - AI Suite 3; ASUS Quiet Thermal Solution :; - Stylish Fanless Design Heat-sink solution & MOS Heatsink; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS UEFI BIOS EZ Mode; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x ROG Mouse Mat; 1 x Q-connector(s) (2 in 1); 1 x 12 in 1 ROG Cable Label(s); 1 x ROG Door Hanger(s); User´s manual; I/O Shield; 4 x SATA 6Gb/s cable(s)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG CROSSBLADE RANGER, CPU: AMD Socket FM2+ Athlon/A- Series Processors Supports CPU up to 4 cores Supports AMD Turbo Core 3.0 Technology * Refer to www.asus.com for CPU support list, Chipset: AMD A88X (Bolton D4), Memory: 4 x DIMM, Max. 64GB, DDR3 2666(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory * Support AMD Memory Profile (AMP) memory * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: - Supports DVI-D with max. resolution 2560 x 1600 @ 60Hz AMD Dual Graphics technology support Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU - Supports HDMI with max. resolution 4096 x 2160 @ 24Hz / 1920 x 1200 @ 60Hz*1 - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz Multi-VGA output support : HDMI/DVI-D/RGB ports Maximum shared memory of 2048 MB (for iGPU exclusively), Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology, Expansion Slots: 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8, red) *2 1 x PCIe 2.0 x16 (max at x4 mode, black) 2 x PCI 2 x PCIe 2.0 x1, Storage: 8 x SATA 6Gb/s port(s), , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) AMD A88X FCH(Bolton D4) chipset : Support Raid 0, 1, 5, 10, JBOD, LAN: Intel I211-AT, 1 x Gigabit LAN Controller(s), Audio: - ELNA premium audio capacitors - Sonic SoundStage - Sonic Studio - Sonic SenseAmp - Sonic Radar II - DTS Connect ROG SupremeFX8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - SupremeFX Shielding Technology Audio Feature : - Optical S/PDIF out port(s) at back panel, USB Ports: 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) 8 x USB 2.0 port(s) (2 at back panel, , 6 at mid-board) 2 x USB 3.0 port(s) (2 at back panel, blue) AMD A88X FCH(Bolton D4) chipset : ASMedia USB 3.1 Gen 1 controller :, ROG Exclusive Features: Extreme Engine Digi+ III : - Full Digital CPU/DRAM Power - New Alloy Chokes KeyBot - CPU Level Up - XMP - Direct Key GameFirst III - NexFET Power Block MOSFET ROG RAMDisk - GPU.DIMM Post ProbeIt - 10K Black Metallic Capacitors ROG Extreme OC kit : - Slow Mode - LN2 Mode UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Extreme Tweaker USB BIOS Flashback, Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration - USB Charger+ Remote Entertainment - Media Streamer - ASUS Fan Xpert 3 - USB 3.0 Boost - ASUS EZ Flash 2 - Push Notice - Disk Unlocker - Ai Charger+ - MemOK! ASUS Exclusive Features : - AI Suite 3 ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Operating System Support: Windows 8.1 Windows 8 Windows 7, Back I/O Ports: 6 x Audio jack(s) 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s), Internal I/O Ports: 1 x KeyBot Button 1 x Sonic SoundStage Button 1 x DRCT header(s) 1 x ROG extension (ROG_EXT) header(s) 1 x MemOK! button(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 7 x ProbeIt Measurement Points 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Slow Mode switch(es) 1 x Power-on button(s) 1 x Reset button(s) 1 x LN2 Mode jumper(s), Accessories: 1 x ROG Mouse Mat 1 x Q-connector(s) (2 in 1) 1 x 12 in 1 ROG Cable Label(s) 1 x ROG Door Hanger(s) User´s manual I/O Shield 4 x SATA 6Gb/s cable(s), BIOS: 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS, Manageability: WfM 2.0, DMI 2.7, WOL by PME, PXE, Support Disc: Drivers ROG GameFirst III ROG RAMDisk ROG CPU-Z Kaspersky Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage HomeCloud ASUS Utilities, Operating System: Windows 7 32/64-bit Windows 8 32/64-bit Windows 8.1 32/64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Management Solution: WfM 2.0, DMI 2.7, WOL by PME, PXE, Note: 1: Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port. 2: Only FM2+ processors can support PCIe 3.0. 3: 1 x USB 2.0 connectors support additional 2 USB 2.0 ports(2 ports share with ROG_EXT header).

part Number

90MB0JQ0-M0AAY0
