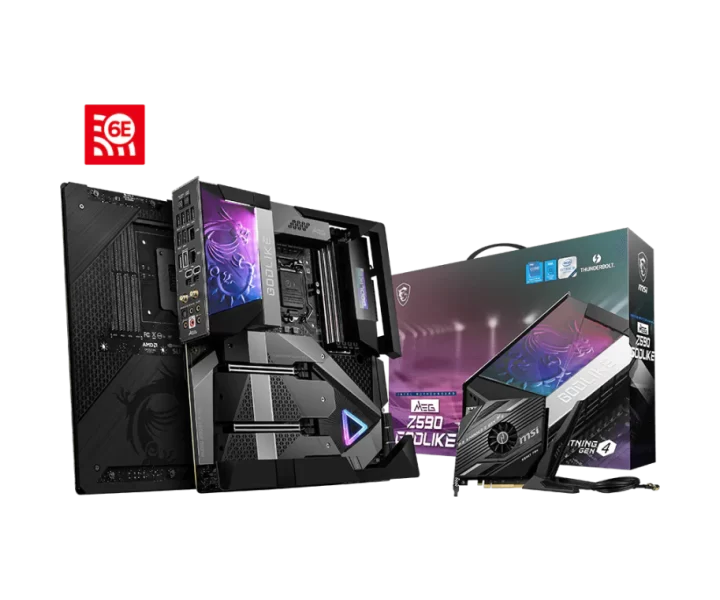

MEG Z590 GODLIKE özellikleri ve fiyatları

MEG Z590 GODLIKE teknik özellikleri

Model kodu

MEG Z590 GODLIKE

İşlemci soketi

LGA1200

Anakart yonga seti

Intel Z590

Anakart biçimi

E-ATX

RAM türü

DDR4

Uyumlu işlemciler

Socket 1200; 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors; LGA1200;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz; Intel Extreme Memory Profile (XMP)

Bellek hızı ve uyumluluk koşulları

1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz; 1DPC 2R Max speed up to 4800+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe x16 slots; Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4; PCI_E1 & PCI_E2 slots (From CPU); Support up to PCIe 4.0 for 11th Gen Intel CPU; Support up to PCIe 3.0 for 10th Gen Intel CPU; PCI_E3 slot (From Z590 chipset); Supports up to PCIe 3.0; PCI_E3 will run at x1 speed when installing device in M2_4 slot.

PCIe şerit paylaşımı ve işlemci koşulları

PCI_E3 will run at x1 speed when installing device in M2_4 slot.

PCIe sürümü

PCIe 4.0 / PCIe 3.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (from Z590 chipset); 4x M.2 slots (Key M); M2_1 (from CPU); Available only on 11th Gen Intel CPU; Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 , M2_3 & M2_4 slots (from Z590 chipset); M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices; M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready; Supports Intel Smart Response Technology for Intel Core processors; SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.; M2_4 will run at x2 speed when installing device in PCI_E3 slot.; Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB bağlantısı

Intel Z590 Chipset; 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the; back panel and 1 Type-C internal connector); 2x USB 2.0 ports are available through the internal; USB 2.0 connector; Hub GL850G; 2x USB 2.0 ports are available through the internal; USB 2.0 connector; Asmedia 1074 Chipset; 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the; back panel, 4 ports are available through the internal; USB 3.2 Gen 1 connectors)

Kablolu ağ bağlantısı

1x Aquantia AQC107 10Gbps LAN controller; 1x Intel I225-V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Aquantia AQC107 10Gbps LAN controller; 1x Intel I225-V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin ATX PCIE power connector; 6x SATA 6Gb/s connectors; 4x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 8x 4-pin system fan connectors; 1x 3-pin Water Flow connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis intrusion connector; 2x 2-pin Thermal sensors connectors; 1x TPM module connector; 1x Tuning controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin ATX PCIE power connector

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 8x 4-pin system fan connectors

Fan bağlantısı sayısı

10

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; 2.5G LAN; 10G Super LAN; Thunderbolt 4 40Gbps (Type-C); Wi-Fi / Bluetooth; HD Audio Connectors; Flash BIOS Button; USB 3.2 Gen1 5Gbps (Type-A); USB 3.2 Gen2 10Gbps (Type-A); Mini DisplayPort Input (for Thunderbolt passthrough); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Diğer anakart özellikleri

1x 2-Digit Debug Code LED; 4x EZ Debug LED; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector; 1x EZ LED Control switch

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel WiFi-6E AX210; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; Supports 802.11a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.2 , FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Bluetooth 5.2 will be ready in WIN10 21H1.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.2

Boyutlar

12 in. x 10.9 in. (30.5 cm x 27.7 cm)

Üreticinin ayrıntılı teknik bilgileri

Processor: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors; Processor: Processor socket LGA1200; Processor: See supported processors; Chipset: Intel Z590 Chipset; Memory: 4x DDR4 memory slots, support up to 128GB; Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR); Memory: Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR); Memory: Max. overclocking frequency:; Memory: 1DPC 1R Max speed up to 5600 MHz; Memory: 1DPC 2R Max speed up to 4800+ MHz; Memory: 2DPC 1R Max speed up to 4400+ MHz; Memory: 2DPC 2R Max speed up to 4000+ MHz; Memory: Supports Dual-Channel mode; Memory: Supports non-ECC mode, un-buffered memory; Memory: Supports Intel Extreme Memory Profile (XMP); Memory: Please refer www.msi.com for more information on compatible memory.; Memory: See supported memory; Expansion Slots: 3x PCIe x16 slots; Expansion Slots: Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4; Expansion Slots: PCI_E1 & PCI_E2 slots (From CPU); Expansion Slots: Support up to PCIe 4.0 for 11th Gen Intel CPU; Expansion Slots: Support up to PCIe 3.0 for 10th Gen Intel CPU; Expansion Slots: PCI_E3 slot (From Z590 chipset); Expansion Slots: Supports up to PCIe 3.0; Expansion Slots: PCI_E3 will run at x1 speed when installing device in M2_4 slot.; Multi-GPU: Supports 2-Way NVIDIA SLI Technology; Multi-GPU: Supports 3-Way AMD CrossFire Technology, Thunderbolt 4: Intel JHL8540 Thunderbolt 4 Controller; Thunderbolt 4: 2x Thunderbolt 4 (Type-C) ports on the back panel; Thunderbolt 4: Support up to 40 Gbps transfer rate with Thunderbolt devices; Thunderbolt 4: Support up to 20 Gbps transfer rate with USB4 devices; Thunderbolt 4: Support up to 10Gbps transfer rate with USB 3.2 devices; Thunderbolt 4: Support up to 5V/3A , 15W power charging; Thunderbolt 4: Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; Thunderbolt 4: Supports up to 8K display (need to connect the discrete graphics card to the Mini DisplayPort Input port on the back panel); Storage: 6x SATA 6Gb/s ports (from Z590 chipset); Storage: 4x M.2 slots (Key M); Storage: M2_1 (from CPU); Storage: Available only on 11th Gen Intel CPU; Storage: Supports up to PCIe 4.0 x4; Storage: Supports 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_2 , M2_3 & M2_4 slots (from Z590 chipset); Storage: M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices; Storage: M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices; Storage: M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Storage: Intel Optane Memory Ready; Storage: Supports Intel Smart Response Technology for Intel Core processors; Storage: SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.; Storage: SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot., Storage: M2_4 will run at x2 speed when installing device in PCI_E3 slot.; Storage: Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.; RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; RAID: Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices; USB: Intel Z590 Chipset; USB: 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the; USB: back panel and 1 Type-C internal connector); USB: 2x USB 2.0 ports are available through the internal; USB: USB 2.0 connector; USB: Hub GL850G; USB: 2x USB 2.0 ports are available through the internal; USB: USB 2.0 connector; USB: Asmedia 1074 Chipset; USB: 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the; USB: back panel, 4 ports are available through the internal; USB: USB 3.2 Gen 1 connectors); Audio: Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA; Audio: 7.1-Channel High Definition Audio; Audio: Supports S/PDIF output; LAN: 1x Aquantia AQC107 10Gbps LAN controller; LAN: 1x Intel I225-V 2.5Gbps LAN controller; Wireless LAN & Bluetooth: Intel WiFi-6E AX210; Wireless LAN & Bluetooth: The Wireless module is pre-installed in the M.2 (Key-E) slot; Wireless LAN & Bluetooth: Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; Wireless LAN & Bluetooth: Supports 802.11a/ b/ g/ n/ ac/ ax; Wireless LAN & Bluetooth: Supports Bluetooth 5.2 , FIPS, FISMA, Wireless LAN & Bluetooth: Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.; Wireless LAN & Bluetooth: Bluetooth 5.2 will be ready in WIN10 21H1.; Internal connectors: 1x 24-pin ATX main power connector; Internal connectors: 2x 8-pin ATX 12V power connectors; Internal connectors: 1x 6-pin ATX PCIE power connector; Internal connectors: 6x SATA 6Gb/s connectors; Internal connectors: 4x M.2 slots (M-Key); Internal connectors: 1x USB 3.2 Gen 2 10Gbps Type-C port; Internal connectors: 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); Internal connectors: 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); Internal connectors: 1x 4-pin CPU fan connector; Internal connectors: 1x 4-pin water-pump fan connector; Internal connectors: 8x 4-pin system fan connectors; Internal connectors: 1x 3-pin Water Flow connector; Internal connectors: 1x Front panel audio connector; Internal connectors: 2x System panel connectors; Internal connectors: 1x Chassis intrusion connector; Internal connectors: 2x 2-pin Thermal sensors connectors; Internal connectors: 1x TPM module connector; Internal connectors: 1x Tuning controller connector; LED Feature: 1x 2-Digit Debug Code LED; LED Feature: 4x EZ Debug LED; LED Feature: 1x 4-pin RGB LED connector; LED Feature: 2x 3-pin RAINBOW LED connectors; LED Feature: 1x 3-pin CORSAIR LED connector; LED Feature: 1x EZ LED Control switch; Back panel ports: Clear CMOS Button, Back panel ports: 2.5G LAN; Back panel ports: 10G Super LAN; Back panel ports: Thunderbolt 4 40Gbps (Type-C); Back panel ports: Wi-Fi / Bluetooth; Back panel ports: HD Audio Connectors; Back panel ports: Flash BIOS Button; Back panel ports: USB 3.2 Gen1 5Gbps (Type-A); Back panel ports: USB 3.2 Gen2 10Gbps (Type-A); Back panel ports: Mini DisplayPort Input (for Thunderbolt passthrough); Back panel ports: Optical S/PDIF-Out; Dimensions: 12 in. x 10.9 in. (30.5 cm x 27.7 cm); Dimensions: E-ATX Form Factor; Mounting: 9 mounting holes; Operating System: Support for Windows 10 64-bit; Box content: MSI does not guarantee the risks or damages caused by changing the cover.; Box content: These pictures are for reference only and may vary without notice.
