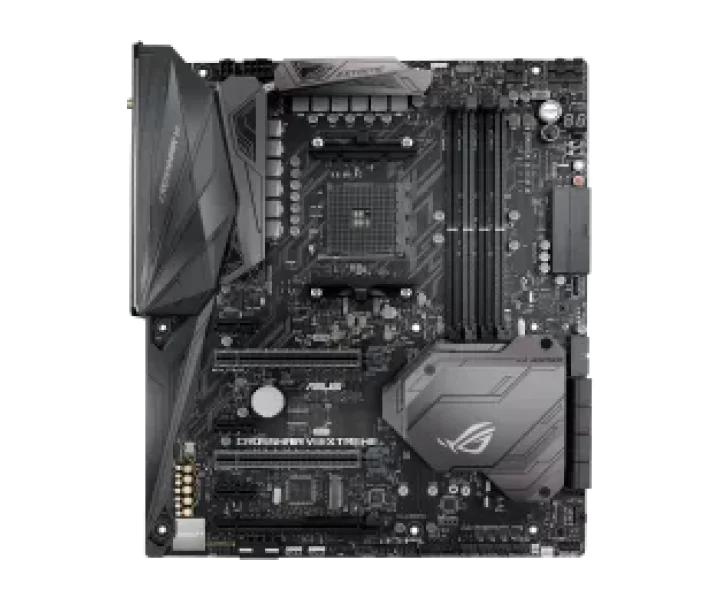

ROG CROSSHAIR VI EXTREME özellikleri ve fiyatları

ROG CROSSHAIR VI EXTREME teknik özellikleri

Model kodu

ROG CROSSHAIR VI EXTREME

İşlemci soketi

AM4

Anakart yonga seti

AMD X370

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors; Supports AM4 Socket 14nm CPU; Supports CPU up to 8 cores; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *; 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *; AMD 7th Generation A-Series/Athlon X4 Processors; Dual Channel Memory Architecture; * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *1; AMD X370 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *2; 3 x PCIe 2.0 x1 *2; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *1; AMD X370 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *2; 3 x PCIe 2.0 x1 *2; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1; AMD X370 chipset :; AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :; AMD 7th Generation A-Series/Athlon X4 Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- Sonic Studio III; - Supports up to 32-Bit/192kHz playback *4; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - ESS ES9023P; Audio Feature :; - Gold-plated jacks; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Diğer anakart özellikleri

- ASUS USB BIOS FlashBack; Overclocking Protection :; ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App; TPU; Gamer´s Guardian:; - SafeSlot; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Lighting Effects Synchronization with compatible ASUS ROG devices; - Aura Addressable Strip Header(s); ASUS Exclusive Features :; - AI Suite 3; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-DIMM; - ASUS Q-Connector; - ASUS C.P.R.(CPU Parameter Recall)

Boyutlar

12 inch x 10.6 inch ( 30.5 cm x 26.9 cm ); Extended ATX Form Factor

Kutu içeriği

1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant); 8 x SATA 6Gb/s cable(s); 1 x Fan Extension Card (3 x 4-pin fan out); 1 x Fan Extension card screw pack; 1 x Fan Extension card cable; 1 x 10-in-1 ROG cable label; 1 x SLI HB BRIDGE(2-WAY-M); 3 x Thermistor cable(s); User´s manual; 1 x ROG logo plate sticker; 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ROG big sticker; 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG coaster(s)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG CROSSHAIR VI EXTREME, CPU: AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors Supports AM4 Socket 14nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list, Chipset: AMD X370, Memory: 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * AMD 7th Generation A-Series/Athlon X4 Processors Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology *1 Supports NVIDIA 2-Way SLI Technology *1, Expansion Slots: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *1 AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *2 3 x PCIe 2.0 x1 *2 AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode), Storage: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1 AMD X370 chipset : AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: ROG GameFirst IV Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard, Wireless Data Network: Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO, Bluetooth: Bluetooth V4.2*3, Audio: - Sonic Studio III - Supports up to 32-Bit/192kHz playback *4 ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS ES9023P Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III, USB Ports: 5 x USB 2.0 port(s) (4 at back panel, black, 1 at mid-board) AMD X370 chipset : AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue), ROG Exclusive Features: USB BIOS FlashBack - One-click Overclocking - DirectKey KeyBot II - ClrCMOS - Power On - NexFET Power Block MOSFET ROG RAMDisk ROG RAMCache II - O.C. Profile Clear CMOS button ROG CloneDrive Slow Mode ReTry Button Safe Boot Button LN2 Mode GameFirst IV Mem TweakIt ROG CPU-Z Pre-mounted I/O Shield Overwolf Start Button Reset Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Extreme Tweaker, Special Features: - ASUS USB BIOS FlashBack Overclocking Protection : ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App TPU Gamer´s Guardian: - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector - ASUS C.P.R.(CPU Parameter Recall), Back I/O Ports: 6 x USB 3.2 Gen 1 (blue) 1 x USB 3.2 Gen 2 (black)USB Type-CTM, 1 x USB 3.2 Gen 2 (red)Type-A 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button(s) 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 5 x Gold-plated audio jacks, Internal I/O Ports: 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x W_OUT header 1 x 9 pin Monoblock sensor 1 x 4-pin EATX 12V_1 Power connector(s) 1 x ROG extension (ROG_EXT) header(s) 1 x 8-pin EATX 12V Power connector 1 x Aura Addressable Strip Header(s) 1 x W_PUMP+ connector (1 x 4-pin) 1 x System panel(s) (Q-Connector) 7 x ProbeIt Measurement Points 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x USB 3.1 Gen 2 front panel connector 8 x Radiator Fan Headers 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x W_IN header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button, Accessories: 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant) 8 x SATA 6Gb/s cable(s) 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card screw pack 1 x Fan Extension card cable 1 x 10-in-1 ROG cable label 1 x SLI HB BRIDGE(2-WAY-M) 3 x Thermistor cable(s) User´s manual 1 x ROG logo plate sticker 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s), BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Manageability: WfM 2.0, WOL by PME, PXE, Support Disc: Drivers AURA ROG GameFirst IV*5 ROG RAMDisk ROG RAMCache II ROG CPU-Z ROG Mem TweakIt ROG Keybot II Sonic Studio III Sonic Radar III Overwolf CloneDrive Kaspersky Anti-Virus DAEMON Tools Software Winzip ASUS Utilities, Operating System: Windows 10 64-bit, Form Factor: 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm ) Extended ATX Form Factor, Note: *1 Due to CPU limitation, AMD 7th Generation A-series/Athlon Processors support AMD 2-Way CrossFireX Technology only. The PCIEX8_2 slot shares bandwidth with M.2_2. SLI will not work if both slots are activated at the same time. Deactivate M.2_2 slot to run PCIEX8_2 at x8 and activate SLI. *2 The PCIEX4_3 slot shares bandwidth with the PCIEX1_1, PCIEX1_2, PCIEX1_3 slots *3 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0. *4 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *5 ROG GameFirst Technology is only available for Windows 10/8.1 64-bit

part Number

90MB0UD0-M0AAY0
