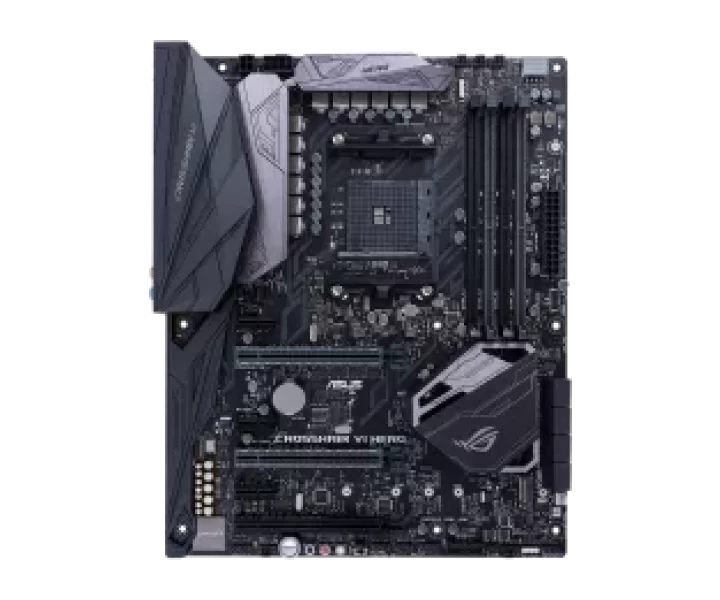

ROG CROSSHAIR VI HERO özellikleri ve fiyatları

ROG CROSSHAIR VI HERO teknik özellikleri

Model kodu

ROG CROSSHAIR VI HERO

İşlemci soketi

AM4

Anakart yonga seti

AMD X370

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/Ryzen with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

3rd and 2nd Gen AMD Ryzen Processors; 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *; 4 x DIMM, Max. 128GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *; 2nd and 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 1st Gen AMD Ryzen Processors; 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory; AMD 7th Generation A-series/Athlon Processors; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD X370 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; 2 x PCIe 3.0/2.0 x16 (x16 or dual x8); AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

PCIe şerit paylaşımı ve işlemci koşulları

AMD X370 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; 2 x PCIe 3.0/2.0 x16 (x16 or dual x8); AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD X370 chipset :; AMD 7th Generation A-series/Athlon Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode); 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :; 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- Sonic Studio III; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - ESS ES9023P; - Supports up to 32-Bit/192kHz playback *2; Audio Feature :; - Gold-plated jacks; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS,; ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,; F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Diğer anakart özellikleri

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App; TPU; Gamer´s Guardian:; - SafeSlot; ASUS Exclusive Features :; - AI Suite 3; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

12 inch x 9.6 inch ( cm x cm ); ATX Form Factor

Kutu içeriği

1 x 3D printing mount package; 1 x 10-in-1 ROG cable label; ASUS Q-Shield; 1 x SLI HB BRIDGE(2-WAY-M); User´s manual; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ROG big sticker; 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x ROG coaster(s)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG CROSSHAIR VI HERO, CPU: AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/Ryzen with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors * Refer to www.asus.com for CPU support list, Chipset: AMD X370, Memory: 3rd and 2nd Gen AMD Ryzen Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 4 x DIMM, Max. 128GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd and 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 1st Gen AMD Ryzen Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory AMD 7th Generation A-series/Athlon Processors Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology *3 Supports AMD CrossFireX Technology, Expansion Slots: AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1 AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode), Storage: AMD X370 chipset : AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: ROG GameFirst IV Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard, Audio: - Sonic Studio III ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS ES9023P - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III, USB Ports: 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) 4 x USB 3.0 port(s) (4 at back panel, blue) AMD X370 chipset : AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors : 2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM) 1 x USB 3.1 Gen 2 front panel connector port(s) 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board) ASMedia USB 3.1 Gen 2 controller :, ROG Exclusive Features: BIOS FlashBack Loadline Calibration - One-click Overclocking - DirectKey KeyBot II - ClrCMOS - Power On - NexFET Power Block MOSFET ROG RAMDisk ROG RAMCache II - O.C. Profile Clear CMOS button ROG CloneDrive Slow Mode ReTry Button Safe Boot Button LN2 Mode GameFirst IV Mem TweakIt ROG CPU-Z Overwolf Start Button Reset Button ROG Aura Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Extreme Tweaker, Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App TPU Gamer´s Guardian: - SafeSlot ASUS Exclusive Features : - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 1 x USB 3.2 Gen 2 (black)USB Type-CTM, 1 x USB 3.2 Gen 2 (red)Type-A 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button(s) 8 x USB 3.2 Gen 1 (blue) 1 x M.2 Wi-Fi Slot 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 5 x Gold-plated audio jacks, Internal I/O Ports: 1 x 4-pin EATX 12V_1 Power connector(s) 1 x ROG extension (ROG_EXT) header(s) 2 x 3D Mount screw port(s) 1 x 8-pin EATX 12V Power connector 1 x USB 3.1 Gen 2 front panel connector 2 x Aura RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button, Accessories: 1 x 3D printing mount package 1 x 10-in-1 ROG cable label ASUS Q-Shield 1 x SLI HB BRIDGE(2-WAY-M) User´s manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x ROG coaster(s), BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Manageability: WfM 2.0, WOL by PME, PXE, Support Disc: Drivers AURA ROG GameFirst IV*3 ROG RAMDisk ROG RAMCache II ROG CPU-Z ROG Mem TweakIt ROG Keybot II Sonic Studio III Sonic Radar III Overwolf CloneDrive Kaspersky Anti-Virus DAEMON Tools Software Winzip ASUS WebStorage ASUS Utilities, Operating System: Windows 10 64-bit, Form Factor: 12 inch x 9.6 inch ( cm x cm ) ATX Form Factor, Note: *1 PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *3 Due to CPU limitation, NVIDIA 2-Way SLI Technology is not supported for AMD 7th Gen A-series/Athlon Processors.

part Number

90MB0SC0-M0AAY0
