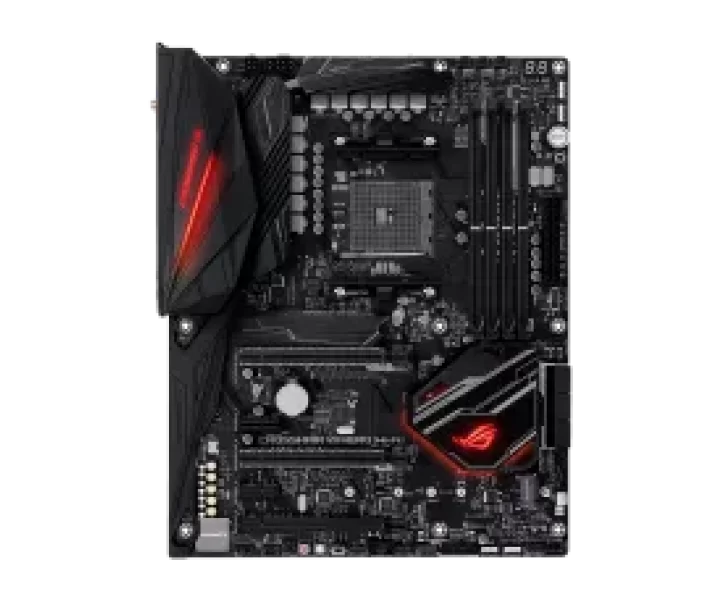

ROG CROSSHAIR VII HERO (WI-FI) özellikleri ve fiyatları

ROG CROSSHAIR VII HERO (WI-FI) teknik özellikleri

Model kodu

ROG CROSSHAIR VII HERO (WI-FI)

İşlemci soketi

AM4

Anakart yonga seti

AMD X470

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/Athlon X4 Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

3rd and 2nd Gen AMD Ryzen Processors; 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; 4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory; AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors; AMD 7th Generation A-Series/Athlon X4 Processors; Dual Channel Memory Architecture

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2; AMD X470 chipset; 1 x PCIe 2.0 x16 (max at x4 mode); AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode); 2 x PCIe 2.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2; AMD X470 chipset; 1 x PCIe 2.0 x16 (max at x4 mode); AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode); 2 x PCIe 2.0 x1

M.2 uyumluluğu ve şerit paylaşımı

AMD 7th Generation A-Series/Athlon X4 Processors : *3; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode); AMD X470 chipset :; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- Sonic Studio III; - Supports up to 32-Bit/192kHz playback *5; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - ESS ES9023P; Audio Feature :; - Gold-plated jacks; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,; ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,; F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search

Diğer anakart özellikleri

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App; Gamer´s Guardian:; - SafeSlot; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Addressable Strip Header(s); ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

2 x M.2 Screw Package; 1 x SLI HB BRIDGE(2-WAY-M); User´s manual; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x ROG big sticker; 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG coaster(s)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG CROSSHAIR VII HERO (WI-FI), CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/Athlon X4 Processors * Refer to www.asus.com for CPU support list, Chipset: AMD X470, Memory: 3rd and 2nd Gen AMD Ryzen Processors 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors AMD 7th Generation A-Series/Athlon X4 Processors Dual Channel Memory Architecture, Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology *1 AMD Ryzen with Radeon Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors Supports AMD 3-Way CrossFireX Technology Supports AMD CrossFireX Technology, Expansion Slots: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2 AMD X470 chipset 1 x PCIe 2.0 x16 (max at x4 mode) AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) 2 x PCIe 2.0 x1, Storage: AMD 7th Generation A-Series/Athlon X4 Processors : *3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X470 chipset : AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: ROG GameFirst IV Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard, Wireless Data Network: Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO, Bluetooth: Bluetooth V4.2*4, Audio: - Sonic Studio III - Supports up to 32-Bit/192kHz playback *5 ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS ES9023P Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III, USB Ports: AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD X470 chipset : 2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM) 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia USB 3.1 Gen 2 controller : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board), ROG Exclusive Features: USB BIOS FlashBack MemOK! Button - NexFET Power Block MOSFET ROG RAMDisk ROG RAMCache II Clear CMOS button Slow Mode ReTry Button Safe Boot Button LN2 Mode GameFirst IV Mem TweakIt ROG CPU-Z Overwolf Start Button Reset Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Extreme Tweaker, Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer´s Guardian: - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB 3.2 (black)USB Type-CTM 1 x USB 3.2 Gen 2 (red)Type-A 1 x USB BIOS FlashBack Button(s) 8 x USB 3.2 Gen 1 (blue) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1) 1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 5 x Gold-plated audio jacks, Internal I/O Ports: 1 x 4-pin EATX 12V_1 Power connector(s) 1 x LN2 Mode switch(es) 1 x ROG extension (ROG_EXT) header(s) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x 8-pin EATX 12V Power connector 2 x Aura Addressable Strip Header(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x Slow Mode jumper(s) 1 x USB 3.1 Gen 2 front panel connector 2 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x Reset button(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), Accessories: 2 x M.2 Screw Package 1 x SLI HB BRIDGE(2-WAY-M) User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s), BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search, Manageability: WOL, PXE, Support Disc: Drivers AURA ROG GameFirst IV ROG RAMDisk ROG RAMCache II ROG CPU-Z ROG MemTweakIt Sonic Studio III Sonic Radar III Overwolf Kaspersky Anti-Virus WinRAR Fan Xpert 4 DAEMON Tools Software ASUS Utilities, Operating System: Windows 7 64-bit *7 Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: *1 Due to CPU limitation, NVIDIA 2-Way SLI Technology is not supported for AMD 7th Gen A-series/Athlon Processors. *2 The PCIE_x8/x4_2 slot shares bandwidth with the M.2_2 slot. *3 M.2_2 is unsupported for these processors. *4 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0. *5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7. *6 This board does not support onboard VGA output. *7 Windows 7 64-bit is only supported when using AMD Ryzen 2nd Generation/ Ryzen 1st Generation / 7th Generation A-series/ Athlon Processors.

part Number

90MB0XF0-M0AAY0
