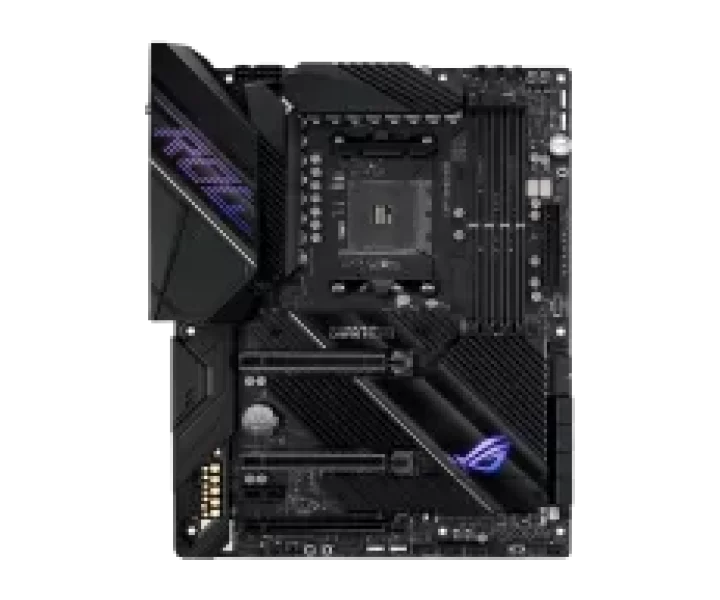

ROG Crosshair VIII Dark Hero özellikleri ve fiyatları

ROG Crosshair VIII Dark Hero teknik özellikleri

Model kodu

ROG Crosshair VIII Dark Hero

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory; 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; AMD Ryzen 4000 G-Series Desktop Processors; AMD RyzenTM 2000 Series Processors; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 4000 G-Series / 2000 Series Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; 2 x PCIe 4.0 x16 (x16 or dual x8); 2 x PCIe 3.0 x16 (x16 or dual x8); 1 x PCIe 3.0 x16 (x8 mode); AMD X570 chipset; 1 x PCIe 4.0 x16; 1 x PCIe 4.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 4000 G-Series / 2000 Series Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; 2 x PCIe 4.0 x16 (x16 or dual x8); 2 x PCIe 3.0 x16 (x16 or dual x8); 1 x PCIe 3.0 x16 (x8 mode); AMD X570 chipset; 1 x PCIe 4.0 x16; 1 x PCIe 4.0 x1

M.2 uyumluluğu ve şerit paylaşımı

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD X570 chipset :; 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support; 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; - Dedicated audio PCB layers; - Unique de-pop circuit; - Audio Cover; - Premium Japanese audio capacitors; - Power pre-regulator: Reduces power input noise to ensure consistent performance; - Impedance sense for front and rear headphone outputs; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - ESS ES9023P; - Supports up to 32-Bit/192kHz playback; Audio Feature :; - SupremeFX Shielding Technology; - Gold-plated jacks; - Optical S/PDIF out port(s) at back panel; * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Ses yongası

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

8 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Diğer anakart özellikleri

- ASUS USB BIOS FlashBack; AURA :; - Aura RGB Strip Headers; - Addressable Gen 2 Header; ASUS EZ DIY :; ASUS Q-Design :; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x M.2 SSD screw package(s); User´s manual; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ROG big sticker; 1 x Q-Connector; 1 x Wi-Fi Antenna(s); 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG coaster(s); 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Crosshair VIII Dark Hero, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD X570, Memory: 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen 4000 G-Series Desktop Processors AMD RyzenTM 2000 Series Processors Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> AMD Ryzen 3000 G-Series/ 2000 G-Series Desktop Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1, Storage: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: ASUS LANGuard Intel I211-AT Realtek RTL8125-CG 2.5G LAN, Wireless Data Network: Supports PCIe interface 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160, Bluetooth: Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later., Audio: ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Dedicated audio PCB layers - Unique de-pop circuit - Audio Cover - Premium Japanese audio capacitors - Power pre-regulator: Reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - High quality120dBSNR stereo playback outputand113dBSNR recording input - ESS ES9023P - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio., USB Ports: AMD Ryzen5000 Series / 4000 G-Series/ 3000 Series Processors : AMD Ryzen3000 G-Series / 2000 Series / 2000 G-Series Processors : 4 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) 6 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s), Special Features: - ASUS USB BIOS FlashBack AURA : - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS EZ DIY : ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 1 x BIOS FlashBack Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port, Internal I/O Ports: 2 x M.2 Socket 3 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s), Accessories: 1 x M.2 SSD screw package(s) User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x ROG Thank you card, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, Manageability: WOL, PXE, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB1760-M0EAY0
