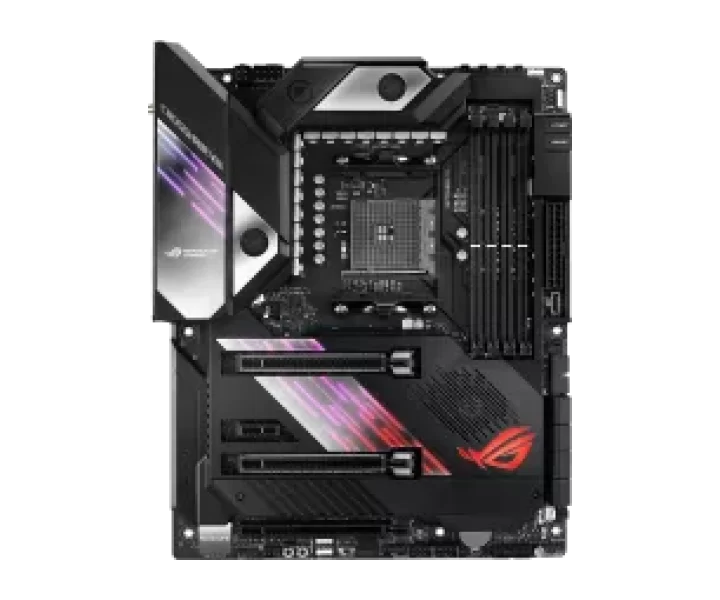

ROG Crosshair VIII Formula özellikleri ve fiyatları

ROG Crosshair VIII Formula teknik özellikleri

Model kodu

ROG Crosshair VIII Formula

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory; 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory; AMD RyzenTM 4000 G-Series Processor; AMD RyzenTM 2000 Series Processors; 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory; 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; AMD RyzenTM 4000 G-Series / 2000 Series Processors; 2 x PCIe 4.0 x16 (x16 or dual x8); 2 x PCIe 3.0 x16 (x16 or dual x8); 1 x PCIe 3.0 x16 (x8 mode); AMD X570 chipset; 1 x PCIe 4.0 x16 (x4 mode); 1 x PCIe 4.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; AMD RyzenTM 4000 G-Series / 2000 Series Processors; 2 x PCIe 4.0 x16 (x16 or dual x8); 2 x PCIe 3.0 x16 (x16 or dual x8); 1 x PCIe 3.0 x16 (x8 mode); AMD X570 chipset; 1 x PCIe 4.0 x16 (x4 mode); 1 x PCIe 4.0 x1

M.2 uyumluluğu ve şerit paylaşımı

AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD X570 chipset :; 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support; 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Supports : Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - ESS ES9023P; - Supports up to 32-Bit/192kHz playback *; Audio Feature :; - Gold-plated jacks; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link; * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

Ses kanalı yapılandırması

8 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Diğer anakart özellikleri

- USB BIOS FlashBack; - BIOS FlashBack Button; ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App; Gamer´s Guardian:; - DRAM Overcurrent Protection; - ESD Guards on LAN, Audio,and USB ports; ASUS SafeSlot - Protect your graphics card Investment; LiveDash OLED; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - ASUS CrashFree BIOS 3; - Armoury Crate; - Pre-mounted I/O Shield; - ASUS NODE: hardware control interface; - Clear CMOS Button; ASUS Q-Design :; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

User´s manual; 1 x ROG logo plate sticker; 4 x SATA power cable; 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ROG big sticker; 1 x Q-Connector; 1 x Wi-Fi Antenna(s); 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG coaster(s); 2 x ROG weave SATA 6G cable; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Crosshair VIII Formula, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD X570, Memory: 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory AMD RyzenTM 4000 G-Series Processor AMD RyzenTM 2000 Series Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> AMD Ryzen 3000 G-Series/ 2000 G-Series Desktop Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors AMD RyzenTM 4000 G-Series / 2000 Series Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1, Storage: AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Intel I211-AT Aquantia AQC111C 5G LAN ASUS LAN Guard ROG GameFirst V Technology, Wireless Data Network: Intel Wi-Fi 6 AX200 Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed, Bluetooth: Bluetooth 5.0, Audio: ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Supports : Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS ES9023P - Supports up to 32-Bit/192kHz playback * Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio., USB Ports: AMD Ryzen5000 Series / 4000 G-Series/ 3000 Series Processors : AMD Ryzen3000 G-Series / 2000 Series / 2000 G-Series Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s), ROG Exclusive Features: USB BIOS FlashBack ROG RGB Armor Start Button Reset Button ROG Aura Extreme Engine Digi+ : - IR3555 PoweIRstage - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Safe Boot button - Slow Mode - LN2 Mode UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Overwolf, Special Features: - USB BIOS FlashBack - BIOS FlashBack Button ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer´s Guardian: - DRAM Overcurrent Protection - ESD Guards on LAN, Audio,and USB ports ASUS SafeSlot - Protect your graphics card Investment LiveDash OLED AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - Clear CMOS Button ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 1 x USB BIOS FlashBack Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 1 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port, Internal I/O Ports: 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports 1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Node Connector(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector, Accessories: User´s manual 1 x ROG logo plate sticker 4 x SATA power cable 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, Manageability: WOL, PXE, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB10Z0-M0AAY0
