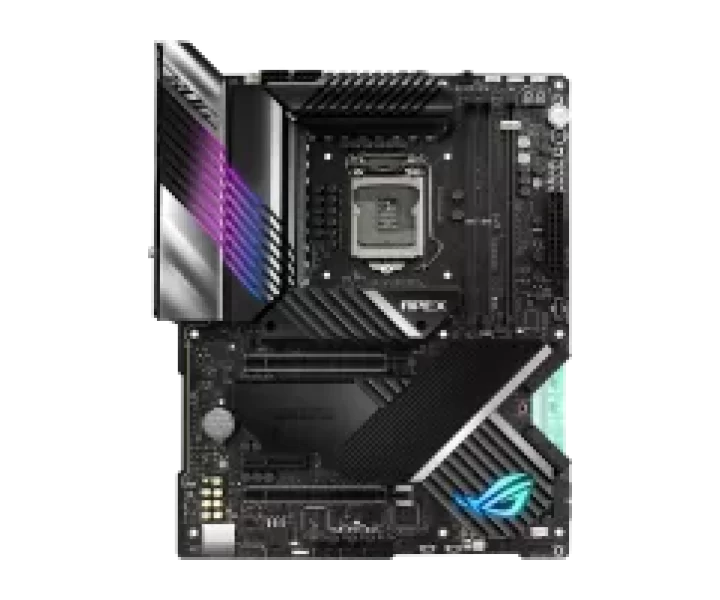

ROG MAXIMUS XIII APEX özellikleri ve fiyatları

ROG MAXIMUS XIII APEX teknik özellikleri

Model kodu

ROG MAXIMUS XIII APEX

İşlemci soketi

LGA1200

Anakart yonga seti

Z590

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors

Desteklenen bellek yapılandırmaları

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Supports Intel Extreme Memory Profile (XMP); OptiMem III; * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

PCIe yuvaları

2 x PCIe 3.0 x16 (x16, x8/x8); Intel 11th &10th Gen Processors*; 2 x PCIe 4.0/3.0 x16 slots**; - Intel 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 modes; - Intel 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 modes; Intel Z590 Chipset; 1 x PCIe 3.0 x4 slot***; * Supports PCIe bandwidth bifurcation for RAID on CPU function.; ** PCIEX16_1 and PCIEX16_2 share bandwidth with M.2_2. PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode when M.2_2 runs x4 mode.; *** PCIEX4 slot shares bandwidth with SATA6G_56. PCIEX4 slot will run x2 mode when SATA6G_56 is populated.

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 3.0 x16 (x16, x8/x8); Intel 11th &10th Gen Processors*; 2 x PCIe 4.0/3.0 x16 slots**; - Intel 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 modes; - Intel 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 modes; Intel Z590 Chipset; 1 x PCIe 3.0 x4 slot***; * Supports PCIe bandwidth bifurcation for RAID on CPU function.; ** PCIEX16_1 and PCIEX16_2 share bandwidth with M.2_2. PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode when M.2_2 runs x4 mode.; *** PCIEX4 slot shares bandwidth with SATA6G_56. PCIEX4 slot will run x2 mode when SATA6G_56 is populated.

M.2 uyumluluğu ve şerit paylaşımı

Intel11th &10th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; M.2_2 slot (Key M), type 2242/2260/2280*; - Intel 11th processors supports PCIe 4.0 x4 mode; - Intel 10th processors supports PCIe 3.0 x4 mode; Intel Z590 Chipset; DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**; DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode); 8 x SATA 6Gb/s ports***; RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.; To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.; * M.2_2 slot shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 runs x4 mode, PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode.; ** When DIMM.2_1 is operating in SATA mode, SATA6G_2 will be disabled.; *** SATA6G_56 shares bandwidth with PCIEX4 slot. When SATA6G_56 is populated, PCIEX4 slot will run x2 mode and SATA6G_56 will be disabled when PCIEX4 slot runs x4 mode.

RAID desteği

RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

SATA bağlantı sayısı

8

USB bağlantısı

Rear USB: Total 10 ports; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 5 x USB 3.2 Gen 2 ports (5 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet

Wi-Fi

Intel Wi-Fi 6E

Ses çıkışı

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium Japanese audio capacitors; - Audio cover

Ses yongası

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 5 x USB 3.2 Gen 2 ports (5 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 1 x ASUS Wi-Fi Module; 1 x Intel I225-V 2.5Gb Ethernet port; 5 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button; 1 x PS/2 Keyboard (purple) port; 1 x PS/2 Mouse (green) port

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 2 x 4-pin Full Speed Fan headers; 1 x W_PUMP+ header; 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 1 x 6-pin PCIe Graphics Card connector; Storage related; 2 x M.2 slots (Key M); 1 x DIMM.2 slot supports 2 x M.2 slots (Key M); 8 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 3 x USB 2.0 headers support additional 6 USB 2.0 ports; Miscellaneous; 1 x 80 Light Bar jumper; 3 x AURA Addressable Gen 2 headers; 1 x AURA RGB header; 1 x BIOS Switch button; 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x FS Mode switch; 1 x LN2 Mode jumper; 1 x Pause switch; 8 x ProbeIt Measurement Points; 1 x ReTry button; 2 x RSVD switch; 1 x Safe Boot button; 1 x Slow Mode switch; 1 x Speaker header; 1 x Start button; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt header; 1 x V_LATCH switch

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 2 x 4-pin Full Speed Fan headers; 1 x W_PUMP+ header

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors

BIOS özellikleri

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme OC Kit; - FlexKey button; - LN2 Mode; - Probelt; - ReTry button; - Safe boot button; - Start button; - Slow Mode; Extreme Engine Digi+; - 10K Black Metallic Capacitors; - MicroFine Alloy Choke; ASUS Q-Design; - Q-Code; - Q-Connector; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 RGB header(s); Dual BIOS; ASUS HYDRANODE; - 3 x Chassis fan support* (CHA_FAN1P, CHA_FAN2P, CHA_FAN3P); * Visit ASUS Website for the latest compatibility list.

Boyutlar

ATX; 30.5cm x 24.4cm

Kutu içeriği

Cables; 1 x ARGB RGB extension cable; 1 x RGB extension cable; 8 x SATA 6Gb/s cables; 1 x 3-in-1 Thermistor cables pack; ROG DIMM.2 with Heatsink; 1 x ROG DIMM.2 with heatsink; 1 x M.2 pad for ROG DIMM.2; 1 x M.2 screw package for ROG DIMM.2; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x M.2 SSD screw package(s); 1 x Q-connector; 1 x ROG key chain; 1 x ROG stickers; 1 x ROG thank you card; 1 x ROG Graphics card holder; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG MAXIMUS XIII APEX, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Chipset: Z590, Memory: DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Expansion Slots: 2 x PCIe 3.0 x16 (x16, x8/x8) Intel 11th &10th Gen Processors* 2 x PCIe 4.0/3.0 x16 slots** - Intel 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 modes - Intel 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 modes Intel Z590 Chipset 1 x PCIe 3.0 x4 slot*** * Supports PCIe bandwidth bifurcation for RAID on CPU function. ** PCIEX16_1 and PCIEX16_2 share bandwidth with M.2_2. PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode when M.2_2 runs x4 mode. *** PCIEX4 slot shares bandwidth with SATA6G_56. PCIEX4 slot will run x2 mode when SATA6G_56 is populated., Multi-GPU Support: NVIDIA 2-Way SLI Technology* *Support varies with different graphics cards, Storage: Intel11th &10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280* - Intel 11th processors supports PCIe 4.0 x4 mode - Intel 10th processors supports PCIe 3.0 x4 mode Intel Z590 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) 8 x SATA 6Gb/s ports*** RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * M.2_2 slot shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 runs x4 mode, PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode. ** When DIMM.2_1 is operating in SATA mode, SATA6G_2 will be disabled. *** SATA6G_56 shares bandwidth with PCIEX4 slot. When SATA6G_56 is populated, PCIEX4 slot will run x2 mode and SATA6G_56 will be disabled when PCIEX4 slot runs x4 mode., Ethernet: 1 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: Intel Wi-Fi 6E, USB: Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports, Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x 6-pin PCIe Graphics Card connector Storage related 2 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x FS Mode switch 1 x LN2 Mode jumper 1 x Pause switch 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header 1 x V_LATCH switch, Special Features: Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Dual BIOS ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P, CHA_FAN2P, CHA_FAN3P) * Visit ASUS Website for the latest compatibility list., Software Features: ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86, BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 8 x SATA 6Gb/s cables 1 x 3-in-1 Thermistor cables pack ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 1 x M.2 screw package for ROG DIMM.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card 1 x ROG Graphics card holder Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64bit, Form Factor: ATX 30.5cm x 24.4cm

part Number

90MB16E0-M0AAY0
