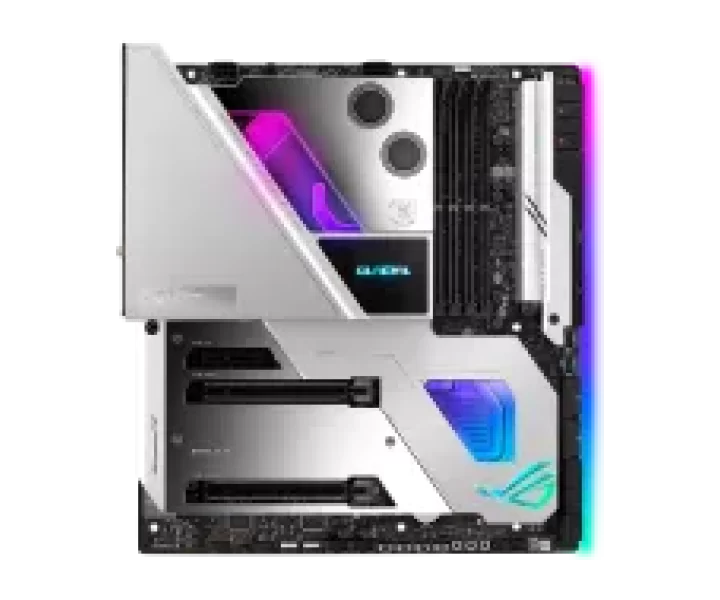

ROG Maximus XIII Extreme Glacial özellikleri ve fiyatları

ROG Maximus XIII Extreme Glacial teknik özellikleri

Model kodu

ROG Maximus XIII Extreme Glacial

İşlemci soketi

LGA1200

Anakart yonga seti

Z590

Anakart biçimi

E-ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4; 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem III; * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 11th & 10th Gen Processors; 2 x PCIe 4.0/3.0 x16 slot(s); - Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 mode(s); - Intel 10th Core processors support PCIe 3.0 x16 or x8/x8 mode(s); Intel Z590 Chipset; 1 x PCIe 3.0 x4 slot*; * PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.

PCIe şerit paylaşımı ve işlemci koşulları

Intel 11th & 10th Gen Processors; 2 x PCIe 4.0/3.0 x16 slot(s); - Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 mode(s); - Intel 10th Core processors support PCIe 3.0 x16 or x8/x8 mode(s); Intel Z590 Chipset; 1 x PCIe 3.0 x4 slot*; * PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.

M.2 uyumluluğu ve şerit paylaşımı

Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports; Intel11th & 10th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Intel 11th Core processors support PCIe 4.0 x4 mode; - Intel 10th Core processors support PCIe 3.0 x4 mode; M.2_2 slot (Key M), type 2242/2260/2280; - Intel 11th Core processors support PCIe 4.0 x4 mode; - Intel 10th Core processors support PCIe 3.0 x4 mode; M.2_3 slot (Key M), type 2242/2260/2280; - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; Intel Z590 Chipset; DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes); DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*; 6 x SATA 6Gb/s ports; Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.; To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.; * DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode.

RAID desteği

Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB: Total 10 ports; 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support; 8 x USB 3.2 Gen 2 port(s) (8 x Type-A); Front USB: Total 10 ports; 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C; 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C; 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Marvell 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet

Wi-Fi

Intel Wi-Fi 6E

Ses çıkışı

Audio Features; - SupremeFX Shielding Technology; - ESS SABRE9018Q2C DAC/AMP; - LED-illuminated audio jacks; - Rear optical S/PDIF out port; - Premium Japanese audio capacitors; - Audio cover

Arka panel bağlantıları

2 x Thunderbolt 4 USB Type-C port(s); 8 x USB 3.2 Gen 2 port(s) (8 x Type-A); 1 x HDMI port; 1 x ASUS Wi-Fi Module; 1 x Marvell AQtion AQC113CS 10Gb Ethernet; 1 x Intel I225-V 2.5Gb Ethernet; 5 x LED-illuminated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 2 x 4-pin Chassis Fan header(s); 2 x 4-pin Radiator Fan header(s); 2 x W_PUMP+ header(s); 1 x WB_SENSOR header(s); 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 1 x 6-pin PCIe Graphics Card connector; Storage related; 3 x M.2 slots (Key M); 1 x DIMM.2 slot supports 2 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C); 1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C); 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports; Miscellaneous; 3 x AURA Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x WB_ADD header(s); 1 x BIOS Switch button; 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x LN2 Mode jumper; 8 x ProbeIt Measurement Points; 1 x ReTry button; 2 x RSVD switch; 1 x RSVD header; 1 x Safe Boot button; 1 x Slow Mode switch; 1 x Speaker header; 1 x Start button; 1 x V_LATCH switch; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 2 x 4-pin Chassis Fan header(s); 2 x 4-pin Radiator Fan header(s); 2 x W_PUMP+ header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

* Graphics specifications may vary between CPU types.; ** Only Intel 11th Core processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.

BIOS özellikleri

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme OC Kit; - FlexKey button; - LN2 Mode; - Probelt; - ReTry button; - Safe boot button; - Start button; - Slow Mode; Extreme Engine Digi+; - 10K Black Metallic Capacitors; - MicroFine Alloy Choke; ASUS Q-Design; - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; AURA Sync; - ROG AURA sync backplate; - AURA RGB header(s); - Addressable Gen 2 RGB header(s); Dual BIOS; OLED 2"; ASUS HYDRANODE; - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P); - 2 x USB2.0 port support* (USB_EP1,USB_EP3); * Visit ASUS Website for the latest compatibility list.

Boyutlar

E-ATX; 30.5cm x 27.7cm

Kutu içeriği

Cables; 1 x 1-to-3 ARGB splitter cable; 2 x 1-to-4 fan splitter cable; 1 x RGB extension cable; 3 x ROG weave SATA 6G cables; 1 x 3-in-1 Thermistor cables pack; ROG Fan Controller; 1 x ROG Fan Controller; 1 x Fan EXT PWR cable; 1 x ARGB input cable; 1 x USB input cable; 1 x ROG Fan Controller 3M Mounting tape; 1 x Fan Controller manual; ROG DIMM.2 with Heatsink; 1 x ROG DIMM.2 with heatsink; 1 x M.2 pad for ROG DIMM.2; 2 x M.2 screw package for ROG DIMM.2; Additional Cooling Kit; 1 x Monoblock; 3 x Screw package for monoblock; 1 x Thermal pad for monoblock; 1 x Fittings for monoblock; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x M.2 Rubber Package(s); 1 x M.2 SSD screw package(s); 1 x Q-connector; 1 x ROG CLAVIS DAC; 1 x ROG key chain; 1 x ROG logo plate stickers; 1 x ROG screwdriver; 1 x ROG stickers; 1 x ROG thank you card; 1 x ROG Graphics card holder; Installation Media; 1 x USB drive with utilities and drivers; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Maximus XIII Extreme Glacial, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z590, Memory: 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Graphics: * Graphics specifications may vary between CPU types. ** Only Intel 11th Core processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update., Expansion Slots: Intel 11th & 10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 mode(s) - Intel 10th Core processors support PCIe 3.0 x16 or x8/x8 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x4 slot* * PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode., Multi-GPU Support: NVIDIA 2-Way SLI Technology* *Support varies with different graphics cards, Storage: Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 11th Core processors support PCIe 4.0 x4 mode - Intel 10th Core processors support PCIe 3.0 x4 mode M.2_2 slot (Key M), type 2242/2260/2280 - Intel 11th Core processors support PCIe 4.0 x4 mode - Intel 10th Core processors support PCIe 3.0 x4 mode M.2_3 slot (Key M), type 2242/2260/2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)* 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode., Ethernet: 1 x Marvell 10Gb Ethernet 1 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: Intel Wi-Fi 6E, USB: Rear USB: Total 10 ports 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) Front USB: Total 10 ports 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Audio: Audio Features - SupremeFX Shielding Technology - ESS SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover, Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C port(s) 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion AQC113CS 10Gb Ethernet 1 x Intel I225-V 2.5Gb Ethernet 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan header(s) 2 x W_PUMP+ header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x WB_ADD header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x V_LATCH switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header, Special Features: Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Dual BIOS OLED 2" ASUS HYDRANODE - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) - 2 x USB2.0 port support* (USB_EP1,USB_EP3) * Visit ASUS Website for the latest compatibility list., Software Features: ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation - OLED Display AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger DAEMON Tools MyAsus WinRAR UEFI BIOS MemTest86 AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x 1-to-3 ARGB splitter cable 2 x 1-to-4 fan splitter cable 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Monoblock 3 x Screw package for monoblock 1 x Thermal pad for monoblock 1 x Fittings for monoblock Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG CLAVIS DAC 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card 1 x ROG Graphics card holder Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User manual, Operating System: Windows 10 64bit, Form Factor: E-ATX 30.5cm x 27.7cm

part Number

90MB1730-M0AAY0
