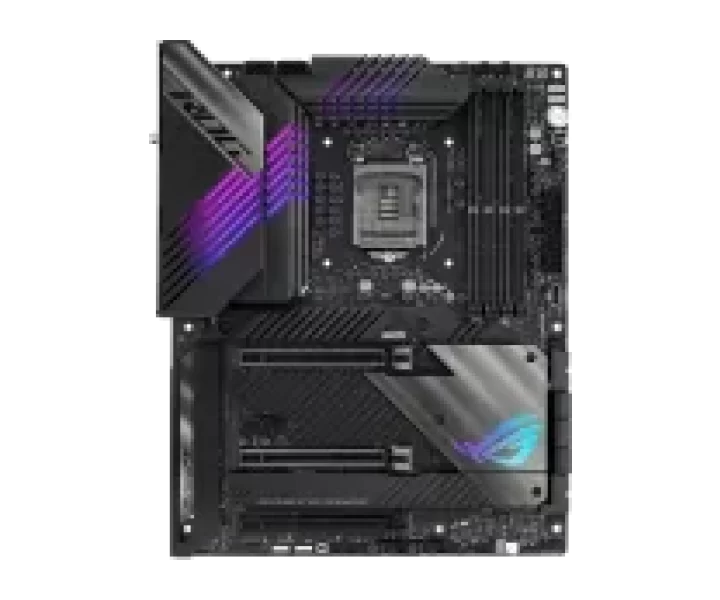

ROG MAXIMUS XIII HERO özellikleri ve fiyatları

ROG MAXIMUS XIII HERO teknik özellikleri

Model kodu

ROG MAXIMUS XIII HERO

İşlemci soketi

LGA1200

Anakart yonga seti

Z590

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4); Intel 11th &10th Gen Processors2 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s); - Intel10th Core processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. **PCIEX16_3 shares bandwidth with SATA6G_12 and SATA6G_34. When PCIEX16_ 3 is populated SATA6G_12 and SATA6G_34 will be disbabled.; When PCIEX16_3 run at default (x2) mode, SATA6G_34 is disabled.; When PCIEX16_3 run at x4 mode, SATA6G_12 and SATA6G_34 are disabled.

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4); Intel 11th &10th Gen Processors2 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s); - Intel10th Core processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. **PCIEX16_3 shares bandwidth with SATA6G_12 and SATA6G_34. When PCIEX16_ 3 is populated SATA6G_12 and SATA6G_34 will be disbabled.; When PCIEX16_3 run at default (x2) mode, SATA6G_34 is disabled.; When PCIEX16_3 run at x4 mode, SATA6G_12 and SATA6G_34 are disabled.

M.2 uyumluluğu ve şerit paylaşımı

Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports; Intel11th &10th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110; - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; M.2_2 slot (Key M), type 2242/2260/2280**; - Intel 11th Core processors support PCIe 4.0 x4 mode; - Intel 10th Core processors support PCIe 3.0 x4 mode; Intel Z590 Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*; 6 x SATA 6Gb/s ports; Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.; To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.; *When M.2_4 is pupulated, SATA6G_56 will be disabled.; **M.2_2 shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 is enabled, PCIEX16_1 will run at x8 mode and PCIEX16_2 will run at x4 mode.

RAID desteği

Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB: Total 10 ports; 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support; 6 x USB 3.2 Gen 2 port(s) (6 x Type-A); 2 x USB 2.0 port(s) (2 x Type-A); 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C); 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

2 x Intel 2.5Gb Ethernet

Wi-Fi

2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2

Ses çıkışı

Audio Features; - SupremeFX Shielding Technology; - ESS SABRE9018Q2C DAC/AMP; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium Japanese audio capacitors; - Audio cover

Arka panel bağlantıları

2 x Thunderbolt 4 USB Type-C port(s); 6 x USB 3.2 Gen 2 port(s) (6 x Type-A); 2 x USB 2.0 port(s) (2 x Type-A); 1 x HDMI port; 1 x ASUS Wi-Fi Module; 2 x Intel I225-V 2.5Gb Ethernet; 5 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 3 x 4-pin Chassis Fan header(s); 1 x 4-pin H_AMP Fan header(s); 1 x W_PUMP+ header(s); 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; Storage related; 4 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C); 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports; Miscellaneous; 3 x AURA Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x ReTry button; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x Start button; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 3 x 4-pin Chassis Fan header(s); 1 x 4-pin H_AMP Fan header(s); 1 x W_PUMP+ header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

* Graphics specifications may vary between CPU types.; ** Only Intel 11th Core processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme OC Kit; - FlexKey button; - ReTry button; - Start button; Extreme Engine Digi+; - 10K Black Metallic Capacitors; - MicroFine Alloy Choke; ASUS Q-Design; - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 RGB header(s); ASUS HYDRANODE; - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P); * Visit ASUS Website for the latest compatibility list.

Boyutlar

ATX; 30.5cm x 24.4cm

Kutu içeriği

Cables; 1 x ARGB RGB extension cable; 1 x RGB extension cable; 4 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x M.2 SSD screw package(s); 1 x Q-connector; 1 x ROG key chain; 1 x ROG Graphics card holder; 1 x ROG stickers; 1 x ROG thank you card; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG MAXIMUS XIII HERO, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z590, Memory: DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types., Graphics: * Graphics specifications may vary between CPU types. ** Only Intel 11th Core processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates., Expansion Slots: 2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel 11th &10th Gen Processors2 x PCIe 4.0/3.0 x16 slot(s)* - Intel 11th Core processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) - Intel10th Core processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. **PCIEX16_3 shares bandwidth with SATA6G_12 and SATA6G_34. When PCIEX16_ 3 is populated SATA6G_12 and SATA6G_34 will be disbabled. When PCIEX16_3 run at default (x2) mode, SATA6G_34 is disabled. When PCIEX16_3 run at x4 mode, SATA6G_12 and SATA6G_34 are disabled., Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology* *Support varies with different graphics cards, Storage: Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th &10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280** - Intel 11th Core processors support PCIe 4.0 x4 mode - Intel 10th Core processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. *When M.2_4 is pupulated, SATA6G_56 will be disabled. **M.2_2 shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 is enabled, PCIEX16_1 will run at x8 mode and PCIEX16_2 will run at x4 mode., Ethernet: 2 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2, USB: Rear USB: Total 10 ports 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Audio: Audio Features - SupremeFX Shielding Technology - ESS SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover, Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x ASUS Wi-Fi Module 2 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x 4-pin H_AMP Fan header(s) 1 x W_PUMP+ header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header, Special Features: Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list., Software Features: ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger DAEMON Tools MyASUS WinRAR UEFI BIOS MemTest86 AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG key chain 1 x ROG Graphics card holder 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64bit, Form Factor: ATX 30.5cm x 24.4cm

part Number

90MB15X0-M0AAY0
