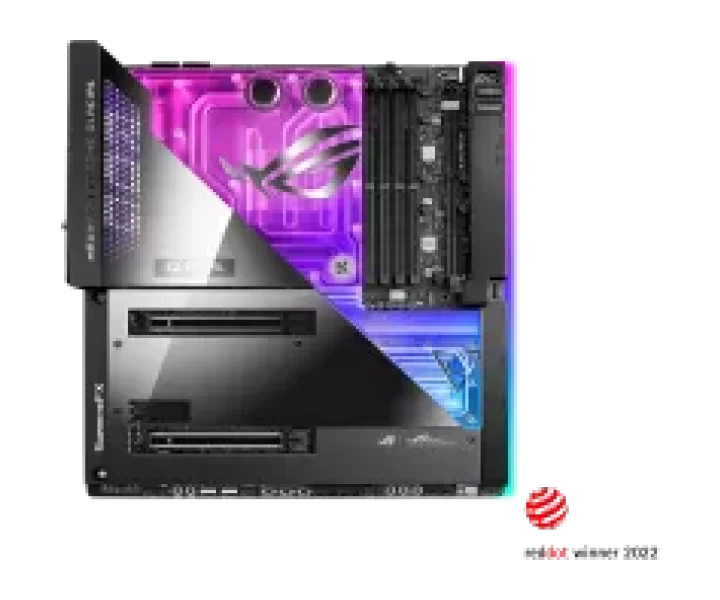

ROG MAXIMUS Z690 EXTREME GLACIAL özellikleri ve fiyatları

ROG MAXIMUS Z690 EXTREME GLACIAL teknik özellikleri

Model kodu

ROG MAXIMUS Z690 EXTREME GLACIAL

İşlemci soketi

LGA1700

Anakart yonga seti

Z690

Anakart biçimi

E-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

Max Memory Size: 192GB; 4 x DIMM, Max. 192GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem III; *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel CoreTM Processors (14th & 13th & 12th Gen)*; 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**; Intel Z690 Chipset***; 1 x PCIe 3.0 x1 slot; * Please check PCIe bifurcation table in support site.; ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.; *** Support Intel Optane Memory H Series on PCH-attached PCIe slot.

PCIe şerit paylaşımı ve işlemci koşulları

Intel CoreTM Processors (14th & 13th & 12th Gen)*; 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**; Intel Z690 Chipset***; 1 x PCIe 3.0 x1 slot; * Please check PCIe bifurcation table in support site.; ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.; *** Support Intel Optane Memory H Series on PCH-attached PCIe slot.

M.2 uyumluluğu ve şerit paylaşımı

Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports; Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*; Intel CoreTM Processors (14th & 13th & 12th Gen)*; M.2_1 slot (Key M), type 2242/2260/2280/22110***; - Intel 13th & 12th Gen processors support PCIe 5.0 x4 mode.; M.2_2 slot (Key M), type 2280; - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode.; Intel Z690 Chipset**; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes); DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); 6 x SATA 6Gb/s ports****; * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.; ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.; ***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.; ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

RAID desteği

* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.; ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

Depolama için M.2 yuvası sayısı

5

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB: Total 10 ports; 1 x Thunderbolt 4 port (1 x USB Type-C); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C); Front USB: Total 10 ports; 1 x Thunderbolt 4 connector (1 x USB Type-C); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Marvell 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet

Wi-Fi

Intel Wi-Fi 6E

Ses çıkışı

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback on front panel; Audio Features; - SupremeFX Shielding Technology; - ESS SABRE9018Q2C DAC/AMP; - LED-illuminated audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover; *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Ses yongası

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x Thunderbolt 4 USB Type-C port; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C); 1 x HDMI port; 1 x ASUS Wi-Fi Module; 1 x Intel 2.5Gb Ethernet port; 1 x Marvell AQtion 10Gb Ethernet port; 5 x LED-illuminated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 2 x 4-pin Chassis Fan headers; 2 x 4-pin Radiator Fan headers; 2 x W_PUMP+ headers; 1 x WB_SENSOR header; 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 1 x 6-pin PCIe Graphics Card connector; Storage related; 3 x M.2 slots (Key M); 1 x DIMM.2 slot supports 2 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x Intel Thunderbolt 4 port (USB Type-C); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers; 1 x Addressable Gen 2 header; 1 x AURA RGB header; 1 x WB_ADD header; 1 x BIOS Switch button; 2 x BCLK button; 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x LN2 Mode jumper; 1 x Osc sence header; 12 x ProbeIt Measurement Points; 1 x ReTry button; 1 x RSVD switch; 1 x RSVD header; 1 x Safe Boot button; 1 x Slow Mode switch; 1 x Start button; 1 x V_Latch switch; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 2 x 4-pin Chassis Fan headers; 2 x 4-pin Radiator Fan headers; 2 x W_PUMP+ headers

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ***Support 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme OC Kit; - FlexKey button; - LN2 Mode; - Probelt; - ReTry button; - Safe boot button; - Start button; - Slow Mode; Extreme Engine Digi+; - 10K Black Metallic Capacitors; - MicroFine Alloy Choke; ASUS Q-Design; - M.2 Q-Latch; - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - Steel backplate; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; AURA Sync; - ROG AURA sync backplate; - AURA RGB header(s); - Addressable Gen 2 header(s); Dual BIOS; OLED 2"; Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support; - Support: up to 60W charging*; - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A; - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS; * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W; ASUS HYDRANODE; - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P); * Visit ASUS Website for the latest compatibility list.

Boyutlar

E-ATX; 30.5cm x 27.7cm

Kutu içeriği

Cables; 1 x 1-to-3 ARGB splitter cable; 1 x 1-to-2 ARGB splitter cable; 2 x 1-to-4 fan splitter cables; 1 x RGB extension cable; 3 x ROG weave SATA 6G cables; 1 x 3-in-1 Thermistor cables pack; ROG Fan Controller; 1 x ROG Fan Controller; 1 x Fan EXT PWR cable; 1 x ARGB input cable; 1 x USB input cable; 1 x ROG Fan Controller 3M Mounting tape; 1 x Fan Controller manual; ROG DIMM.2 with Heatsink; 1 x ROG DIMM.2 with heatsink; 1 x M.2 pad for ROG DIMM.2; 2 x M.2 screw package for ROG DIMM.2; Additional Cooling Kit; 1 x Monoblock; 3 x Screw package for monoblock; 1 x Thermal pad for monoblock; 1 x Fittings for monoblock; 1 x M.2 heatsink; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x M.2 SSD screw package; 1 x Q-connector; 1 x ROG CLAVIS DAC; 1 x ROG graphics card holder; 1 x ROG key chain; 1 x ROG logo plate stickers; 1 x ROG screwdriver; 1 x ROG stickers; 1 x ROG thank you card; Installation Media; 1 x USB drive with utilities and drivers; Documentation; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: ROG MAXIMUS Z690 EXTREME GLACIAL, CPU: Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z690, Memory: Max Memory Size: 192GB 4 x DIMM, Max. 192GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem III *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list., Graphics: * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ***Support 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel CoreTM Processors (14th & 13th & 12th Gen)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel Z690 Chipset*** 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. *** Support Intel Optane Memory H Series on PCH-attached PCIe slot., Multi-GPU Support: NVIDIA 2-Way SLI Technology* *Support varies with different graphics cards, Storage: Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel CoreTM Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2242/2260/2280/22110*** - Intel 13th & 12th Gen processors support PCIe 5.0 x4 mode. M.2_2 slot (Key M), type 2280 - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports**** * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. ***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports., Ethernet: 1 x Marvell 10Gb Ethernet 1 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: Intel Wi-Fi 6E, USB: Rear USB: Total 10 ports 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) Front USB: Total 10 ports 1 x Thunderbolt 4 connector (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis., Back Panel I/O Ports: 1 x Thunderbolt 4 USB Type-C port 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Intel Thunderbolt 4 port (USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x WB_ADD header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header, Special Features: Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 header(s) Dual BIOS OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) * Visit ASUS Website for the latest compatibility list., Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - OLED Display - AniMe MatrixTM LED Display AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86, BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cables 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Monoblock 3 x Screw package for monoblock 1 x Thermal pad for monoblock 1 x Fittings for monoblock 1 x M.2 heatsink Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package 1 x Q-connector 1 x ROG CLAVIS DAC 1 x ROG graphics card holder 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide, Form Factor: E-ATX 30.5cm x 27.7cm

part Number

90MB1A60-M0AAY0
