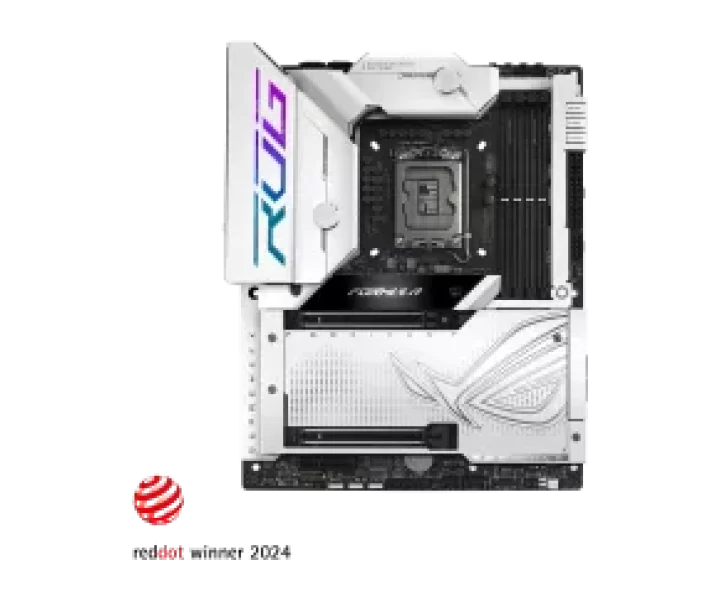

ROG MAXIMUS Z790 FORMULA özellikleri ve fiyatları

ROG MAXIMUS Z790 FORMULA teknik özellikleri

Model kodu

ROG MAXIMUS Z790 FORMULA

İşlemci soketi

LGA1700

Anakart yonga seti

Intel Z790 Chipset

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile II (AEMP II); Supports DIMM Flex; * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14th & 13th & 12th Gen)*; 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**; Intel Z790 Chipset; 1 x PCIe 4.0 x4 slot; * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.; *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14th & 13th & 12th Gen)*; 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**; Intel Z790 Chipset; 1 x PCIe 4.0 x4 slot; * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).; ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.; *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.; ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.

RAID desteği

* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 12 ports); 2 x Thunderbolt 4 ports (2 x USB Type-C); 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C); 4 x USB 5Gbps ports (4 x Type-A); Front USB (Total 9 ports); 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)**; 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A; ** USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

Kablolu ağ bağlantısı

1 x Realtek 5Gb Ethernet; ASUS LANGuard

Wi-Fi

Intel Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be)**; Supports 2.4/5/6GHz frequency band***; Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.; Bluetooth v5.4****; * Compatible with Windows 11 or later.; ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.; *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

Ses çıkışı

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback on front panel"; Audio Features; - SupremeFX Shielding Technology; - ESS ES9218 QUAD DAC; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium audio capacitors; * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Ses yongası

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

2 x Thunderbolt 4 USB Type-C ports; 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C); 4 x USB 5Gbps ports (4 x Type-A); 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 5Gb Ethernet port; 5 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header; Power Related; 1 x 24-pin main power connector; 2 x 8-pin +12V power connectors; 1 x 8-pin PCIe power connector; Storage Related; 5 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C ); 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Alteration PCIe mode switch; 1 x Aura RGB header; 1 x CPU over voltage jumper; 1 x FlexKey button; 1 x Front panel audio header (F_AUDIO); 1 x ReTry button; 1 x Start button; 1 x 10-1 pin system panel header; 1 x Thermal sensor header

Fan ve pompa bağlantıları

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header

Güç bağlantıları

1 x 24-pin main power connector; 2 x 8-pin +12V power connectors; 1 x 8-pin PCIe power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port**; 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports 4K@60Hz as specified in HDMI 2.1.; *** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme OC Kit; - FlexKey button; - ReTry button; - Start button; Extreme Engine Digi+; - 10K Black metallic capacitors; - MicroFine alloy choke; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Antenna; - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - HybridChill VRM block*; - M.2 heatsink backplate; - M.2 heatsink; - Metal backplate; - VRM heatsink design; *The HybridChill VRM block is designed for both air-cooling and open-loop liquid cooling systems. For open-loop liquid cooling, it requires a water block, pump, radiator, reservoir, tubing, fans, fittings, and coolant to operate correctly.; Improper use of any of these components can result in leakage and potential damage.; ASUS EZ DIY; - BIOS FlashBack button; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers; OLED 2"; Front Panel USB 20Gbps with Quick Charge 4+ Support; - Support: up to 60W fast charging and USB Wattage Watcher*; - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A; - Compatible with PD3.0 and PPS; * To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported.

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 1 x ARGB RGB extension cable; 2 x ROG weave SATA 6G cables; 2 x SATA 6Gb/s cables; Additional Cooling Kit; 1 x DDR5 fan holder; 1 x Thermal pad for M.2; Miscellaneous; 1 x ASUS WiFi Q-Antenna; 1 x Q-connector; 3 x M.2 backplate Q-Latch packages; 1 x ROG key chain; 1 x ROG stickers; 1 x ROG VIP card; 1 x M.2 rubber package; 3 x M.2 backplate rubber packages; Installation Media; 1 x USB drive with utilities and drivers; Documentation; 1 x Quick start guide

Üreticinin ayrıntılı teknik bilgileri

Model: ROG MAXIMUS Z790 FORMULA, CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel Z790 Chipset, Memory: 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function., Graphics: 1 x HDMI port** 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: Intel Core Processors (14th & 13th & 12th Gen)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel Z790 Chipset 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. *** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only., Ethernet: 1 x Realtek 5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Intel Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.", USB: Rear USB (Total 12 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)** 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A, Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - ESS ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device., Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connectors 1 x 8-pin PCIe power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Aura RGB header 1 x CPU over voltage jumper 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header, Special Features: Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - HybridChill VRM block* - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design *The HybridChill VRM block is designed for both air-cooling and open-loop liquid cooling systems. For open-loop liquid cooling, it requires a water block, pump, radiator, reservoir, tubing, fans, fittings, and coolant to operate correctly. Improper use of any of these components can result in leakage and potential damage. ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers OLED 2" Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported., Software Features: ROG Exclusive Software - ROG CPU-Z - DTS Sound Unbound - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Sonic Studio - Two-Way AI Noise Cancelation - OLED display AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyASUS USB Wattage Watcher Intel Unison Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey MemTest86, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x ARGB RGB extension cable 2 x ROG weave SATA 6G cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 fan holder 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 3 x M.2 backplate Q-Latch packages 1 x ROG key chain 1 x ROG stickers 1 x ROG VIP card 1 x M.2 rubber package 3 x M.2 backplate rubber packages Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB1FS0-M0AAY0
