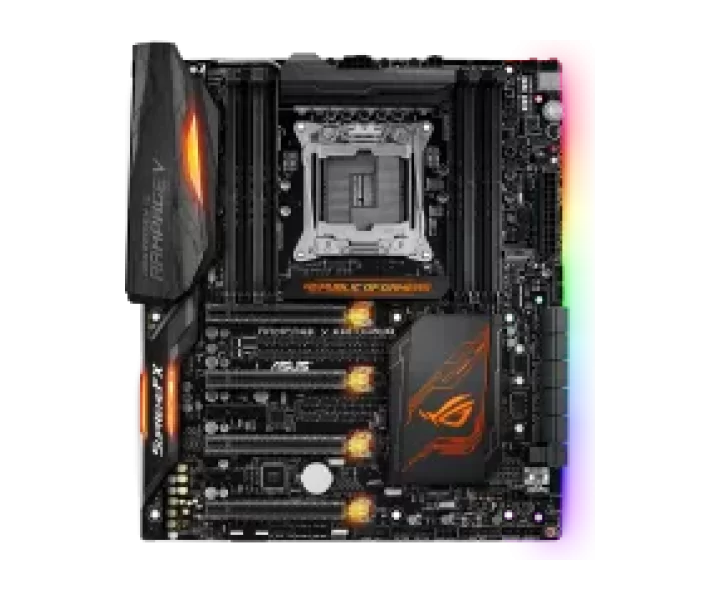

ROG RAMPAGE V EDITION 10 özellikleri ve fiyatları

ROG RAMPAGE V EDITION 10 teknik özellikleri

Model kodu

ROG RAMPAGE V EDITION 10

İşlemci soketi

Intel Socket 2011-v3

Anakart yonga seti

Intel X99

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket 2011-v3 Core i7 X-Series Processors; Supports Intel Turbo Boost Max Technology 3.0; Supports Intel 14nm CPU; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory; Quad Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

128 GB

PCIe yuvaları

4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16, x8/x8 or x8/x8/x8 mode with 28-LANE CPU) *2; 1 x PCIe 2.0 x4 *3; 1 x PCIe 2.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16, x8/x8 or x8/x8/x8 mode with 28-LANE CPU) *2; 1 x PCIe 2.0 x4 *3; 1 x PCIe 2.0 x1

M.2 uyumluluğu ve şerit paylaşımı

New Intel Core i7 X-Series Processors :; 1 x M.2 Socket 3, with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)*4; 1 x U.2 port, support PCIe 3.0 x4 NVM Express storage*4; Intel X99 chipset :; 10 x SATA 6Gb/s port(s),; Supports Intel Smart Response Technology*5; Support Raid 0, 1, 5, 10

RAID desteği

Support Raid 0, 1, 5, 10

Ses çıkışı

- Sonic Studio II; - Sonic Radar II; - Audio amplifier: Provides the highest-quality sound for headphone and speakers; - DTS Connect; ROG SupremeFX8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; Audio Feature :; - SupremeFX Shielding Technology; - Optical S/PDIF out port(s) at back panel; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Diğer anakart özellikleri

- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer; - HyStream; Remote Entertainment; - Media Streamer; ASUS Wi-Fi GO!; - USB 3.1 Boost; - Push Notice; - Ai Charger+; - Anti-Surge; - ASUS USB BIOS Flashback; - MemOK!; Overclocking Protection :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App; - ASUS CrashFree BIOS; Turbo APP; 5-Way Optimization by Dual Intelligent Processors 5; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Lighting Effects Synchronization with compatible ASUS ROG devices; ASUS Exclusive Features :; - AI Suite 3; ASUS Quiet Thermal Solution :; - ASUS Fan Xpert 4; ASUS EZ DIY :; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - Multi-language BIOS; ASUS Q-Design :; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-DIMM; - ASUS Q-Connector; - ASUS C.P.R.(CPU Parameter Recall)

Boyutlar

12 inch x 10.7 inch ( 30.5 cm x 27.2 cm ); Extended ATX Form Factor

Kutu içeriği

SupremeFX Hi-Fi Kit:; - 1 x SupremeFX Hi-Fi; - 1 x SupremeFX Hi-Fi cable; 10 x SATA power cable; 2 x CPU installation tool; 1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x 12 in 1 ROG Cable Label(s); 1 x 5-pin to 5-pin cable; 1 x I/O frame; 2 x ROG coaster(s); ROG Fan Label; 1 x Fan Extension Card (3 x 4-pin fan out); 1 x Fan Extension card screw pack; 1 x 2-Way SLI bridge(s); 1 x 3-Way SLI bridge(s); 1 x 4-Way SLI bridge(s); 3 x Thermistor cable(s); 1 x USB drive with utilities and drivers; User´s manual; 1 x M.2 Screw Package; 1 x Q-connector(s) (1 in 1); 1 x Extension Cable for RGB strips (80 cm)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG RAMPAGE V EDITION 10, CPU: Intel Socket 2011-v3 Core i7 X-Series Processors Supports Intel Turbo Boost Max Technology 3.0 Supports Intel 14nm CPU * Refer to www.asus.com for CPU support list, Chipset: Intel X99, Memory: 8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology *1 Supports AMD 4-Way CrossFireX Technology *1 Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: 4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE CPU; x16, x8/x8 or x8/x8/x8 mode with 28-LANE CPU) *2 1 x PCIe 2.0 x4 *3 1 x PCIe 2.0 x1, Storage: New Intel Core i7 X-Series Processors : 1 x M.2 Socket 3, with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)*4 1 x U.2 port, support PCIe 3.0 x4 NVM Express storage*4 Intel X99 chipset : 10 x SATA 6Gb/s port(s), Supports Intel Smart Response Technology*5 Support Raid 0, 1, 5, 10, LAN: Intel I218V, 1 x Gigabit LAN Controller(s) Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology, Wireless Data Network: Up to 1300Mbps transfer speed Support ASUS Wi-Fi Go! Utility Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz, Bluetooth: Bluetooth V4.0, Audio: - Sonic Studio II - Sonic Radar II - Audio amplifier: Provides the highest-quality sound for headphone and speakers - DTS Connect ROG SupremeFX8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity, USB Ports: Intel X99 chipset : *3 4 x USB 3.0 port(s) (4 at mid-board) Intel X99 chipset : *6 2 x USB 3.1 port(s) (2 at back panel, black, USB Type-CTM) 2 x USB 3.1 port(s) (2 at back panel, red, Type-A) 4 x USB 3.0 port(s) (4 at back panel, blue) ASMedia USB 3.1 Gen 2 controller : *3 ASMedia USB 3.1 Gen 2 controller : ASMedia USB 3.1 Gen 1 controller : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board), ROG Exclusive Features: 1 x DRAM channel switch ROG RAMCache - One-click Overclocking - DirectKey KeyBot II - X.M.P. - ClrCMOS - Power On ROG RAMDisk - O.C. Profile - GPU.DIMM Post - PCIe x16 Lane Switch ProbeIt Extreme Engine Digi+ : - IR3555 PoweIRstage - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Safe Boot button - Slow Mode - LN2 Mode UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Extreme Tweaker, Special Features: - Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer - HyStream Remote Entertainment - Media Streamer ASUS Wi-Fi GO! - USB 3.1 Boost - Push Notice - Ai Charger+ - Anti-Surge - ASUS USB BIOS Flashback - MemOK! Overclocking Protection : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App - ASUS CrashFree BIOS Turbo APP 5-Way Optimization by Dual Intelligent Processors 5 AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector - ASUS C.P.R.(CPU Parameter Recall), Operating System Support: Windows 8.1 Windows 7 Windows 10, Back I/O Ports: 3 x Wi-Fi antenna port(s) 2 x USB 3.1 Gen 2 (black)USB Type-CTM, 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x PS/2 keyboard/mouse combo port(s) 2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s), Internal I/O Ports: 1 x Power Fan connector(s) 1 x DRAM channel switch 1 x SLI/CFX switch (2/3-WAY adjustments) 1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only) 10 x SATA 6Gb/s connector(s) 1 x ROG extension (ROG_EXT) header(s) 9 x ProbeIt Measurement Points 1 x MemOK! button(s) 1 x Thunderbolt header(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x BIOS Switch button(s) 1 x PCIe x16 lane switch 1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Water Pump header (4-pin) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x U.2 connector 1 x System panel connector, Accessories: SupremeFX Hi-Fi Kit: - 1 x SupremeFX Hi-Fi - 1 x SupremeFX Hi-Fi cable 10 x SATA power cable 2 x CPU installation tool 1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x 12 in 1 ROG Cable Label(s) 1 x 5-pin to 5-pin cable 1 x I/O frame 2 x ROG coaster(s) ROG Fan Label 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card screw pack 1 x 2-Way SLI bridge(s) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers User´s manual 1 x M.2 Screw Package 1 x Q-connector(s) (1 in 1) 1 x Extension Cable for RGB strips (80 cm), BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information., Manageability: WfM 2.0, WOL by PME, PXE, Form Factor: 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm ) Extended ATX Form Factor, Note: *1 28-LANE CPUs can only support up to 3-Way SLI/ 3-Way CrossFireX *2 The PCIEx8_4 slot shares bandwidth with M.2 and U.2. *3 The PCIEx4_1 slot shares bandwidth with front USB3_34 ports and back USB3.1_EC1_EA2 ports. If a X2 device is connected to the PCIEx4_1 slot, the front USB3_34 ports will be disabled. If a X4 or higher device is connected to the PCIEx4_1 slot, both front USB3_34 and back USB3.1_EC1_EA2 ports will be disabled. *4 These ports share bandwidth with PCIEx8_4 slot. *5 These functions will work depending on the CPU installed. *6 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.

part Number

90MB0Q00-M0AAY0
