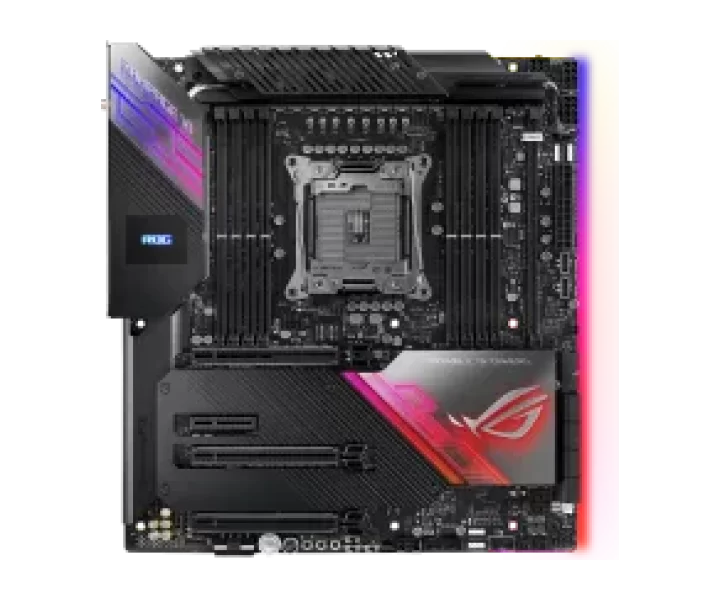

ROG Rampage VI Extreme Encore özellikleri ve fiyatları

ROG Rampage VI Extreme Encore teknik özellikleri

Model kodu

ROG Rampage VI Extreme Encore

İşlemci soketi

Intel Socket 2066

Anakart yonga seti

Intel X299

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Optimized for Intel Core X-Series 10000 Processor Family; Intel Socket 2066 Core X-Series Processors; Supports Intel Virtual RAID on CPU (VROC); Supports Intel Turbo Boost Max Technology 3.0; * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.; Supports Intel 14nm CPU; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory; 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Quad Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

PCIe yuvaları

(Intel Core i9 10000 X-Series CPU); 3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1; (Intel Core i9 9000/7000 and i7 9000 X-Series CPU); 3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2; (Intel Core i7 7000 X-Series CPU); 3 x PCIe 3.0 x16 (x16/x8/x4 mode); 1 x PCIe 3.0 x4 *3; 48-Lane CPU-; 44-Lane CPU-; 28-Lane CPU-; Intel X299 Chipset

PCIe şerit paylaşımı ve işlemci koşulları

(Intel Core i9 10000 X-Series CPU); 3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1; (Intel Core i9 9000/7000 and i7 9000 X-Series CPU); 3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2; (Intel Core i7 7000 X-Series CPU); 3 x PCIe 3.0 x16 (x16/x8/x4 mode); 1 x PCIe 3.0 x4 *3; 48-Lane CPU-; 44-Lane CPU-; 28-Lane CPU-; Intel X299 Chipset

M.2 uyumluluğu ve şerit paylaşımı

1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode); 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5; Intel Core X-Series Processors Family :; Intel Rapid Storage Technology Enterprise supports; Intel X299 Chipset :; 8 x SATA 6Gb/s port(s); Support Raid 0, 1, 5, 10; Intel Rapid Storage Technology supports; Intel Optane Memory Ready

RAID desteği

Support Raid 0, 1, 5, 10

Ses çıkışı

- ESSSABRE9018Q2C DAC/AMP; - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - Supports up to 32-Bit/192kHz playback *6; Audio Feature :; - DTS Sound Unbound; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III; - Sonic Studio III + Sonic Studio Virtual Mixer

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Diğer anakart özellikleri

- USB BIOS FlashBack; ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App; AI Overclocking; LiveDash OLED 1.77”; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Lighting Effects Synchronization with compatible ASUS ROG devices; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - ASUS CrashFree BIOS 3; - Armoury Crate; - Pre-mounted I/O Shield; - ASUS NODE: hardware control interface; - ASUS C.P.R.(CPU Parameter Recall); ASUS Q-Design :; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector; Armoury Crate

Boyutlar

Extended ATX Form Factor; 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Kutu içeriği

1 x USB 3.2 Gen 1 Header to USB 2.0 adapter cable; 1 x 2-in-1 Rubber pad; 1 x ROG Multi-Bit screwdriver; 6 x SATA 6Gb/s cable(s); 3 x M.2 Screw Package; 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header); 1 x Fan Extension Card II power cable; 1 x Fan Extension Card II NODE connector cable; 1 x Fan Extension Card II screw package; 1 x ROG Logo Sticker(s); 3 x Thermistor cable(s); 1 x USB drive with utilities and drivers; 1 x ROG weave SATA 6G cable; 1 x ROG DIMM.2 with heatsink; 1 x M.2 Pad for ROG DIMM.2; User´s manual; 1 x ROG logo plate sticker; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG coaster(s)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Rampage VI Extreme Encore, CPU: Optimized for Intel Core X-Series 10000 Processor Family Intel Socket 2066 Core X-Series Processors Supports Intel Virtual RAID on CPU (VROC) Supports Intel Turbo Boost Max Technology 3.0 * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types. Supports Intel 14nm CPU * Refer to www.asus.com for CPU support list, Chipset: Intel X299, Memory: 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: (Intel Core i9 10000 X-Series CPU) 3 x PCIe 3.0 x16 (x16/x16/x4, x16/x16/x8 or x16/x8/x8 modes) *1 (Intel Core i9 9000/7000 and i7 9000 X-Series CPU) 3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2 (Intel Core i7 7000 X-Series CPU) 3 x PCIe 3.0 x16 (x16/x8/x4 mode) 1 x PCIe 3.0 x4 *3 48-Lane CPU- 44-Lane CPU- 28-Lane CPU- Intel X299 Chipset, Storage: 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5 Intel Core X-Series Processors Family : Intel Rapid Storage Technology Enterprise supports Intel X299 Chipset : 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready, LAN: Aquantia AQC-107 10G Intel I219V Anti-surge LANGuard ROG GameFirst Technology, Wireless Data Network: Intel Wi-Fi 6 AX200 Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed, Bluetooth: Bluetooth 5.0, Audio: - ESSSABRE9018Q2C DAC/AMP - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *6 Audio Feature : - DTS Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer, USB Ports: Rear USB Port ( Total 11 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 8 x USB 3.2 Gen 1 port(s)(8 x Type-A) Front USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s) 2 x USB 2.0 port(s) 4 x USB 3.2 Gen 1 port(s), ROG Exclusive Features: - FlexKey Button - EZ Plug Clear CMOS button ProbeIt ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - OptiMem III - Safe Boot button - Slow Mode - LN2 Mode ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Overwolf, Special Features: - USB BIOS FlashBack ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AI Overclocking LiveDash OLED 1.77” AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - ASUS C.P.R.(CPU Parameter Recall) ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Armoury Crate, Back I/O Ports: 1 x USB BIOS FlashBack Button(s) 8 x USB 3.2 Gen 1 (up to 5Gbps) ports 2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) 1 x USB 2.0 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module Anti-surge LAN (RJ45) port, Internal I/O Ports: 2 x USB 3.2 Gen 2 front panel connector 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x FlexKey button 1 x FS Mode switch 1 x HS_FAN 1 x W_PUMP+ 1 1 x W_PUMP+ 2 1 x WB_SENSOR 2 x Aura Addressable Strip Header(s) 1 x VROC_HW_Key 2 x 8-pin EATX 12V Power connectors 1 x 6-pin EZ_PLUG Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 10 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 2 x T_Sensor Connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x PAUSE Switch 1 x RSVD Switch 2 x Aura RGB Strip Headers 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector, Accessories: 1 x USB 3.2 Gen 1 Header to USB 2.0 adapter cable 1 x 2-in-1 Rubber pad 1 x ROG Multi-Bit screwdriver 6 x SATA 6Gb/s cable(s) 3 x M.2 Screw Package 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x ROG Logo Sticker(s) 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 1 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 1 x M.2 Pad for ROG DIMM.2 User´s manual 1 x ROG logo plate sticker 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s), BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, Manageability: WfM 2.0, WOL by PME, PXE, Support Disc: Overwolf Daemon Tools Software WinRAR Anti-virus software (1-year full subscription), Operating System: Windows 10 64-bit, Form Factor: Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ), Note: *1 When the PCIe runs x16/x16/x8 mode, DIMM.2_2 will be disabled. *2 When PCIe runs x16/x16/x4 mode, DIMM.2_2 will be disabled. *3 The PCIe 3.0 x4 slot shares bandwidth with M.2_2. *4-1 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x8 mode on 48-Lane CPU. *4-2 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x4 mode on 44-Lane CPU. *4-3 DIMM.2 will be disabled when using 28-Lane CPU. *5 The PCIe 3.0 x4 slot shares bandwidth with M.2_2. *6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *7 USB 3.2 Gen 2x2 will be disabled when using 28-Lane CPU.

part Number

90MB11K0-M0AAY0
