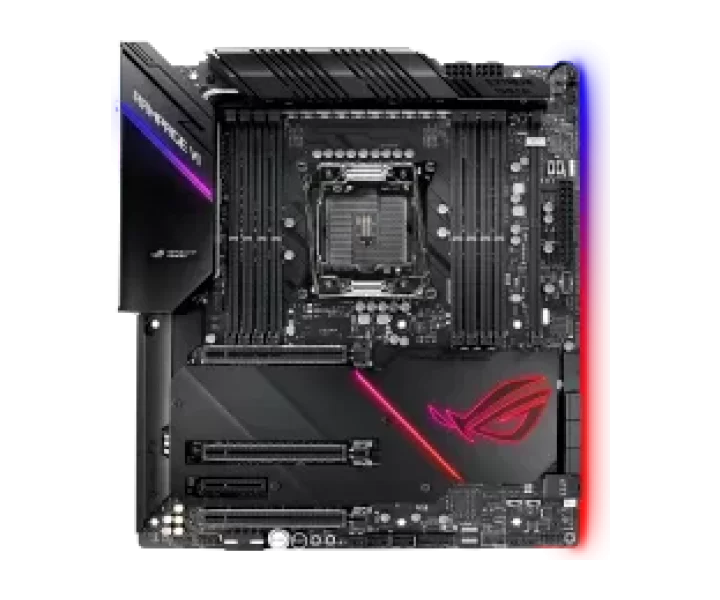

ROG RAMPAGE VI EXTREME OMEGA özellikleri ve fiyatları

ROG RAMPAGE VI EXTREME OMEGA teknik özellikleri

Model kodu

ROG RAMPAGE VI EXTREME OMEGA

İşlemci soketi

Intel Socket 2066

Anakart yonga seti

Intel X299

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket 2066 Core X-Series Processors; Supports Intel Virtual RAID on CPU (VROC); Supports Intel Turbo Boost Max Technology 3.0; * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.; Supports Intel 14nm CPU; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Quad Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

PCIe yuvaları

44-Lane CPU-; 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x8); 28-Lane CPU-; 3 x PCIe 3.0 x16 (x16, x16/x8, x8/x8/x8); Intel X299 Chipset; 1 x PCIe 3.0 x4

PCIe şerit paylaşımı ve işlemci koşulları

44-Lane CPU-; 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x8); 28-Lane CPU-; 3 x PCIe 3.0 x16 (x16, x16/x8, x8/x8/x8); Intel X299 Chipset; 1 x PCIe 3.0 x4

M.2 uyumluluğu ve şerit paylaşımı

1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1; Intel Core X-Series Processors Family :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2; 1 x U.2 port; Intel Rapid Storage Technology Enterprise supports; Intel X299 Chipset :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode); 6 x SATA 6Gb/s port(s); Support Raid 0, 1, 5, 10; Intel Rapid Storage Technology supports; Intel Optane Memory Ready

RAID desteği

Support Raid 0, 1, 5, 10

Ses çıkışı

- ESSSABRE9018Q2C DAC/AMP; - Supports up to 32-Bit/192kHz playback *3; - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; Audio Feature :; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0

Diğer anakart özellikleri

- USB BIOS FlashBack; - BIOS FlashBack Button; OC Design - ASUS PRO Clock II Technology; - MemOK! II; - OptiMem II; - Pre- mounted I/O shield; - BUPDATER; - ASUS CrashFree BIOS; - ASUS EZ Flash; ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App; LiveDash OLED; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Lighting Effects Synchronization with compatible ASUS ROG devices; - Aura Addressable Strip Header(s); ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - Armoury Crate; - Pre-mounted I/O Shield; - ASUS NODE: hardware control interface; - ASUS C.P.R.(CPU Parameter Recall); - Clear CMOS Button; ASUS EZ DIY :; ASUS Q-Design :; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

Extended ATX Form Factor; 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Kutu içeriği

3 x M.2 Screw Package; 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header); 1 x Fan Extension Card II power cable; 1 x Fan Extension Card II NODE connector cable; 1 x Fan Extension Card II screw package; 1 x SLI HB BRIDGE(2-WAY-M); 1 x ROG Logo Sticker(s); 3 x Thermistor cable(s); 1 x USB drive with utilities and drivers; 1 x ROG weave SATA 6G cable; 1 x ROG DIMM.2 with heatsink; 1 x M.2 Pad for ROG DIMM.2; 1 x Dual function screwdriver; User´s manual; 1 x ROG logo plate sticker; 4 x SATA 6Gb/s cable(s); 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG coaster(s); 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG RAMPAGE VI EXTREME OMEGA, CPU: Intel Socket 2066 Core X-Series Processors Supports Intel Virtual RAID on CPU (VROC) Supports Intel Turbo Boost Max Technology 3.0 * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types. Supports Intel 14nm CPU * Refer to www.asus.com for CPU support list, Chipset: Intel X299, Memory: 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology Supports NVIDIA 2-Way SLI Technology, Expansion Slots: 44-Lane CPU- 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x8) 28-Lane CPU- 3 x PCIe 3.0 x16 (x16, x16/x8, x8/x8/x8) Intel X299 Chipset 1 x PCIe 3.0 x4, Storage: 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1 Intel Core X-Series Processors Family : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 1 x U.2 port Intel Rapid Storage Technology Enterprise supports Intel X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready, LAN: Aquantia AQC-107 10G Intel I219V Anti-surge LANGuard ROG GameFirst Technology, Wireless Data Network: Supports 2x2 MU-MIMO Intel Wireless-AC 9260 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed, Bluetooth: Bluetooth 5.0, Audio: - ESSSABRE9018Q2C DAC/AMP - Supports up to 32-Bit/192kHz playback *3 - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link, USB Ports: ASMedia USB 3.2 Gen 1 controller : ASMedia USB 3.2 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C) 8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 4 at mid-board) 6 x USB 3.1 Gen 1 port(s) (6 at back panel, blue) Intel X299 Chipset : 4 x USB 2.0 port(s) (4 at mid-board), ROG Exclusive Features: Clear CMOS button - MemOK! II Button ProbeIt ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover Extreme Engine Digi+ : - IR3555 PoweIRstage - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Safe Boot button - Slow Mode - LN2 Mode ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Overwolf, Special Features: - USB BIOS FlashBack - BIOS FlashBack Button OC Design - ASUS PRO Clock II Technology - MemOK! II - OptiMem II - Pre- mounted I/O shield - BUPDATER - ASUS CrashFree BIOS - ASUS EZ Flash ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App LiveDash OLED AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - ASUS C.P.R.(CPU Parameter Recall) - Clear CMOS Button ASUS EZ DIY : ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 10 x USB 3.2 Gen 1 (blue) 2 x USB 3.2 Gen 2 Type-A + USB Type-CTM, 1 x USB BIOS FlashBack Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module Anti-surge LAN (RJ45) port, Internal I/O Ports: 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 1 x W_PUMP+ 1 1 x W_PUMP+ 2 1 x WB_SENSOR 1 x Aura Addressable Strip Header(s) 1 x VROC_HW_Key 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x MemOK! II switch(es) 10 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 2 x T_Sensor Connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x PAUSE Switch 2 x RSVD Switch 2 x Aura RGB Strip Headers 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector, Accessories: 3 x M.2 Screw Package 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG Logo Sticker(s) 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 1 x ROG weave SATA 6G cable 1 x ROG DIMM.2 with heatsink 1 x M.2 Pad for ROG DIMM.2 1 x Dual function screwdriver User´s manual 1 x ROG logo plate sticker 4 x SATA 6Gb/s cable(s) 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x ROG Thank you card, BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Manageability: WfM 2.0, WOL by PME, PXE, Support Disc: Overwolf Daemon Tools Software WinRAR Anti-virus software (1-year full subscription), Operating System: Windows 10 64-bit, Form Factor: Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ), Note: *1 DIMM.2_2 will be disabled *2 The U.2 port shares bandwidth with onboard M.2_2 slot.when using 28-Lan CPU. *2 U.2 port and M.2_2 slot will be disabled when using 28-Lane CPU. *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

part Number

90MB0ZJ0-M0AAY0

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
