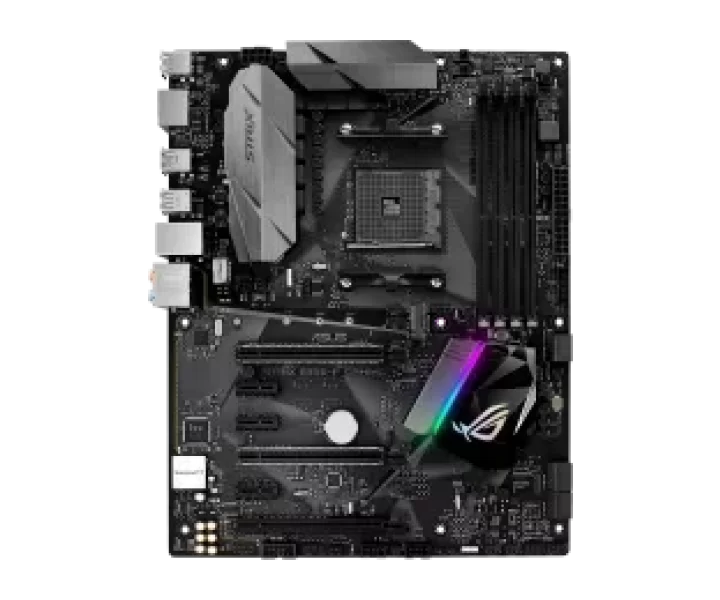

ROG STRIX B350-F GAMING özellikleri ve fiyatları

ROG STRIX B350-F GAMING teknik özellikleri

Model kodu

ROG STRIX B350-F GAMING

İşlemci soketi

AM4

Anakart yonga seti

AMD B350

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors; Supports AM4 Socket 14nm CPU; Supports CPU up to 8 cores; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *; 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *; AMD 7th Generation A-series/Athlon Processors; Dual Channel Memory Architecture; * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD B350 chipset; 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4); 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

PCIe şerit paylaşımı ve işlemci koşulları

AMD B350 chipset; 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4); 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*5; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*6; AMD B350 chipset :; AMD 7th Generation A-series/Athlon Processors :; 2 x SATA 6Gb/s port(s),; AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- Sonic Studio III; ROG SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual Headphone Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - Supports up to 32-Bit/192kHz playback; Audio Feature :; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Diğer anakart özellikleri

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports; 5-Way Optimization by Dual Intelligent Processors 5; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; TPU; - Auto Tuning, TurboV, GPU Boost; Gamer´s Guardian:; - DRAM Overcurrent Protection; - Stainless Steel Back I/O; - Highly Durable components; - Digi+ VRM; - SafeSlot; ASUS EPU :; - EPU; AURA :; - Aura Lighting Control; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; Gaming Aesthetics :; - AURA-RGB Lighting; Digi+VRM

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x 10-in-1 ROG cable label; User´s manual; I/O Shield; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension Cable for RGB strips (80 cm); 1 x ROG coaster(s)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B350-F GAMING, CPU: AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors Supports AM4 Socket 14nm CPU Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list, Chipset: AMD B350, Memory: 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * AMD 7th Generation A-series/Athlon Processors Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively), Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology, Expansion Slots: AMD B350 chipset 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1 AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode), Storage: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*5 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*6 AMD B350 chipset : AMD 7th Generation A-series/Athlon Processors : 2 x SATA 6Gb/s port(s), AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology, Audio: - Sonic Studio III ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III, USB Ports: AMD B350 chipset : AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board), ROG Exclusive Features: ROG RAMCache II ROG CloneDrive GameFirst IV ROG CPU-Z Overwolf, Special Features: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer´s Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable components - Digi+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting Digi+VRM, Back I/O Ports: 4 x USB 3.1 Gen 1 , 2 x USB 3.1 Gen 2 Type-A, 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s), Internal I/O Ports: 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x Aura RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector, Accessories: 1 x 10-in-1 ROG cable label User´s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ROG coaster(s), BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0 ACPI 6.1, Multi-language BIOS,ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE, Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version), Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: *1 PCIEX16_3 Socket shares bandwidth witch PCIEX1_1 and PCIEX1_3 *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *3 Due to AMD Ryzen Processor limitation, More than DDR4-2666 is supported by one DIMM per channel only *4 ROG GameFirst IV is only available for Windows 10 64-bit. *5 When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports and SATA6G_5/6 will be disabled. *6 When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 portsand SATA6G_5/6 will be disabled.

part Number

90MB0UJ0-M0AAY0
