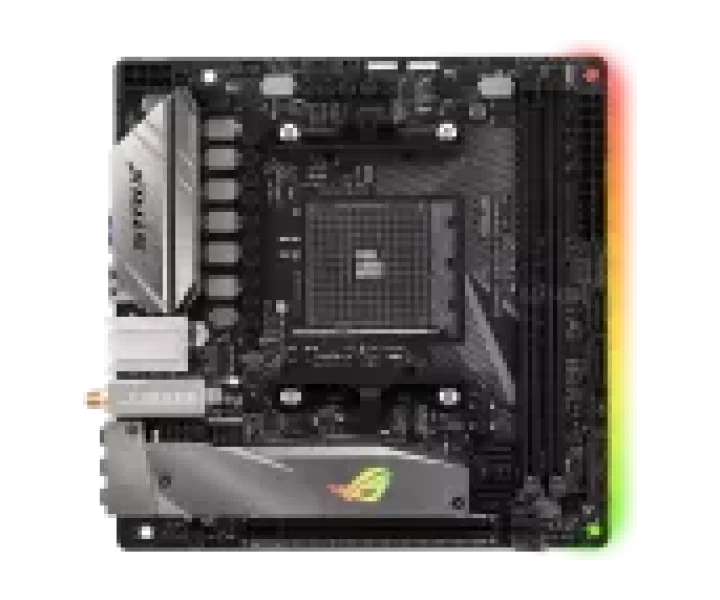

ROG STRIX B350-I GAMING özellikleri ve fiyatları

ROG STRIX B350-I GAMING teknik özellikleri

Model kodu

ROG STRIX B350-I GAMING

İşlemci soketi

AM4

Anakart yonga seti

AMD B350

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors; Supports AM4 Socket 14nm CPU; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 32GB, DDR4 3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Non-ECC, Un-buffered Memory *; 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *; AMD Ryzen Processors; AMD 7th Generation A-series/Athlon Processors; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

32 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe 3.0 x16 (x16 mode); 1 x PCIe 3.0/2.0 x16 (x8 mode)

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 3.0 x16 (x16 mode); 1 x PCIe 3.0/2.0 x16 (x8 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD Ryzen Processors :; AMD B350 chipset :; 4 x SATA 6Gb/s port(s)*1,; 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4); AMD 7th Generation A-series/Athlon Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

Ses çıkışı

LED-illuminated audio jacks; SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - Supports up to 32-Bit/192kHz playback *2; Audio Feature :; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

Ses yongası

SupremeFX8-Channel High Definition Audio CODEC S1220A

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Diğer anakart özellikleri

- TurboV; ASUS TPU :; - Auto Tuning; Turbo APP; - featuring system performance tuning for selected applications; 5-Way Optimization by Dual Intelligent Processors 5; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; Fan Xpert4; - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control; Gamer´s Guardian:; - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports; - DRAM Overcurrent Protection; - Stainless Steel Back I/O; - Highly Durable components; - Digi+ VRM; - SafeSlot; ASUS EPU :; - EPU; AURA :; - Aura Lighting Control; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; Digi+VRM

Boyutlar

Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Kutu içeriği

M.2 mounting kit; 1 x Panel cable; 2 x M.2 Screw Package; User´s manual; I/O Shield; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension cable for Addressable LED

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B350-I GAMING, CPU: AMD AM4 Socket Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors Supports AM4 Socket 14nm CPU * Refer to www.asus.com for CPU support list, Chipset: AMD B350, Memory: 2 x DIMM, Max. 32GB, DDR4 3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Non-ECC, Un-buffered Memory * 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory * AMD Ryzen Processors AMD 7th Generation A-series/Athlon Processors Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Expansion Slots: 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (x8 mode), Storage: AMD Ryzen Processors : AMD B350 chipset : 4 x SATA 6Gb/s port(s)*1, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4) AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode), LAN: ROG GameFirst IV Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard, Wireless Data Network: Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO, Bluetooth: Bluetooth v4.2, 4.0LE, 3.0+HS, Audio: LED-illuminated audio jacks SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Sonic Radar III - Sonic Studio III + Sonic Studio Link, USB Ports: AMD Ryzen/7th Generation A-series/Athlon Processors : AMD B350 chipset : 2 x USB 2.0 port(s) (2 at mid-board) 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) 2 x USB 3.1 Gen 1 port(s) 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue), ROG Exclusive Features: ROG RAMCache II ROG CloneDrive GameFirst IV ROG CPU-Z Overwolf, Special Features: - TurboV ASUS TPU : - Auto Tuning Turbo APP - featuring system performance tuning for selected applications 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer´s Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable components - Digi+ VRM - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM, Operating System Support: Windows 10 64-bit, Back I/O Ports: 4 x USB 3.1 Gen 1 (blue) , 3 x LED-illuminated audio jacks 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2) 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A,, Internal I/O Ports: 1 x RGB Header(s) 1 x CPU Fan connector(s) ( x 4-pin) 1 x Chassis Fan connector(s) ( x 4-pin) 1 x AIO_PUMP connector ( x 4-pin) 1 x 8-pin EATX 12V Power connector 1 x Aura Addressable Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector 1 x Speaker connector, Accessories: M.2 mounting kit 1 x Panel cable 2 x M.2 Screw Package User´s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Manageability: WfM 2.0, WOL by PME, PXE, Support Disc: Drivers ASUS Utilities Anti-virus software, Form Factor: Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ), Note: *1 Supports RAID 0,1,10 *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *3 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

part Number

90MB0VD0-M0AAY0
