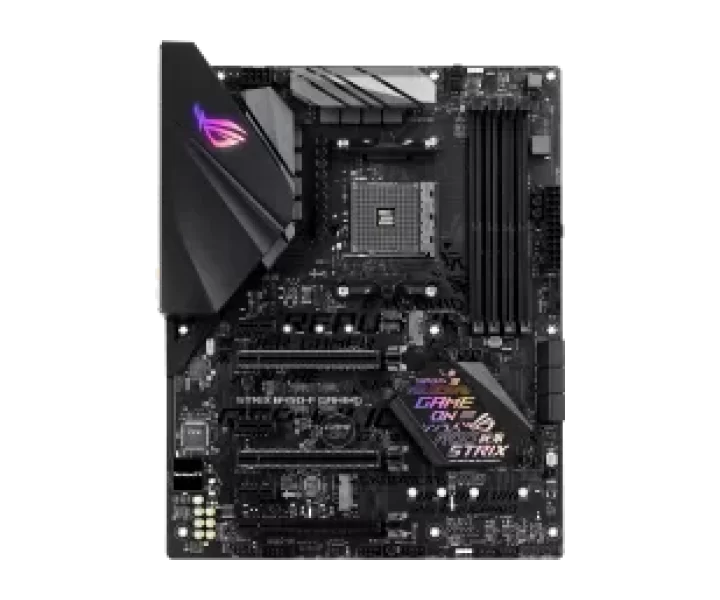

ROG STRIX B450-F GAMING özellikleri ve fiyatları

ROG STRIX B450-F GAMING teknik özellikleri

Model kodu

ROG STRIX B450-F GAMING

İşlemci soketi

AM4

Anakart yonga seti

AMD B450

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).; 3rd Gen AMD Ryzen Processors

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 3.0/2.0 x16 (x16 or x8/x4); AMD Ryzen with Radeon Vega Graphics Processor; AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 3.0/2.0 x16 (x16 or x8/x4); AMD Ryzen with Radeon Vega Graphics Processor; AMD B450 chipset; 1 x PCIe 2.0 x16 (max at x4 mode) *1; 3 x PCIe 2.0 x1; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; 1 x PCIe 3.0/2.0 x16 (x8 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : *2; 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3; 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4; AMD Ryzen with Radeon Vega Graphics Processor : *2; 2 x SATA 6Gb/s port(s); AMD B450 chipset :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- Supports up to 32-Bit/192kHz playback *5; ROG SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; Audio Feature :; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

Diğer anakart özellikleri

- ASUS Grid; Turbo APP; - featuring system performance tuning for selected applications; 5-Way Optimization by Dual Intelligent Processors 5; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; TPU; - Auto Tuning, TurboV, GPU Boost; Fan Xpert4; - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control; Gamer´s Guardian:; - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports; - DRAM Overcurrent Protection; - Highly Durable components; - SafeSlot; ASUS EPU :; - EPU; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Lighting Effects Synchronization with compatible ASUS ROG devices; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; Digi+VRM

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x Replaceable PCH nameplate; 2 x M.2 Screw Package; User´s manual; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x Strix door hanger; 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension Cable for RGB strips (80 cm)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B450-F GAMING, CPU: AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors * Refer to www.asus.com for CPU support list, Chipset: AMD B450, Memory: 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). 3rd Gen AMD Ryzen Processors, Graphic: Integrated in the AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz, Multi-GPU Support: AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors Supports AMD 3-Way CrossFireX Technology, Expansion Slots: 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) AMD Ryzen with Radeon Vega Graphics Processor AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1 AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x8 mode), Storage: AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : *2 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 AMD Ryzen with Radeon Vega Graphics Processor : *2 2 x SATA 6Gb/s port(s) AMD B450 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology, Audio: - Supports up to 32-Bit/192kHz playback *5 ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link, USB Ports: 3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue) AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C) 2 x USB 3.1 Gen 1 port(s) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board), ROG Exclusive Features: ROG RAMCache II GameFirst IV ROG CPU-Z Pre-mounted I/O Shield Overwolf, Special Features: - ASUS Grid Turbo APP - featuring system performance tuning for selected applications 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer´s Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Highly Durable components - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM, Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A, 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s), Internal I/O Ports: 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s), Accessories: 1 x Replaceable PCH nameplate 2 x M.2 Screw Package User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm), Operating System: Windows 7 64-bit *6 Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: *1 PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3. *2 Support StoreMI and NVMe RAID *3 When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. *4 When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode. *5 *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *6 *Windows 7 64-bit is only supported when using AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors

part Number

90MB0YS0-M0AAY0
