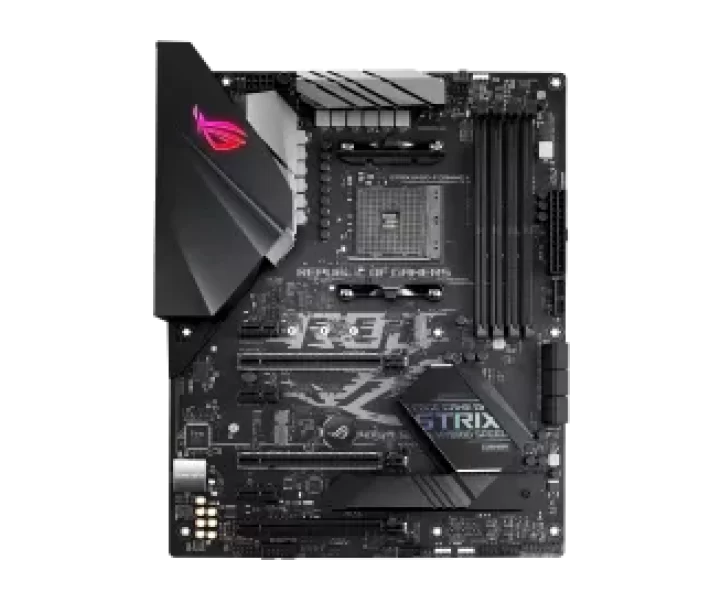

ROG STRIX B450-F GAMING II özellikleri ve fiyatları

ROG STRIX B450-F GAMING II teknik özellikleri

Model kodu

ROG STRIX B450-F GAMING II

İşlemci soketi

AM4

Anakart yonga seti

AMD B450

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory; 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 3.0 x16 (x16 or x8/x4); 1 x PCIe 2.0 x16 (x4 mode) *; 3rd/2nd/1st Gen AMD Ryzen Processors; 1 x PCIe 3.0 x16 (x4 mode); AMD B450 chipset; 3 x PCIe 2.0 x1; 1 x PCIe 3.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 3.0 x16 (x16 or x8/x4); 1 x PCIe 2.0 x16 (x4 mode) *; 3rd/2nd/1st Gen AMD Ryzen Processors; 1 x PCIe 3.0 x16 (x4 mode); AMD B450 chipset; 3 x PCIe 2.0 x1; 1 x PCIe 3.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors

M.2 uyumluluğu ve şerit paylaşımı

3rd/2nd/1st Gen AMD Ryzen Processors :; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*; 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*; 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :; 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode); Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports; 2 x SATA 3Gb/s port(s),; 2 x SATA 6Gb/s port(s); 2 x SATA 6Gb/s port(s),; AMD B450 chipset :; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD Athlon with Radeon Vega Graphics Processors :; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Depolama için M.2 yuvası sayısı

2

Ses çıkışı

- Audio Shielding; ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A; - Premium Japanese audio capacitors; - Audio Cover; - Optical S/PDIF out header(s) at mid-board; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - Supports up to 32-Bit/192kHz playback *; Audio Feature :; - SupremeFX Shielding Technology; * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Ses yongası

ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A

Ses kanalı yapılandırması

8 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x M.2 SSD screw package(s); 1 x M.2 Rubber Package(s); User´s manual; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B450-F GAMING II, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors * Refer to www.asus.com for CPU support list, Chipset: AMD B450, Memory: 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: 1 x HDMI 2.0b 1 x DisplayPort 1.2 *Graphics specifications may vary between CPU types. Integrated Graphics Processor, Multi-GPU Support: Supports AMD 3-Way CrossFireX Technology, Expansion Slots: 2 x PCIe 3.0 x16 (x16 or x8/x4) 1 x PCIe 2.0 x16 (x4 mode) * 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 3 x PCIe 2.0 x1 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors, Storage: 3rd/2nd/1st Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)* 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 2 x SATA 3Gb/s port(s), 2 x SATA 6Gb/s port(s) 2 x SATA 6Gb/s port(s), AMD B450 chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics Processors : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Intel I211-AT 1Gb Ethernet ASUS LANGuard, Audio: - Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Premium Japanese audio capacitors - Audio Cover - Optical S/PDIF out header(s) at mid-board - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding Technology * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio., USB Ports: 4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s), Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync Ai noise cancelling microphone AI Suite 3: - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, ASUS Special Features: Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack button -BIOS FlashBack LED -Clear CMOS header -Pre-mounted I/O shield - SafeSlot, Back I/O Ports: 1 x Intel I211-AT 1Gb Ethernet 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 1 USB Type-C 1 x BIOS FlashBack Button(s) 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s), Internal I/O Ports: 1 x AAFP connector 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 2 x Aura RGB Strip Header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s), Accessories: 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: * PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3 * When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. *When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode.

part Number

90MB15V0-M0MAY0
