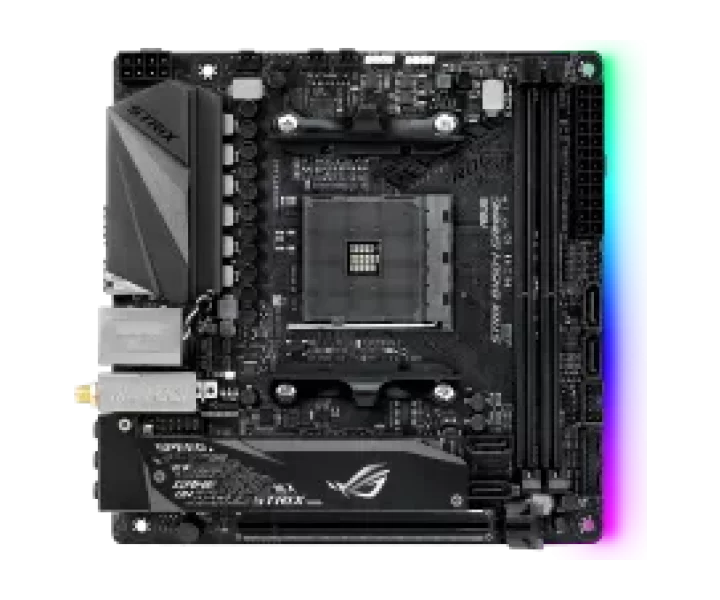

ROG STRIX B450-I GAMING özellikleri ve fiyatları

ROG STRIX B450-I GAMING teknik özellikleri

Model kodu

ROG STRIX B450-I GAMING

İşlemci soketi

AM4

Anakart yonga seti

AMD B450

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (max at x4 mode)

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors; AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors; 1 x PCIe 3.0/2.0 x16 (x16 mode); 1 x PCIe 3.0/2.0 x16 (x8 mode); AMD Athlon with Radeon Vega Graphics Processors; 1 x PCIe 3.0/2.0 x16 (max at x4 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1; AMD Ryzen with Radeon Vega Graphics Processor : *2; AMD B450 chipset :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); AMD Athlon with Radeon Vega Graphics Processors :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode); 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

LED-illuminated audio jacks; - Supports up to 32-Bit/192kHz playback *3; ROG SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; Audio Feature :; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,; ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,; F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search

Diğer anakart özellikleri

- TurboV; - ASUS Grid; ASUS TPU :; - Auto Tuning; Turbo APP; - featuring system performance tuning for selected applications; 5-Way Optimization by Dual Intelligent Processors 5; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; Fan Xpert4; - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control; Gamer´s Guardian:; - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports; - DRAM Overcurrent Protection; - Stainless Steel Back I/O; - Highly Durable components; - Digi+ VRM; - SafeSlot; - ESD Guards on LAN, Audio,and USB ports; ASUS EPU :; - EPU; AURA :; - Aura Lighting Control; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; Digi+VRM

Boyutlar

Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Kutu içeriği

2 x SATA 6Gb/s cable(s); M.2 mounting kit; 1 x Panel cable; 2 x M.2 Screw Package; User´s manual; I/O Shield; 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension cable for Addressable LED

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B450-I GAMING, CPU: AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors * Refer to www.asus.com for CPU support list, Chipset: AMD B450, Memory: 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: Multi-VGA output support : HDMI ports Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz, Expansion Slots: AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode), Storage: AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1 AMD Ryzen with Radeon Vega Graphics Processor : *2 AMD B450 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: ROG GameFirst IV Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard, Wireless Data Network: Supports 2x2 MU-MIMO Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz, Bluetooth: Bluetooth v4.2, 4.0LE, 3.0+HS, Audio: LED-illuminated audio jacks - Supports up to 32-Bit/192kHz playback *3 ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input Audio Feature : - Sonic Radar III - Sonic Studio III + Sonic Studio Link, USB Ports: 2 x USB 2.0 port(s) (2 at mid-board) AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) AMD B450 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) 2 x USB 3.1 Gen 1 port(s) (2 at mid-board), ROG Exclusive Features: ROG RAMCache II GameFirst IV ROG CPU-Z Overwolf, Special Features: - TurboV - ASUS Grid ASUS TPU : - Auto Tuning Turbo APP - featuring system performance tuning for selected applications 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer´s Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable components - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM, Back I/O Ports: 3 x LED-illuminated audio jacks 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A, 4 x USB 3.1 Gen 1 (blue), Internal I/O Ports: 1 x CPU Fan connector(s) ( x 4-pin) 1 x Chassis Fan connector(s) ( x 4-pin) 1 x AIO_PUMP connector ( x 4-pin) 1 x 8-pin EATX 12V Power connector 1 x Aura Addressable Strip Header(s) 1 x Aura RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector 1 x Speaker connector, Accessories: 2 x SATA 6Gb/s cable(s) M.2 mounting kit 1 x Panel cable 2 x M.2 Screw Package User´s manual I/O Shield 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search, Manageability: WOL, PXE, Support Disc: Drivers ASUS Utilities Anti-virus software, Form Factor: Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ), Note: *1 The M.2_2 slot shares with PCIE x16. When M.2_2 slot runs in PCIE mode, the PCIE x16 slot will run at x8 mode. *2 M.2_2 is unsupported when using these CPUs. *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

part Number

90MB0Z50-M0AAY0
