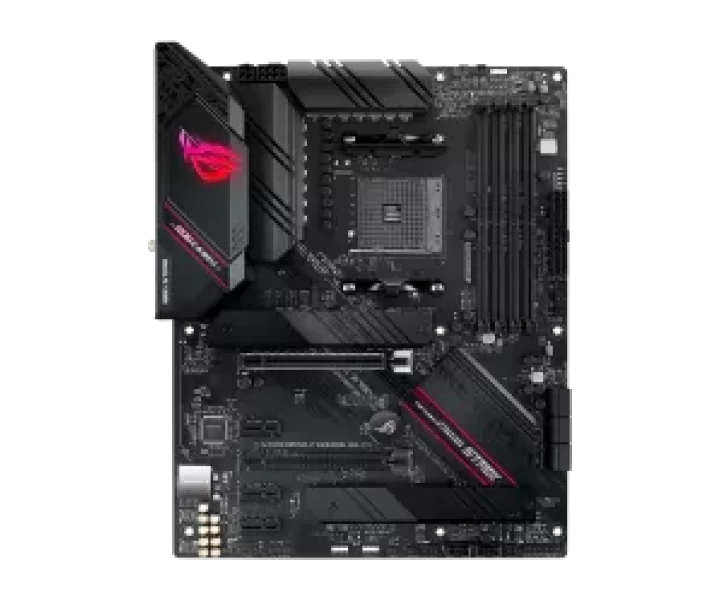

ROG STRIX B550-F GAMING (WI-FI) özellikleri ve fiyatları

ROG STRIX B550-F GAMING (WI-FI) teknik özellikleri

Model kodu

ROG STRIX B550-F GAMING (WI-FI)

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

AMD RyzenTM 4000 G-Series Processors; 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory; 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory; OptiMem II; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode) *; 3 x PCIe 3.0 x1; 1 x PCIe 3.0 x16 (x16 mode); 1 x PCIe 4.0 x16 (x16 mode)

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode) *; 3 x PCIe 3.0 x1; 1 x PCIe 3.0 x16 (x16 mode); 1 x PCIe 4.0 x16 (x16 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD RyzenTM 4000 G-Series Processors :; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode); AMD B550 Chipset :; 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 6 x SATA 6Gb/s port(s); Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Depolama için M.2 yuvası sayısı

2

Ses çıkışı

- Audio Shielding; - Premium Japanese audio capacitors; - Audio Cover; ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A; - Optical S/PDIF in port(s) at back panel; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - Supports up to 32-Bit/192kHz playback *; Audio Feature :; - SupremeFX Shielding Technology; * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Ses yongası

ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A

Ses kanalı yapılandırması

8 kanal

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x M.2 SSD screw package(s); 1 x M.2 Rubber Package(s); 1 x Wi-Fi moving antenna; User´s manual; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension cable for Addressable LED; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B550-F GAMING (WI-FI), CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD B550, Memory: AMD RyzenTM 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: 1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.2 *Graphics specifications may vary between CPU types. Integrated Graphics Processor, Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology, Expansion Slots: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x16 mode), Storage: AMD RyzenTM 4000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10, LAN: Intel I225-V 2.5Gb Ethernet ASUS LANGuard, Wireless Data Network: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Intel Wi-Fi 6 AX200, Bluetooth: Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later., Audio: - Audio Shielding - Premium Japanese audio capacitors - Audio Cover ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Optical S/PDIF in port(s) at back panel - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding Technology * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio., USB Ports: Front USB Port ( Total 6 ) Rear USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) 4 x USB 2.0 port(s), Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, ASUS Special Features: Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack button -BIOS FlashBack LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot, Back I/O Ports: 1 x BIOS FlashBack Button(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) 1 x Intel I225-V 2.5Gb Ethernet 4 x USB 3.2 Gen 1 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) 5 x Audio jack(s), Internal I/O Ports: 1 x AAFP connector 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Thunderbolt header(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s), Accessories: 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) 1 x Wi-Fi moving antenna User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

part Number

90MB14F0-M0MAY0
