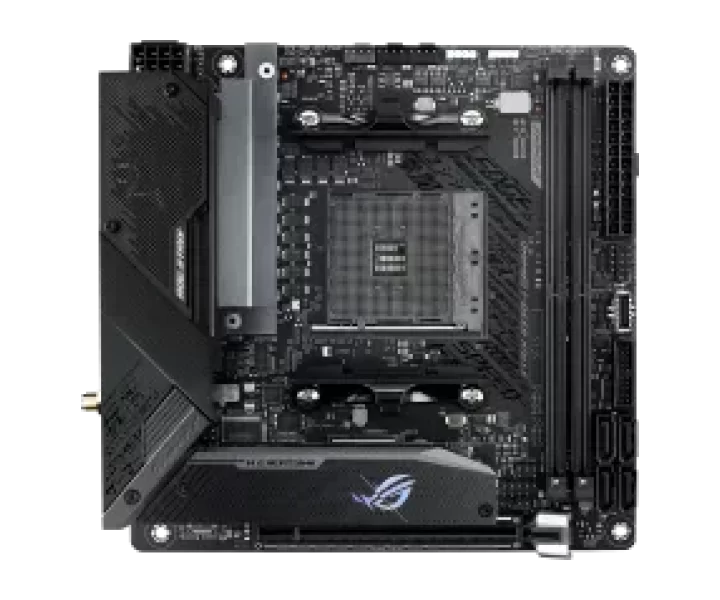

ROG STRIX B550-I GAMING özellikleri ve fiyatları

ROG STRIX B550-I GAMING teknik özellikleri

Model kodu

ROG STRIX B550-I GAMING

İşlemci soketi

AM4

Anakart yonga seti

AMD B550

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors; 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *; OptiMem II; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode); 1 x PCIe 3.0 x16 (x16 mode)

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 (x16 mode); 1 x PCIe 3.0 x16 (x16 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD RyzenTM 4000 G-Series Processors :; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports; AMD B550 Chipset :; 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

RAID desteği

Support Raid 0, 1, 10

Depolama için M.2 yuvası sayısı

2

Ses çıkışı

SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A; - Rear audio USB Type-C port; - LED-illuminated design; - Audio Shielding; - Premium Japanese audio capacitors; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - Supports up to 32-Bit/192kHz playback *; Audio Feature :

Ses yongası

SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Boyutlar

Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Kutu içeriği

1 x ROG audio USB Type-C cable; 1 x Panel cable; 2 x M.2 Screw Package; User´s manual; I/O Shield; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ROG Strix stickers; 1 x M.2 bracket; 1 x Cable ties pack(s); 1 x Wi-Fi Antenna(s); 1 x Extension cable for Addressable LED; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B550-I GAMING, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD B550, Memory: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU., Graphic: 1 x HDMI 2.1(4K@60HZ) * 1 x DisplayPort 1.4 * *Graphics specifications may vary between CPU types., Expansion Slots: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode), Storage: AMD RyzenTM 4000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, LAN: Intel I225-V 2.5Gb Ethernet ASUS LANGuard, Wireless Data Network: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160, Bluetooth: Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later., Audio: SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A - Rear audio USB Type-C port - LED-illuminated design - Audio Shielding - Premium Japanese audio capacitors - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature :, USB Ports: 4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C +3 x Type-A) 1 x USB 2.0 port(s)(1 x audio USB Type-C ) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C) Rear USB Port ( Total 6 ) 1 x USB 2.0 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s), Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync -AI Noise Cancelling Microphone AI Suite 3: - 5-way Optimization TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey, ASUS Special Features: Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS Flashback button -BIOS FlashBack LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C connector, Back I/O Ports: 4 x USB 3.2 Gen 2 (1 x USB Type-C+3 x Type-A) 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack1 for audio USB Type-C) 1 x BIOS FlashBack Button(s) 1 x Intel I225-V 2.5Gb Ethernet 3 x LED-illuminated audio jacks 1 x DisplayPort 1 x HDMI 1 x ASUS Wi-Fi Module, Internal I/O Ports: 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector, Accessories: 1 x ROG audio USB Type-C cable 1 x Panel cable 2 x M.2 Screw Package User´s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Operating System: Windows 10 64-bit, Form Factor: Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ), Note: * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.

part Number

90MB14L0-M0MAY0
