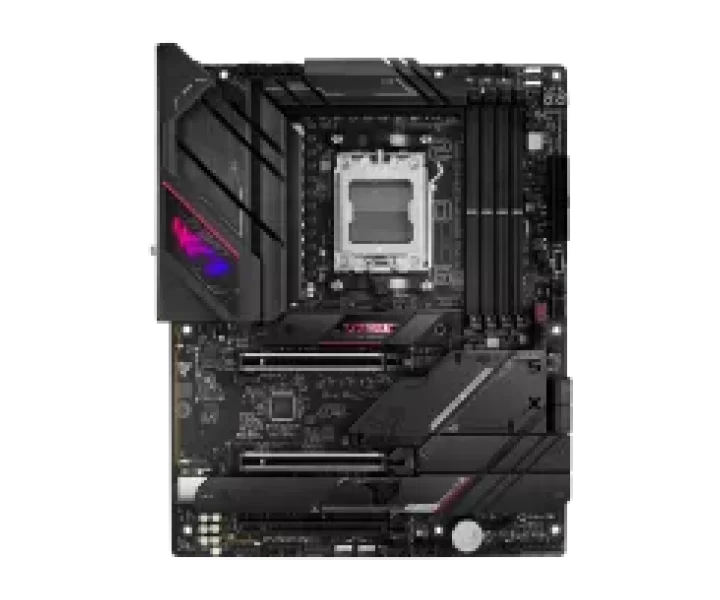

ROG STRIX B650E-E GAMING WIFI özellikleri ve fiyatları

ROG STRIX B650E-E GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX B650E-E GAMING WIFI

İşlemci soketi

AM5

Anakart yonga seti

AMD B650

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen Desktop Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/; 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; * Non-ECC, Un-buffered DDR5 Memory supports; On-Die ECC function

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen Desktop Processors*; 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes); AMD B650 Chipset**; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen Desktop Processors*; 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes); AMD B650 Chipset**; 1 x PCIe 4.0 x16 slot (supports x4 mode); * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

M.2 uyumluluğu ve şerit paylaşımı

Total supports 4 x M.2 slots* and 4 x SATA 6Gb/s ports; AMD Ryzen Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280; (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280; (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); AMD B650 Chipset; M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); ASMedia ASM1061 Controller**; 4 x SATA 6Gb/s ports; *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.; **RAID configuration is not supported on the SATA6G_E1-4 ports.

RAID desteği

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.; **RAID configuration is not supported on the SATA6G_E1-4 ports.

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 12 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C); 4 x USB 2.0 ports; Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band; Bluetooth v5.2; * WiFi 6E 6GHz regulatory may vary between countries.

Ses çıkışı

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback"; Audio Features; - Audio Shielding; - Savitech SV3H712 AMP; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover

Ses yongası

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x Type-C); 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C); 4 x USB 2.0 ports; 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi Module; 1 x Intel 2.5Gb Ethernet port; 5 x Audio jacks*; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button; *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; Storage related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with; Chassis intrude function; 1 x Thermal Sensor header; 1 x Thunderbolt (USB4) header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort*; 1 x HDMI port**; * Supports max. 8K@60Hz as specified in DisplayPort 1.4.; **Supports max. 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA; [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsinks; - M.2 heatsink backplate; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Clear CMOS button; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Additional Cooling Kit; 1 x Thermal pad for M.2; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties pack; 1 x M.2 Q-Latch package; 1 x ROG key chain; 1 x ROG Strix stickers; 1 x ROG Strix thank you card; 2 x Rubber Packages for M.2; Documentation; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B650E-E GAMING WIFI, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD B650, Memory: 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function, Graphics: 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1., Expansion Slots: AMD Ryzen Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes) AMD B650 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/)., Storage: Total supports 4 x M.2 slots* and 4 x SATA 6Gb/s ports AMD Ryzen Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) ASMedia ASM1061 Controller** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10. **RAID configuration is not supported on the SATA6G_E1-4 ports., Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries., USB: Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) 4 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - Audio Shielding - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C) 4 x USB 2.0 ports 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis., Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ VRM Turbo app PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 Documentation 1 x User guide, Operating System: Windows 10 64-bit, Windows 11 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB1BB0-M0AAY0
