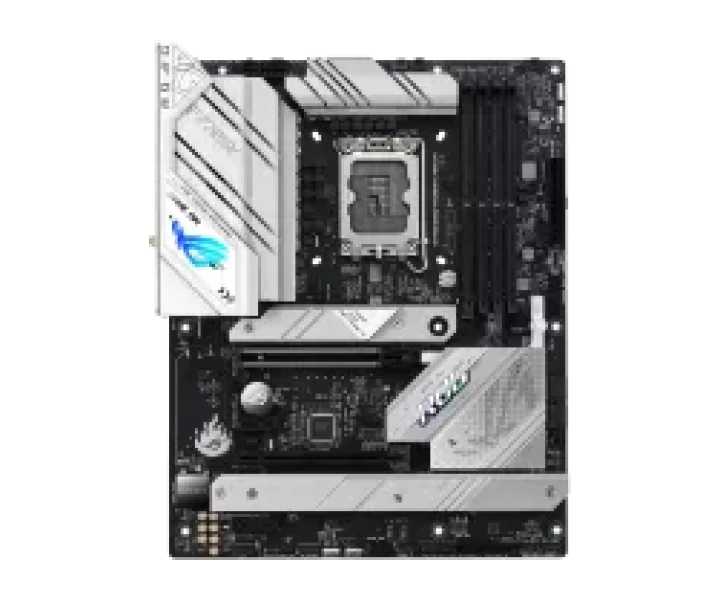

ROG STRIX B760-A GAMING WIFI D4 özellikleri ve fiyatları

ROG STRIX B760-A GAMING WIFI D4 teknik özellikleri

Model kodu

ROG STRIX B760-A GAMING WIFI D4

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B760 Chipset

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)*; 2 x PCIe 3.0 x1 slots*; * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)*; 2 x PCIe 3.0 x1 slots*; * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

RAID desteği

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 9 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 6 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; ASUS LANGuard // TUF LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.3**; * WiFi 6E 6GHz regulatory may vary between countries.; ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Ses çıkışı

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Ses yongası

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi Module; 1 x Intel 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x 20-5 pin System Panel header; 1 x Thunderbolt (USB4) header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI port***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4; *** Supports 4K@60Hz as specified in HDMI 2.1.; **** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; Additional Cooling Kit; 1 x Thermal pad for M.2; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties package; 1 x M.2 Q-Latch package; 1 x ROG Strix stickers; 1 x ROG Strix thank you card; 1 x M.2 Rubber Packages; Documentation; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B760-A GAMING WIFI D4, CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B760 Chipset, Memory: 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list., Graphics: 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots* * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10., Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications., USB: Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports, Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Dedicated audio PCB layers - Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis., Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers, Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, Accessories: Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x M.2 Rubber Packages Documentation 1 x User guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB1DD0-M0AAY0
