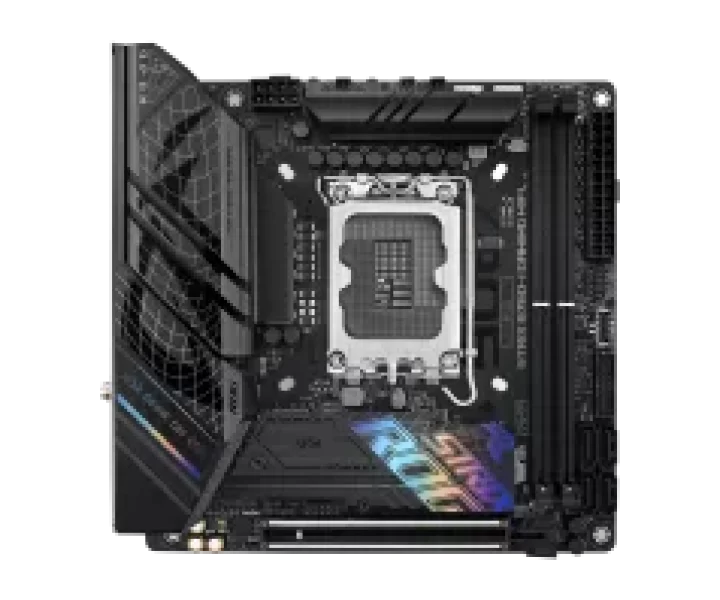

ROG STRIX B760-I GAMING WIFI özellikleri ve fiyatları

ROG STRIX B760-I GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX B760-I GAMING WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel B760 Chipset

Anakart biçimi

Mini-ITX

RAM türü

DDR5

Uyumlu işlemciler

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

Intel 14th & 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

Intel 14th & 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 14th & 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

RAID desteği

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C); 3 x USB 2.0 ports (3 x Type-A); Front USB (Total 5 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.3; * WiFi 6E 6GHz regulatory may vary between countries.

Ses çıkışı

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Premium audio capacitors; * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Ses yongası

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C); 3 x USB 2.0 ports (3 x Type-A); 1 x HDMI port; 1 x DisplayPort; 1 x Wi-Fi Module; 1 x Intel 2.5Gb Ethernet; 5 x Audio jacks

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chasis Fan header; 1 x 4-pin AIO Pump header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 headers support additional 2 USB 2.0 ports; Miscellaneous; 1 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chasis Fan header; 1 x 4-pin AIO Pump header

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort**; 1 x HDMI***; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Support 4K@60Hz as specified in DisplayPort 1.4; *** Support 4K@60Hz as specified in HDMI 2.1.

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; ASUS EZ DIY; -CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; AURA Sync; - Aura RGB header; - Addressable Gen 2 header

Boyutlar

Mini-ITX Form Factor; 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; 1 x ROG USB2.0 splitter cable; 1 x Panel cable; Additional Cooling Kit; 1 x Thermal pad for M.2; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties package; 1 x M.2 Rubber Package; 2 x Screw packages for M.2 SSD; 1 x M.2 bracket; 1 x ROG key chain; 1 x ROG STRIX stickers; 1 x ROG STRIX thank you card; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX B760-I GAMING WIFI, CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Intel B760 Chipset, Memory: 2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphics: 1 x DisplayPort** 1 x HDMI*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1., Expansion Slots: Intel 14th & 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 14th & 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10., Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 * WiFi 6E 6GHz regulatory may vary between countries., USB: Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports, Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio., Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header, Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Documentation 1 x User manual, Operating System: Windows 11 64-bit, Windows 10 64-bit, Form Factor: Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

part Number

90MB1D90-M0AAY0
