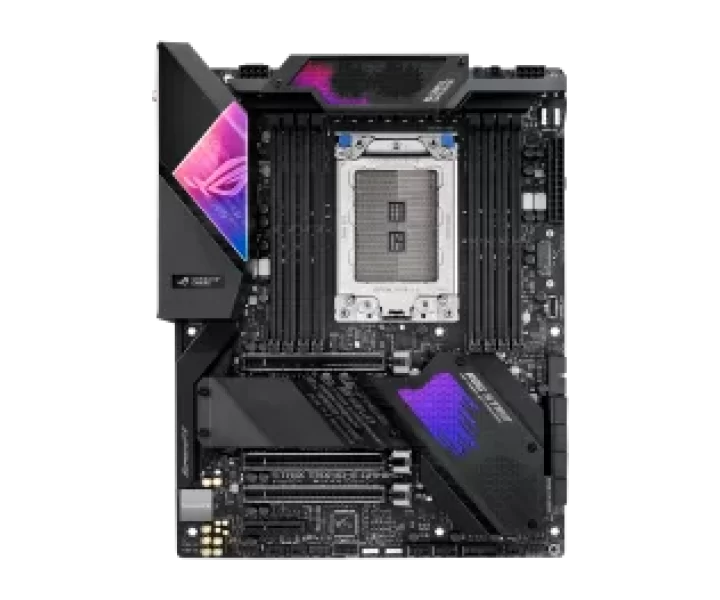

ROG Strix TRX40-E Gaming özellikleri ve fiyatları

ROG Strix TRX40-E Gaming teknik özellikleri

Model kodu

ROG Strix TRX40-E Gaming

İşlemci soketi

STRX4

Anakart yonga seti

AMD TRX40

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory; Quad Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

PCIe yuvaları

3 x PCIe 4.0 x16 (x16/x16/x16); 1 x PCIe 4.0 x4; 3rd Gen AMD Ryzen Threadripper Series Desktop processors

PCIe şerit paylaşımı ve işlemci koşulları

3 x PCIe 4.0 x16 (x16/x16/x16); 1 x PCIe 4.0 x4; 3rd Gen AMD Ryzen Threadripper Series Desktop processors

M.2 uyumluluğu ve şerit paylaşımı

2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode); 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode); 3rd Gen AMD Ryzen Threadripper Series Desktop processors :; AMD TRX40 chipset :; 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- High quality120dBSNR stereo playback output108dBSNR recording input; - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Dual OP Amplifiers; - Supports up to 32-Bit/192kHz playback; Audio Feature :; - SupremeFX Shielding Technology; - Sonic Studio III + Sonic Studio Virtual Mixer; - DTS Sound Unbound; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Diğer anakart özellikleri

- USB BIOS FlashBack; - BIOS FlashBack Button; LiveDash OLED 1.3”; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; 5-Way Optimization by Dual Intelligent Processors 5; Gamer´s Guardian:; - DRAM Overcurrent Protection; - Highly Durable components; - Digi+ VRM; - SafeSlot; - ESD Guards on LAN, Audio,and USB ports; AURA :; - Aura Lighting Control; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - Pre-mounted I/O Shield; - ASUS NODE: hardware control interface; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x Thermal sensor cable pack(s); 1 x pack of cable tie; User manual; 1 x Vertical M.2 bracket set; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x Strix door hanger; 1 x ROG Strix stickers; 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Strix TRX40-E Gaming, CPU: Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD TRX40, Memory: 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: 3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 x4 3rd Gen AMD Ryzen Threadripper Series Desktop processors, Storage: 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen Threadripper Series Desktop processors : AMD TRX40 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Realtek RTL8125-CG 2.5G LAN Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst V Technology, Wireless Data Network: Wi-Fi 802.11 ax, Bluetooth 5.0 Supports 2x2 MU-MIMO Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed, Bluetooth: Bluetooth 5.0, Audio: - High quality120dBSNR stereo playback output108dBSNR recording input - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Dual OP Amplifiers - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III, USB Ports: 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C) 3rd Gen AMD Ryzen Threadripper Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : ASMedia USB 3.2 Gen 1 controller : 8 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) (4 at mid-board), ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Overwolf, Special Features: - USB BIOS FlashBack - BIOS FlashBack Button LiveDash OLED 1.3” - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. 5-Way Optimization by Dual Intelligent Processors 5 Gamer´s Guardian: - DRAM Overcurrent Protection - Highly Durable components - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Pre-mounted I/O Shield - ASUS NODE: hardware control interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C) 1 x USB BIOS FlashBack Button(s) 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port, Internal I/O Ports: 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x Chipset Fan Header 1 x VRM_HS_FAN Header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x Speaker connector, Accessories: 1 x Thermal sensor cable pack(s) 1 x pack of cable tie User manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Strix door hanger 1 x ROG Strix stickers 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, Support Disc: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version), Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB12E0-M0AAY0
