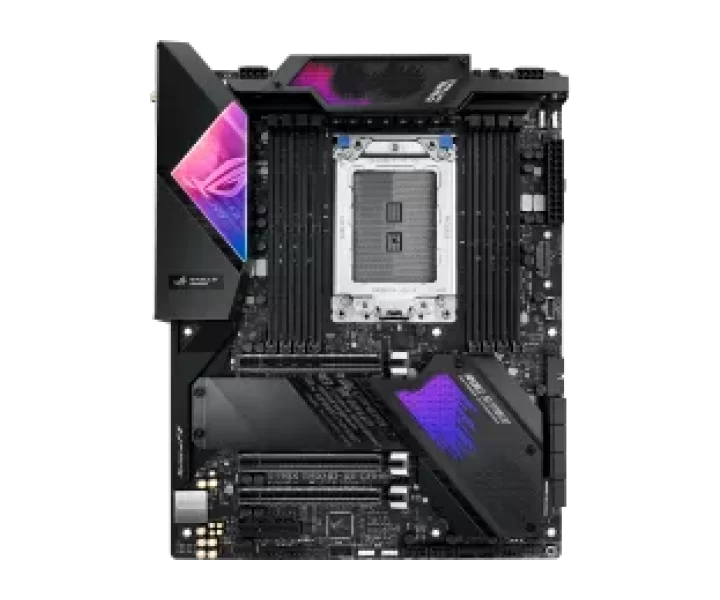

ROG STRIX TRX40-XE GAMING özellikleri ve fiyatları

ROG STRIX TRX40-XE GAMING teknik özellikleri

Model kodu

ROG STRIX TRX40-XE GAMING

İşlemci soketi

STRX4

Anakart yonga seti

AMD TRX40

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Supports CPU up to 64 cores; Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory; Quad Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

PCIe yuvaları

3 x PCIe 4.0 x16 (x16/x16/x16); 1 x PCIe 4.0 x4; 3rd Gen AMD Ryzen Threadripper Series Desktop processors

PCIe şerit paylaşımı ve işlemci koşulları

3 x PCIe 4.0 x16 (x16/x16/x16); 1 x PCIe 4.0 x4; 3rd Gen AMD Ryzen Threadripper Series Desktop processors

M.2 uyumluluğu ve şerit paylaşımı

2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode); 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode); 3rd Gen AMD Ryzen Threadripper Series Desktop processors :; AMD TRX40 chipset :; 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- High quality120dBSNR stereo playback output108dBSNR recording input; - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking; ROG SupremeFX8-Channel High Definition Audio CODEC S1220; - Dual OP Amplifiers; - Supports up to 32-Bit/192kHz playback; Audio Feature :; - SupremeFX Shielding Technology; - Sonic Studio III + Sonic Studio Virtual Mixer; - DTS Sound Unbound; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC S1220

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Diğer anakart özellikleri

- USB BIOS FlashBack; - BIOS FlashBack Button; LiveDash OLED 1.3”; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; 5-Way Optimization by Dual Intelligent Processors 5; Gamer´s Guardian:; - DRAM Overcurrent Protection; - Highly Durable components; - Digi+ VRM; - SafeSlot; - ESD Guards on LAN, Audio,and USB ports; AURA :; - Aura Lighting Control; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - Pre-mounted I/O Shield; - ASUS NODE: hardware control interface; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x Thermal sensor cable pack(s); 1 x pack of cable tie; User manual; 1 x Vertical M.2 bracket set; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x Strix door hanger; 1 x ROG Strix stickers; 1 x Q-Connector; 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX TRX40-XE GAMING, CPU: Supports CPU up to 64 cores Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD TRX40, Memory: 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: 3 x PCIe 4.0 x16 (x16/x16/x16) 1 x PCIe 4.0 x4 3rd Gen AMD Ryzen Threadripper Series Desktop processors, Storage: 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen Threadripper Series Desktop processors : AMD TRX40 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Realtek RTL8125-CG 2.5G LAN Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst V Technology, Wireless Data Network: Wi-Fi 802.11 ax, Bluetooth 5.0 Supports 2x2 MU-MIMO Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed, Bluetooth: Bluetooth 5.0, Audio: - High quality120dBSNR stereo playback output108dBSNR recording input - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Dual OP Amplifiers - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III, USB Ports: 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C) 3rd Gen AMD Ryzen Threadripper Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : ASMedia USB 3.2 Gen 1 controller : 8 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) (4 at mid-board), ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Overwolf, Special Features: - USB BIOS FlashBack - BIOS FlashBack Button LiveDash OLED 1.3” - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. 5-Way Optimization by Dual Intelligent Processors 5 Gamer´s Guardian: - DRAM Overcurrent Protection - Highly Durable components - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Pre-mounted I/O Shield - ASUS NODE: hardware control interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Back I/O Ports: 8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C) 1 x USB BIOS FlashBack Button(s) 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port, Internal I/O Ports: 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x Chipset Fan Header 1 x VRM_HS_FAN Header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x Speaker connector, Accessories: 1 x Thermal sensor cable pack(s) 1 x pack of cable tie User manual 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Strix door hanger 1 x ROG Strix stickers 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2, Support Disc: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version), Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

part Number

90MB14M0-M0AAY0
