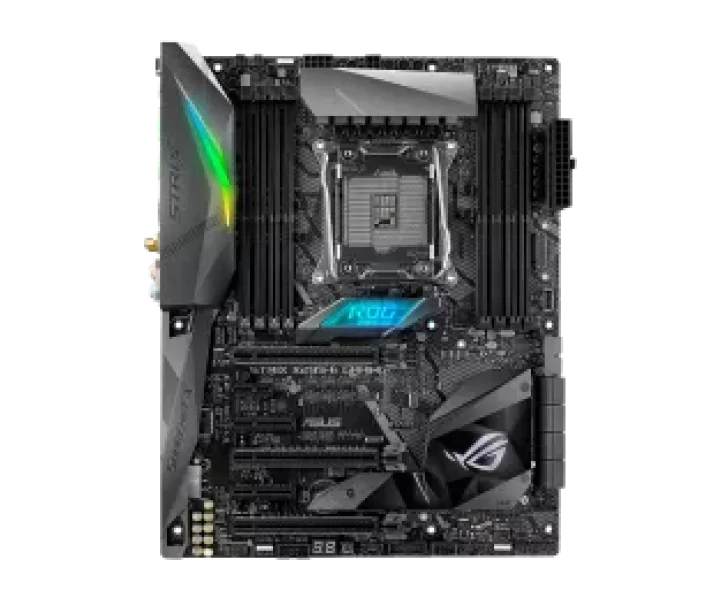

ROG STRIX X299-E GAMING özellikleri ve fiyatları

ROG STRIX X299-E GAMING teknik özellikleri

Model kodu

ROG STRIX X299-E GAMING

İşlemci soketi

Intel Socket 2066

Anakart yonga seti

Intel X299

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Optimized for Intel Core X-Series 10000 Processor Family; Intel Socket 2066 Core X-Series Processors; * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Intel Core X-series Processors (4-core); * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

256 GB

PCIe yuvaları

3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1); Intel Core X-Series Processors Family; 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1); 2 x PCIe 3.0 x4 (max at x4 mode) *1; 16-Lane CPU-; 44-Lane CPU-; 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8); 28-Lane CPU-; 1 x PCIe 3.0/2.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1); Intel Core X-Series Processors Family; 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1); 2 x PCIe 3.0 x4 (max at x4 mode) *1; 16-Lane CPU-; 44-Lane CPU-; 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8); 28-Lane CPU-; 1 x PCIe 3.0/2.0 x1

M.2 uyumluluğu ve şerit paylaşımı

Supports Intel Smart Response Technology, Intel Rapid Start Technology; Intel Core X-Series Processors Family :; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode); 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 8 x SATA 6Gb/s port(s); Support Raid 0, 1, 5, 10; Intel Optane Memory Ready

RAID desteği

Support Raid 0, 1, 5, 10

Ses çıkışı

- High quality120dBSNR stereo playback outputand113dBSNR stereo playback input; - Sonic Studio III; SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual Headphone Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - SupremeFX Shielding Technology; - Supports up to 32-Bit/192kHz playback *2; Audio Feature :; - SupremeFX Shielding Technology; - Optical S/PDIF out port(s) at back panel; - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity; - Sonic Radar III

Ses yongası

SupremeFX8-Channel High Definition Audio CODEC S1220A

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,; ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Diğer anakart özellikleri

- ASUS USB BIOS FlashBack; - USB BIOS FlashBack; ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App; - Onboard Button : Power; OC Design - ASUS PRO Clock II Technology; AURA :; - Aura Lighting Control; - Aura RGB Strip Headers; - Aura Lighting Effects Synchronization with compatible ASUS ROG devices; - Aura Addressable Strip Header(s); ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface; ASUS EZ DIY :; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - Multi-language BIOS; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector; Gaming Aesthetics :; - 3D printing friendly; - AURA-RGB Lighting; M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

1 x Thermal sensor cable pack(s); ROG Fan Label; 1 x 3D printing mount package; 1 x 10-in-1 ROG cable label; 1 x ROG Door Hanger(s); ASUS Q-Shield; 1 x Vertical M.2 bracket set; 1 x SLI HB BRIDGE(2-WAY-M); 1 x M.2 screw kit (long screw and mount); User´s manual; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x Q-Connector; 1 x Cable ties pack(s); 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX X299-E GAMING, CPU: Optimized for Intel Core X-Series 10000 Processor Family Intel Socket 2066 Core X-Series Processors * The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list, Chipset: Intel X299, Memory: 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel Core X-series Processors (4-core) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1) Intel Core X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) *1 16-Lane CPU- 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 28-Lane CPU- 1 x PCIe 3.0/2.0 x1, Storage: Supports Intel Smart Response Technology, Intel Rapid Start Technology Intel Core X-Series Processors Family : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready, LAN: ROG GameFirst IV Intel I219V Anti-surge LANGuard, Wireless Data Network: Wi-Fi 802.11 a/b/g/n/ac, Bluetooth: Bluetooth V4.2, Audio: - High quality120dBSNR stereo playback outputand113dBSNR stereo playback input - Sonic Studio III SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III, USB Ports: 8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 4 at mid-board) 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) Intel X299 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board), ROG Exclusive Features: ROG RAMCache II ROG CloneDrive GameFirst IV ROG CPU-Z Overwolf ROG Aura, Special Features: - ASUS USB BIOS FlashBack - USB BIOS FlashBack ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App - Onboard Button : Power OC Design - ASUS PRO Clock II Technology AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds), Back I/O Ports: 2 x USB 3.2 Gen 2 Type-A + USB Type-CTM, 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button(s) 4 x USB 3.2 Gen 1 (blue) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS) 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s), Internal I/O Ports: 1 x AAFP connector 1 x CPU_OV jumper 1 x Aura Addressable Strip Header(s) 1 x VROC_HW_Key 1 x System panel(s) (Q-Connector) 1 x USB 3.1 Gen 2 front panel connector 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s), Accessories: 1 x Thermal sensor cable pack(s) ROG Fan Label 1 x 3D printing mount package 1 x 10-in-1 ROG cable label 1 x ROG Door Hanger(s) ASUS Q-Shield 1 x Vertical M.2 bracket set 1 x SLI HB BRIDGE(2-WAY-M) 1 x M.2 screw kit (long screw and mount) User´s manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Q-Connector 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED, BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE, Support Disc: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version), Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: 1. PCIEX4_1 max. at x1 mode 2. Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio

part Number

90MB0U50-M0AAY0
