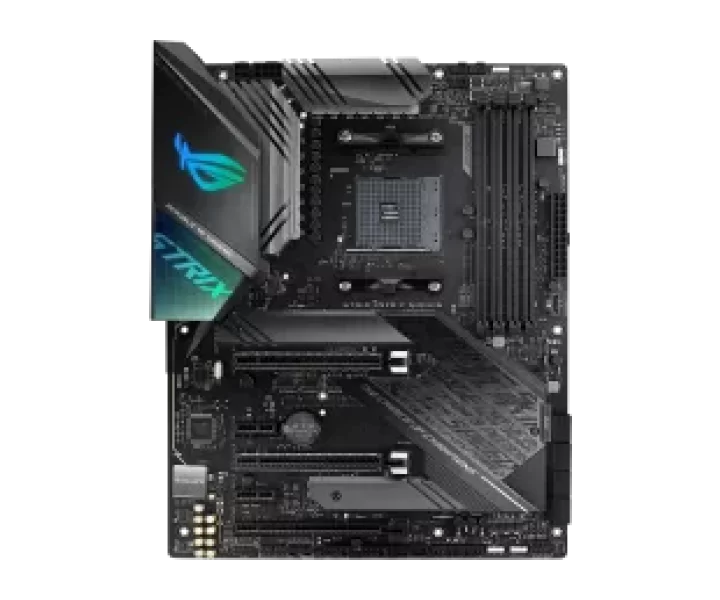

ROG Strix X570-F Gaming özellikleri ve fiyatları

ROG Strix X570-F Gaming teknik özellikleri

Model kodu

ROG Strix X570-F Gaming

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory; 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *; AMD RyzenTM 4000 G-Series Processors; AMD RyzenTM 2000 Series Processors; 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *; 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

128 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD RyzenTM 4000 G-Series / 2000 Series Processors; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; 2 x PCIe 4.0 x16 (x16 or dual x8); 2 x PCIe 3.0 x16 (x16 or dual x8); 1 x PCIe 3.0 x16 (x8 mode); AMD X570 chipset; 1 x PCIe 4.0 x16 (max at x4 mode) *1; 2 x PCIe 4.0 x1

PCIe şerit paylaşımı ve işlemci koşulları

AMD RyzenTM 4000 G-Series / 2000 Series Processors; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; 2 x PCIe 4.0 x16 (x16 or dual x8); 2 x PCIe 3.0 x16 (x16 or dual x8); 1 x PCIe 3.0 x16 (x8 mode); AMD X570 chipset; 1 x PCIe 4.0 x16 (max at x4 mode) *1; 2 x PCIe 4.0 x1

M.2 uyumluluğu ve şerit paylaşımı

AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support; 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support; AMD X570 chipset :; 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support; 8 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - SupremeFX Shielding Technology; - Supports up to 32-Bit/192kHz playback *2; Audio Feature :; - Optical S/PDIF out port(s) at back panel; - Sonic Radar III; - Sonic Studio III + Sonic Studio Link

Ses yongası

SupremeFX8-Channel High Definition Audio CODEC S1220A

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.

Diğer anakart özellikleri

- USB BIOS FlashBack; - BIOS FlashBack Button; 5-Way Optimization by Dual Intelligent Processors 5; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; TPU; - Auto Tuning, TurboV, GPU Boost; Gamer´s Guardian:; - DRAM Overcurrent Protection; - Stainless Steel Back I/O; - Highly Durable components; - Digi+ VRM; - SafeSlot; - ESD Guards on LAN, Audio,and USB ports; ASUS EPU :; - EPU; AURA :; - Aura Lighting Control; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; - ASUS NODE : hardware control interface; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; Gaming Aesthetics :; - AURA-RGB Lighting

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

User´s manual; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x Strix door hanger; 1 x ROG Strix stickers; 1 x Cable ties pack(s); 1 x Extension Cable for RGB strips (80 cm); 1 x Extension cable for Addressable LED; 1 x Thermistor cable(s); 1 x ROG Thank you card

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Strix X570-F Gaming, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD X570, Memory: 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * AMD RyzenTM 4000 G-Series Processors AMD RyzenTM 2000 Series Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: Integrated Graphics in AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz, Multi-GPU Support: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> AMD Ryzen 3000 G-Series/ 2000 G-Series Desktop Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD Ryzen 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1, Storage: AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10, LAN: Intel I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology, Audio: SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link, USB Ports: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board), ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Overwolf, Special Features: - USB BIOS FlashBack - BIOS FlashBack Button 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer´s Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable components - Digi+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS NODE : hardware control interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting, Back I/O Ports: 1 x USB BIOS FlashBack Button(s) 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port, Internal I/O Ports: 1 x AAFP connector 1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports, Accessories: User´s manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2., Manageability: WOL, PXE, Support Disc: Overwolf Anti-virus software (OEM version) WinRAR, Operating System: Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

part Number

90MB1160-M0AAY0
