ROG Strix X570-I Gaming özellikleri ve fiyatları

ROG Strix X570-I Gaming teknik özellikleri

Model kodu

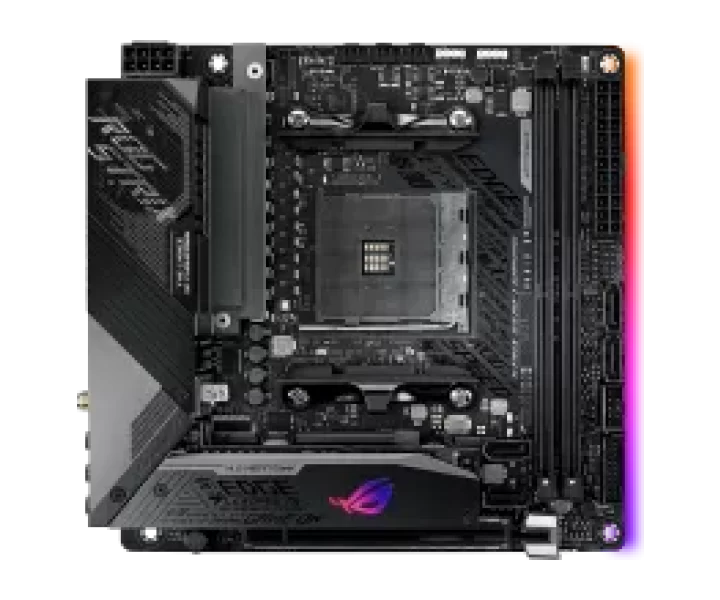

ROG Strix X570-I Gaming

İşlemci soketi

AM4

Anakart yonga seti

AMD X570

Anakart biçimi

Mini-ITX

RAM türü

DDR4

Uyumlu işlemciler

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; AMD RyzenTM 4000 G-Series Processors; AMD RyzenTM 2000 Series Processors; 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *; 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

64 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD RyzenTM 4000 G-Series / 2000 Series Processors; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; 1 x PCIe 4.0 x16 (x16 mode); 1 x PCIe 3.0 x16 (x16 mode); 1 x PCIe 3.0 x16 (x8 mode)

PCIe şerit paylaşımı ve işlemci koşulları

AMD RyzenTM 4000 G-Series / 2000 Series Processors; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; AMD RyzenTM 3000 G-Series / 2000 G-Series Processors; 1 x PCIe 4.0 x16 (x16 mode); 1 x PCIe 3.0 x16 (x16 mode); 1 x PCIe 3.0 x16 (x8 mode)

M.2 uyumluluğu ve şerit paylaşımı

AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :; AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :; 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; AMD X570 chipset :; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

RAID desteği

Support Raid 0, 1, 10

Ses çıkışı

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; SupremeFX8-Channel High Definition Audio CODEC S1220A; - Dual OP Amplifiers; - Impedance sense for front and rear headphone outputs; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality120dBSNR stereo playback outputand113dBSNR recording input; - Supports up to 32-Bit/192kHz playback *2; Audio Feature :; - DTS Sound Unbound; - Sonic Radar III; - Sonic Studio III + Sonic Studio Virtual Mixer

Ses yongası

SupremeFX8-Channel High Definition Audio CODEC S1220A

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.

Diğer anakart özellikleri

5-Way Optimization by Dual Intelligent Processors 5; - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.; TPU; - Auto Tuning, TurboV, GPU Boost; ASUS EPU :; - EPU; AURA :; - Aura Lighting Control; - Addressable Gen 2 Header; ASUS Exclusive Features :; - AI Suite 3; - Ai Charger; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

Boyutlar

Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Kutu içeriği

1 x AAFP Extension Cable; 1 x Panel cable; 2 x M.2 Screw Package; User´s manual; 4 x SATA 6Gb/s cable(s); 1 x Supporting DVD; 1 x ROG Strix stickers; 1 x M.2 bracket; 1 x Cable ties pack(s); 1 x Wi-Fi Antenna(s); 1 x Extension cable for Addressable LED; 1 x ROG Thank you card; I/O Shield

Üreticinin ayrıntılı teknik bilgileri

Model: ROG Strix X570-I Gaming, CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list, Chipset: AMD X570, Memory: 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * AMD RyzenTM 4000 G-Series Processors AMD RyzenTM 2000 Series Processors 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphic: Integrated Graphics in AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors - Support DisplayPort 1.4 with max. resolution 8K 7680 × 4320 @60Hz Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz, Expansion Slots: AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD Ryzen 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode), Storage: AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD X570 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, LAN: Anti-surge LANGuard ROG GameFirst Technology Intel I211-AT, Wireless Data Network: Supports channel bandwidth: HT20/HT40/HT80/HT160 Intel Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed, Bluetooth: Bluetooth 5.0, Audio: - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. SupremeFX8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - DTS Sound Unbound - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer, USB Ports: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C) 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) 2 x USB 2.0 port(s) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board), ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V, Special Features: 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED), Back I/O Ports: 4 x USB 3.2 Gen 1 (blue) 3 x LED-illuminated audio jacks 1 x DisplayPort 1 x HDMI 1 x ASUS Wi-Fi Module 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port, Internal I/O Ports: 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x HS_FAN 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x PCH_FAN 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x T_Sensor Connector 1 x Speaker connector, Accessories: 1 x AAFP Extension Cable 1 x Panel cable 2 x M.2 Screw Package User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card I/O Shield, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2., Manageability: WOL, PXE, Support Disc: Overwolf Anti-virus software (OEM version) WinRAR, Operating System: Windows 10 64-bit, Form Factor: Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ), Note: *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

part Number

90MB1140-M0AAY0
