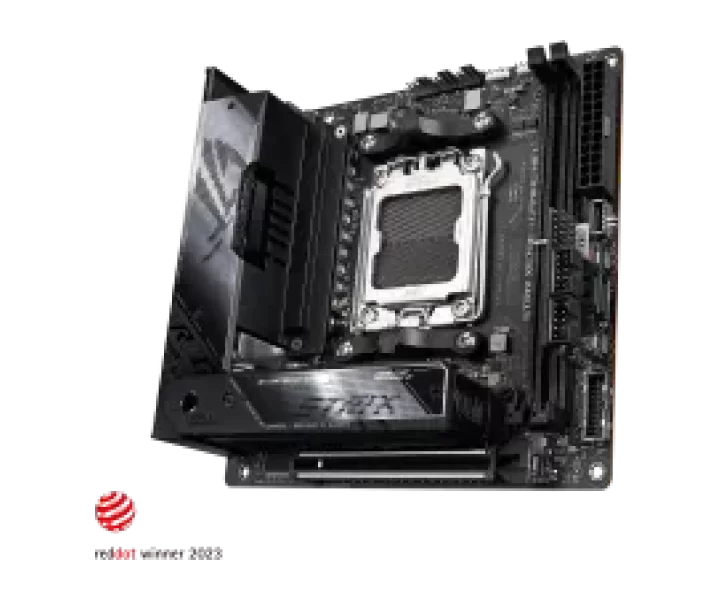

ROG STRIX X670E-I GAMING WIFI özellikleri ve fiyatları

ROG STRIX X670E-I GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX X670E-I GAMING WIFI

İşlemci soketi

AM5

Anakart yonga seti

AMD X670

Anakart biçimi

Mini-ITX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

RAM yuvası sayısı

2

Desteklenen en yüksek RAM

96 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot(s)

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot(s)

M.2 uyumluluğu ve şerit paylaşımı

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode); AMD X670 Chipset; M.2_2 slot (Key M), type 2242/2260/2280; (supports PCIe 4.0 x4 mode); 2 x SATA 6Gb/s ports****; *AMD RAIDXpert2 Technology supports both; NVMe RAID 0/1 and SATA RAID 0/1.; **** Install ROG FPS-II Card to support 2 x; SATA 6Gb/s ports

RAID desteği

*AMD RAIDXpert2 Technology supports both; NVMe RAID 0/1 and SATA RAID 0/1.

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

2

USB bağlantısı

Rear USB (Total 10 ports); 2 x USB4 port(s) with Intel JHL8540 USB4; controller (2 x USB Type-C); 5 x USB 3.2 Gen 2 port(s) (5 x Type-A); 3 x USB 2.0 port(s) (3 x Type-A); Front USB (Total 3 ports); 1 xUSB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s); additional 2 USB 3.2 Gen 1 ports; ROG STRIX HIVE (Total 2 ports); 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C); 1 x USB 2.0 port(s) (1 x Type-A); ROG FPS-II C (Total 3 ports); 2 x USB 2.0 header(s) additional 3 USB 2.0; ports**

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet; ASUS LANGuard

Wi-Fi

Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band*; Bluetooth v5.2; * WiFi 6E 6GHz regulatory may vary between; countries, and function will be ready in Windows 11 or later.

Ses çıkışı

ROG High Definition Audio CODEC ALC4050; - Supports: Jack-detection; - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features; - ROG Hyper-Grounding Technology; - ESS SABRE9260Q DAC; - Silver-plated audio jacks; - Optical S/PDIF out port & USB Type-C port with indepent power solution; - Dedicated audio PCB layers; *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE

Ses yongası

ROG High Definition Audio CODEC ALC4050

Arka panel bağlantıları

2 x USB4 port(s) with Intel JHL8540 USB4; controller (2 x USB Type-C); 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1; port supports ROG STRIX HIVE); 3 x USB 2.0 port(s) (3 x Type-A); 1 x HDMI port; 1 x Wi-Fi Module; 1 x Intel I225-V 2.5Gb Ethernet port

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x 4-pin Chassis Fan header(s); Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); USB; 1 x USB 3.2 Gen 2 connector (support(s) USB; Type-C ); 1 x USB 3.2 Gen 1 header(s) support(s); additional 2 USB 3.2 Gen 1 ports; Miscellaneous; 1 x Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x RTC Battery header; 1 x Thermal Sensor header; 1 x 2 pin Power_BTN header; 2 x USB Type-C connectors to Install ROG; FPS-II card*; ROG FPS-II card; 2 x SATA 6Gb/s ports; 1 x CPU Over Voltage jumper; 1 x Clear CMOS header; 1 x Front Panel header; 1 x Alteration mode switch; 2 x USB 2.0 header(s) support(s) additional; 3 USB 2.0 ports

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin AIO Pump header(s); 1 x 4-pin Chassis Fan header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x HDMI port*; 2 x USB4 ports support USB Type-C display; outputs**; *Supports 4K@60Hz as specified in HDMI; 2.1.; ** VGA resolution support depends on; processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; -5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - Aluminum backplate; - M.2 Chipset Fan; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 header(s); ROG STRIX HIVE; 1 x USB Type-C connects to Motherboard; 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C); 1 x USB 2.0 port(s) (1 x Type-A with BIOS; FlashBack); 1 x Headphone jack with Mic in; 1 x Mic in jack with Optical S/PDIF out; 1 x EZ mode PBO button; 1 x FlexKey button; 1 x BIOS FlashBack button; 1 x Volume Control Knob with Mute Button; Q-LED (CPU [red], DRAM [yellow], VGA; [white], Boot Device [yellow green])

Boyutlar

Mini-ITX Form Factor; 6.7 inch x 6.7 inch( 17cm x 17cm)

Kutu içeriği

Cables; 2 x SATA 6Gb/s cables; 1 x ROG USB2.0 splitter cable; 1 x Panel Cable; ROG FPS-II Card; 1 x ROG FPS-II Card; ROG STRIX HIVE; 1 x ROG STRIX HIVE; 1 x USB Type-C power connection cable; Additional Cooling Kit; 1 x Thermal pad for M.2; Miscellaneous; 1 x ASUS Wi-Fi moving antennas; 1 x Cable ties pack; 1 x Rubber Package(s) for M.2; 1 x Q-Latch package(s) for M.2; 1 x ROG key chain; 1 x ROG Strix stickers; 1 x ROG Strix thank you card; Installation Media; 1 x User guide

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX X670E-I GAMING WIFI, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD X670, Memory: 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list., Graphics: 1 x HDMI port* 2 x USB4 ports support USB Type-C display outputs** *Supports 4K@60Hz as specified in HDMI 2.1. ** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot(s), Storage: Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports**** *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports, Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard, Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later., USB: Rear USB (Total 10 ports) 2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 xUSB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports ROG STRIX HIVE (Total 2 ports) 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C) 1 x USB 2.0 port(s) (1 x Type-A) ROG FPS-II C (Total 3 ports) 2 x USB 2.0 header(s) additional 3 USB 2.0 ports**, Audio: ROG High Definition Audio CODEC ALC4050 - Supports: Jack-detection - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - ROG Hyper-Grounding Technology - ESS SABRE9260Q DAC - Silver-plated audio jacks - Optical S/PDIF out port & USB Type-C port with indepent power solution - Dedicated audio PCB layers *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE, Back Panel I/O Ports: 2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE) 3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports Miscellaneous 1 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x RTC Battery header 1 x Thermal Sensor header 1 x 2 pin Power_BTN header 2 x USB Type-C connectors to Install ROG FPS-II card* ROG FPS-II card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel header 1 x Alteration mode switch 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports, Special Features: Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - Aluminum backplate - M.2 Chipset Fan - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) ROG STRIX HIVE 1 x USB Type-C connects to Motherboard 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C) 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack) 1 x Headphone jack with Mic in 1 x Mic in jack with Optical S/PDIF out 1 x EZ mode PBO button 1 x FlexKey button 1 x BIOS FlashBack button 1 x Volume Control Knob with Mute Button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel Cable ROG FPS-II Card 1 x ROG FPS-II Card ROG STRIX HIVE 1 x ROG STRIX HIVE 1 x USB Type-C power connection cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x User guide, Operating System: Windows 11, Windows 10 64-bit, Form Factor: Mini-ITX Form Factor 6.7 inch x 6.7 inch( 17cm x 17cm)

part Number

90MB1B70-M0AAY0
