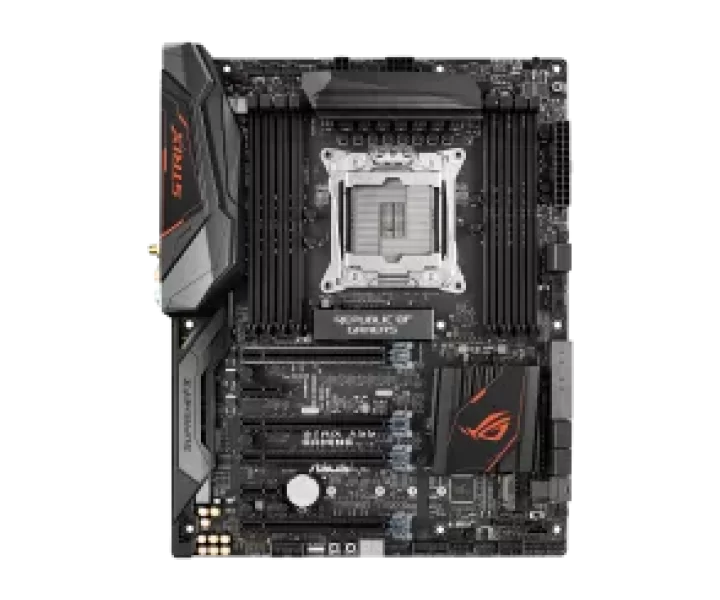

ROG STRIX X99 GAMING özellikleri ve fiyatları

ROG STRIX X99 GAMING teknik özellikleri

Model kodu

ROG STRIX X99 GAMING

İşlemci soketi

Intel Socket 2011-v3

Anakart yonga seti

Intel X99

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket 2011-v3 Core i7 X-Series Processors; Supports Intel Turbo Boost Max Technology 3.0; Supports Intel 14nm CPU; * Refer to www.asus.com for CPU support list

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory; Quad Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); * Hyper DIMM support is subject to the physical characteristics of individual CPUs.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

128 GB

PCIe yuvaları

3 x PCIe 3.0/2.0 x16 ( x16, x16/x16, x8/x16/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU); 2 x PCIe 2.0 x1 *1; 1 x PCIe 2.0 x16 (x4 mode)

PCIe şerit paylaşımı ve işlemci koşulları

3 x PCIe 3.0/2.0 x16 ( x16, x16/x16, x8/x16/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU); 2 x PCIe 2.0 x1 *1; 1 x PCIe 2.0 x16 (x4 mode)

M.2 uyumluluğu ve şerit paylaşımı

1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only); 1 x U.2 port, support PCIe 3.0 x4 NVM Express storage; 1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports; Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*2; New Intel Core i7 X-Series Processors :; Intel X99 chipset :; 8 x SATA 6Gb/s port(s),

Ses çıkışı

- Sonic Radar II; - Audio amplifier: Provides the highest-quality sound for headphone and speakers; ROG SupremeFX8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; Audio Feature :; - SupremeFX Shielding Technology; - Optical S/PDIF out port(s) at back panel; - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Ses yongası

ROG SupremeFX8-Channel High Definition Audio CODEC

BIOS özellikleri

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS,; ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Diğer anakart özellikleri

- USB BIOS FlashBack; RAMCache; - USB 3.0 Boost; - USB 3.1 Boost; - Mobo Connect; - Push Notice; - Disk Unlocker; - Ai Charger+; - MemOK!; - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App; AURA: RGB Lighting Control; 5-Way Optimization by Dual Intelligent Processors 5; Gamer´s Guardian:; - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports; - DRAM Overcurrent Protection; - Stainless Steel Back I/O; - Highly Durable components; - Digi+ VRM; ASUS Exclusive Features :; - AI Suite 3; - ESD Guards; - PC Cleaner; ASUS Quiet Thermal Solution :; - ASUS Fan Xpert 4; ASUS EZ DIY :; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; ASUS Q-Design :; - ASUS Q-Shield; - ASUS Q-Code; - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); - ASUS Q-Slot; - ASUS Q-DIMM; - ASUS Q-Connector

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Kutu içeriği

ROG Fan Label; 1 x CPU installation tool; User´s manual; I/O Shield; 4 x SATA 6Gb/s cable(s); 1 x M.2 Screw Package; 1 x Supporting DVD; 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant); 1 x Cable ties pack(s); 1 x Extension Cable for RGB strips (80 cm)

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX X99 GAMING, CPU: Intel Socket 2011-v3 Core i7 X-Series Processors Supports Intel Turbo Boost Max Technology 3.0 Supports Intel 14nm CPU * Refer to www.asus.com for CPU support list, Chipset: Intel X99, Memory: 8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Supports AMD 2-Way CrossFireX Technology, Expansion Slots: 3 x PCIe 3.0/2.0 x16 ( x16, x16/x16, x8/x16/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU) 2 x PCIe 2.0 x1 *1 1 x PCIe 2.0 x16 (x4 mode), Storage: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x U.2 port, support PCIe 3.0 x4 NVM Express storage 1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*2 New Intel Core i7 X-Series Processors : Intel X99 chipset : 8 x SATA 6Gb/s port(s),, LAN: Intel I218V, 1 x Gigabit LAN Controller(s), Wireless Data Network: Supports 2x2 MU-MIMO Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz, Bluetooth: Bluetooth V4.1, Audio: - Sonic Radar II - Audio amplifier: Provides the highest-quality sound for headphone and speakers ROG SupremeFX8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity, USB Ports: 5 x USB 3.0 port(s) (1 at back panel, blue, 4 at mid-board) 3 x USB port(s) (3 at back panel, blue) Intel X99 chipset : 2 x USB 3.1 port(s) (2 at back panel, , Type-A + USB Type-CTM) ASMedia USB 3.1 Gen 1 controller : ASMedia USB 3.1 Gen 2 controller : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board), ROG Exclusive Features: USB BIOS FlashBack ROG RAMCache GameFirst IV Overwolf, Special Features: - USB BIOS FlashBack RAMCache - USB 3.0 Boost - USB 3.1 Boost - Mobo Connect - Push Notice - Disk Unlocker - Ai Charger+ - MemOK! - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AURA: RGB Lighting Control 5-Way Optimization by Dual Intelligent Processors 5 Gamer´s Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable components - Digi+ VRM ASUS Exclusive Features : - AI Suite 3 - ESD Guards - PC Cleaner ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Operating System Support: Windows 8.1 Windows 7 Windows 10, Back I/O Ports: 1 x USB 3.2 Gen 2 (red)Type-A, 1 x USB 3.2 Gen 2 (black)USB Type-CTM 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button(s) 4 x USB 3.2 Gen 1 (blue) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0 1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 5 x Audio jack(s), Internal I/O Ports: 1 x COM port header 1 x AAFP connector 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only) 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports 1 x DRCT header(s) 1 x High AMP Fan header (4-pin) 1 x ROG extension (ROG_EXT) header(s) 1 x EZ XMP switch 1 x MemOK! button(s) 1 x Thunderbolt header(s) 1 x CPU OV 1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector, Accessories: ROG Fan Label 1 x CPU installation tool User´s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm), BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information., Manageability: WfM 2.0, WOL by PME, PXE, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Note: *1 The PCIEX4_1, PCIEX1_2, and USB3.1_EC1EA2 connectors share the same bandwidth. By default, the PCIEX4_1 slot and PCIEX1_2 slot automatically run at x1 mode with USB3.1_EC1 and USB3.1_EA2 enabled for best resource optimization. *2 These functions will work depending on the CPU installed.

part Number

90MB0QK0-M0AAY0
