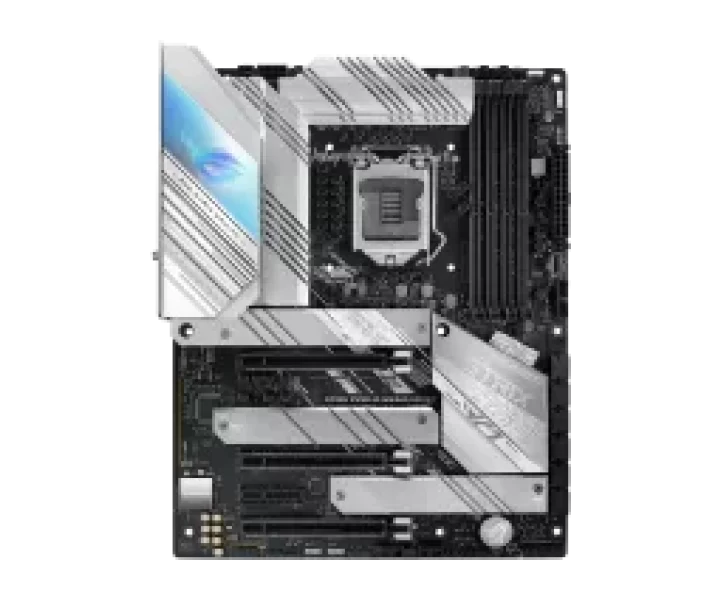

ROG STRIX Z590-A GAMING WIFI özellikleri ve fiyatları

ROG STRIX Z590-A GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX Z590-A GAMING WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Z590

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

1 x PCIe 4.0 x16 + 2 x PCIe 4.0 x16 (max. x4); Intel 11th &10th Gen Processors; 3 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s); - Intel 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s); Intel Z590 Chipset; 1 x PCIe 3.0 x4 slot; * Supports PCIe bandwidth bifurcation for RAID on CPU function.

PCIe şerit paylaşımı ve işlemci koşulları

1 x PCIe 4.0 x16 + 2 x PCIe 4.0 x16 (max. x4); Intel 11th &10th Gen Processors; 3 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s); - Intel 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s); Intel Z590 Chipset; 1 x PCIe 3.0 x4 slot; * Supports PCIe bandwidth bifurcation for RAID on CPU function.

M.2 uyumluluğu ve şerit paylaşımı

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports; Intel11th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110; - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.; Intel Z590 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**; 6 x SATA 6Gb/s ports; Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.; To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.; *When M.2_2 is operating in SATA device, SATA6G_2 will be disabled.; **When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.

RAID desteği

Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB: Total 10 ports; 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 4 x USB 3.2 Gen 2 port (4 x Type-A); 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C); 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet

Ses çıkışı

"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback"; Audio Features; - SupremeFX Shielding Technology; - ALC4080 + Savitech SV3H712 AMP; - audio jacks; - Rear audio USB Type-C port; - Premium Japanese audio capacitors; - Audio cover

Ses yongası

"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 4 x USB 3.2 Gen 2 port(s) (4 x Type-A); 5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C); 1 x HDMI port; 1 x DisplayPort; 1 x ASUS Wi-Fi Module; 1 x Intel I225-V 2.5Gb Ethernet; 5 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s); 1 x VRM heatsink Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports; Miscellaneous; 3 x AURA Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x Clear CMOS header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; 1 x Thunderbolt header; 1 x S/PDIF out header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s); 1 x VRM heatsink Fan header

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

* Graphics specifications may vary between CPU types.; ** Only Intel 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates; *** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

Extreme Engine Digi+; - 5K Black Metallic Capacitors; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 RGB header(s)

Boyutlar

ATX; 30.5cm x 24.4cm

Kutu içeriği

Cables; 1 x ROG audio USB Type-C cable; 4 x SATA 6Gb/s cables; Miscellaneous; 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas; 1 x Cable ties pack; 1 x M.2 Q-Latch package; 2 x M.2 Rubber Packages; 1 x ROG key chain; 1 x ROG STRIX sticker; 1 x ROG STRIX thank you card; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX Z590-A GAMING WIFI, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z590, Memory: DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphics: * Graphics specifications may vary between CPU types. ** Only Intel 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates *** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates., Expansion Slots: 1 x PCIe 4.0 x16 + 2 x PCIe 4.0 x16 (max. x4) Intel 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s)* - Intel 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s) - Intel 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x4 slot * Supports PCIe bandwidth bifurcation for RAID on CPU function., Storage: Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. *When M.2_2 is operating in SATA device, SATA6G_2 will be disabled. **When M.2_3 is operating in SATA device, SATA6G_6 will be disabled., Ethernet: 1 x Intel 2.5Gb Ethernet, USB: Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C) 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - audio jacks - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio cover, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C) 1 x HDMI port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header, Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s), Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS MemTest86 AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 1 x ROG audio USB Type-C cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x ROG STRIX sticker 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64bit, Form Factor: ATX 30.5cm x 24.4cm

part Number

90MB1660-M0AAY0
