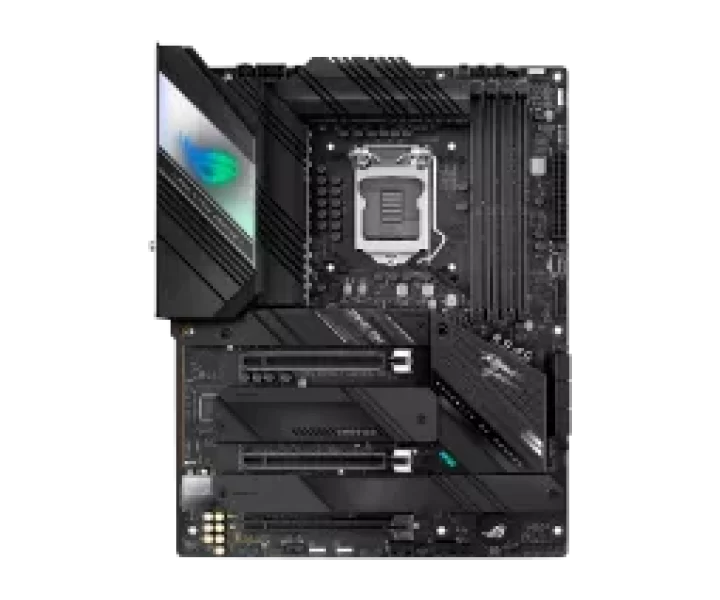

ROG STRIX Z590-F GAMING WIFI özellikleri ve fiyatları

ROG STRIX Z590-F GAMING WIFI teknik özellikleri

Model kodu

ROG STRIX Z590-F GAMING WIFI

İşlemci soketi

LGA1200

Anakart yonga seti

Z590

Anakart biçimi

ATX

RAM türü

DDR4

Uyumlu işlemciler

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel 14 nm CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Desteklenen bellek yapılandırmaları

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II; * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4); Intel 11th &10th Gen Processors; 2 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th support PCIe 4.0 x16 or x8/x4 mode(s); - Intel 10th processors support PCIe 3.0 x16 or x8/x4 mode(s); Intel Z590 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)*; * Support PCIe bandwidth bifurcation for RAID on CPU function.

PCIe şerit paylaşımı ve işlemci koşulları

2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4); Intel 11th &10th Gen Processors; 2 x PCIe 4.0/3.0 x16 slot(s)*; - Intel 11th support PCIe 4.0 x16 or x8/x4 mode(s); - Intel 10th processors support PCIe 3.0 x16 or x8/x4 mode(s); Intel Z590 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)*; * Support PCIe bandwidth bifurcation for RAID on CPU function.

M.2 uyumluluğu ve şerit paylaşımı

Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports; Intel11th &10th Gen Processors*; M.2_1 slot (Key M), type 2242/2260/2280/22110; - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; M.2_2 slot (Key M), type 2242/2260/2280/22110*; - Intel 11th processors support PCIe 4.0 x4 mode; - Intel 10th processors support PCIe 3.0 x4 mode; Intel Z590 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**; 6 x SATA 6Gb/s ports; Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.; To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.; * PCIEX16_1, PCIeX16_2 and M.2_2 share bandwidth with each other.; **When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.

RAID desteği

Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

SATA bağlantı sayısı

6

USB bağlantısı

Rear USB: Total 10 ports; 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel 2.5Gb Ethernet

Wi-Fi

2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2

Ses çıkışı

Audio Features; - SupremeFX Shielding Technology; - ALC4080 + Savitech SV3H712 AMP; - Gold-plated audio jacks; - Rear optical S/PDIF out port; - Premium Japanese audio capacitors; - Audio cover

Ses yongası

- ALC4080 + Savitech SV3H712 AMP

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x HDMI port; 1 x DisplayPort; 1 x Intel Wi-Fi 6E; 1 x Intel I225-V 2.5Gb Ethernet; 5 x Gold-plated audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x VRM heatsink Fan header; 1 x W_PUMP+ header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 4 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 3 x AURA Addressable Gen 2 headers; 1 x AURA RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; 1 x Thunderbolt header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x VRM heatsink Fan header; 1 x W_PUMP+ header

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

* Graphics specifications may vary between CPU types.; "** For Intel 11th Core i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.; Please refer to www.intel.com for any update. "; *** For Intel 11th Core i5/ i7/ i9 processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.; **** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Boyutlar

ATX; 30.5cm x 24.4cm

Kutu içeriği

Cables; 4 x SATA 6Gb/s cables; Additional Cooling Kit; 1 x Fan holder; Miscellaneous; 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas; 1 x M.2 Q-Latch package; 2 x M.2 Rubber Packages; 1 x ROG key chain; 1 x cable tie; 1 x ROG STRIX stickers; 1 x ROG STRIX thank you card; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: ROG STRIX Z590-F GAMING WIFI, CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types., Chipset: Z590, Memory: DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel Core processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Graphics: * Graphics specifications may vary between CPU types. "** For Intel 11th Core i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. Please refer to www.intel.com for any update. " *** For Intel 11th Core i5/ i7/ i9 processors, support HDMI 2.0 with max. resolution of 4K@60Hz, others would only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: 2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s)* - Intel 11th support PCIe 4.0 x16 or x8/x4 mode(s) - Intel 10th processors support PCIe 3.0 x16 or x8/x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* * Support PCIe bandwidth bifurcation for RAID on CPU function., Storage: Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th &10th Gen Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280/22110* - Intel 11th processors support PCIe 4.0 x4 mode - Intel 10th processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. * PCIEX16_1, PCIeX16_2 and M.2_2 share bandwidth with each other. **When M.2_4 is operating in SATA device, SATA6G_2 will be disabled., Ethernet: 1 x Intel 2.5Gb Ethernet, Wireless & Bluetooth: 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2, USB: Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Audio: Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Intel Wi-Fi 6E 1 x Intel I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header, Special Features:, Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software - AIDA64 Extreme (60 days free trial) ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Fan holder Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64bit, Form Factor: ATX 30.5cm x 24.4cm

part Number

90MB1630-M0AAY0
